TAILLIGHT LICENSE LIGHT 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

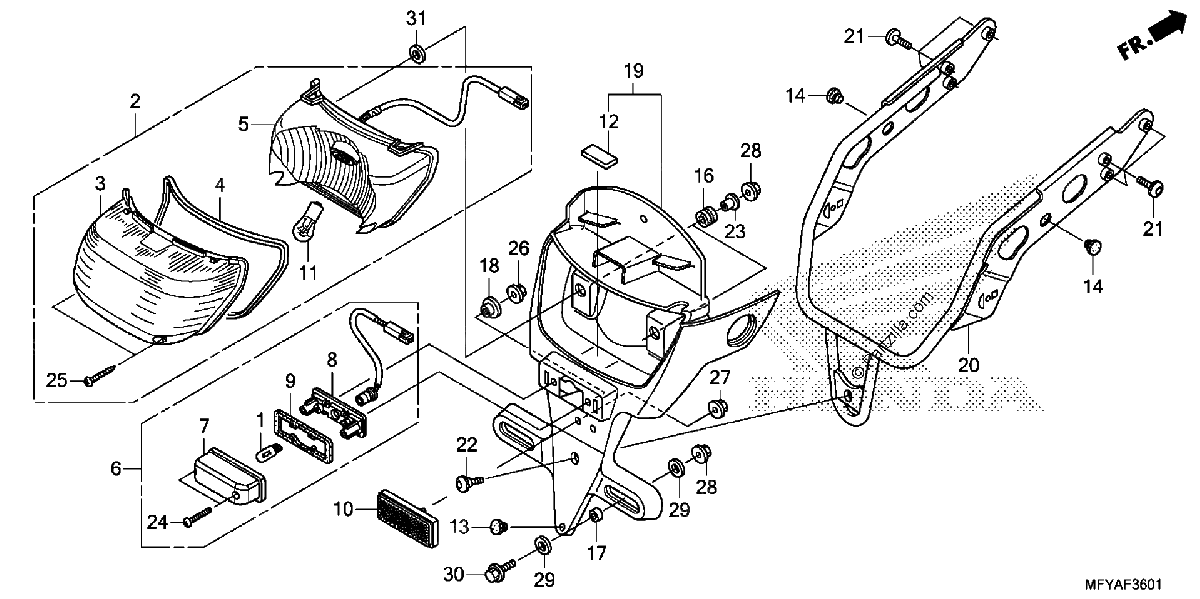

Diagrama de TAILLIGHT LICENSE LIGHT 2

Repuestos

#1
33301-SA0-741
BULB (12V 5W) (STANLEY)
$4.24¢2 122
1
#2
33701-MFW-003
TAILLIGHT ASSY. (12V 21/5W) (IMASEN)
$123.02¢61 508
1
#3
33702-MFE-305
LENS, TAILLIGHT (COO)
$27.12¢13 558
1
#3
33702-MFE-671
LENS, TAILLIGHT
$27.12¢13 558
1
#4
33703-MFE-671
GASKET, TAILLIGHT
$5.19¢2 593
1
#5
33707-MFW-003
BASE, TAILLIGHT
$48.13¢24 064
1
#6
33720-MFW-003
LIGHT ASSY., LICENSE (12V 5W)
$107.71¢53 854
1
#7
33721-GET-671
COVER, LICENSE
$22.64¢11 322
1
#8
33723-MCZ-671
BASE, LICENSE
$24.33¢12 167
1
#9
33729-MCZ-003
GASKET, LENS
$11.21¢5 606
1
#10
33741-MS6-921
REFLECTOR, REFLEX (STANLEY)
$16.31¢8 153
1
#11
34906-447-711
BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY)
$10.09¢5 043
1
#12
50283-KSC-300
RUBBER, BATTERY
$1.60¢799
1
#13
50352-GS6-000
RUBBER, LINK STOPPER
$5.04¢2 519
1
#14
77212-965-000
RUBBER, SEAT SIDE
$5.51¢2 754
1
#16
80101-310-000
RUBBER, RR. FENDER CUSHION
$2.42¢1 208
1
#17
80104-065-000
COLLAR, TAILLIGHT
$3.36¢1 679
1
#18
80114-KG7-000
COLLAR, RR. FENDER
$5.07¢2 536
1
#19
80115-MFW-A00
FENDER ASSY. A, RR.
$33.79¢16 894
1
#20
80132-MFW-A00
STAY, Rear FENDER
$326.83¢163 415
1
#21
90118-MR1-000
SCREW, PAN (6X14)
$3.45¢1 725
1
#22
90124-MY6-670
SCREW, PAN (6X13)
$3.09¢1 547
1
#23
90502-GG2-000
COLLAR, RR. FENDER
$6.41¢3 203
1
#24
93901-24480
SCREW, TAPPING (4X16)
$0.98¢489
1
#25
93901-347G0
SCREW, TAPPING (4X30)
$2.62¢1 311
1
#26
94050-05000
NUT, FLANGE (5MM)
$1.54¢771
1
#27
94050-05070
NUT, FLANGE (5MM)
$1.53¢765
1
#28
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#29
94103-06000
WASHER, PLAIN (6MM)
$1.17¢586
1
#30
95701-06016-00
BOLT, FLANGE (6X16)
$1.92¢960
1
#31
90473-896-000
WASHER (6MM)
$2.28¢1 138
1
