RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

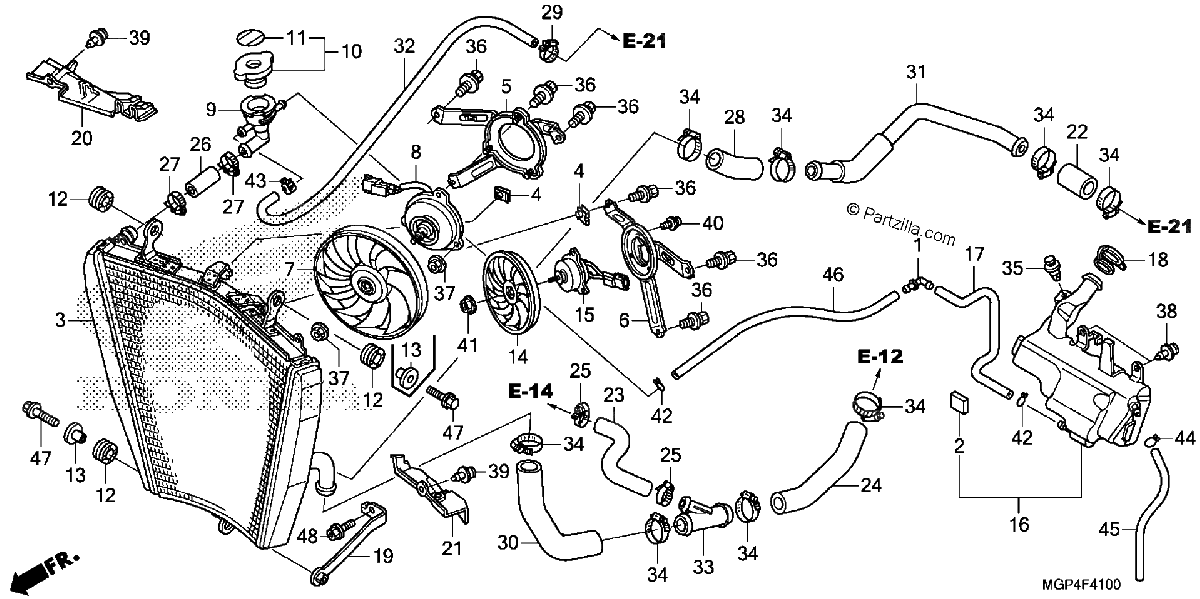

Diagrama de RADIATOR

Repuestos

#1
17357-GE1-670
JOINT A, BREATHER
$7.30¢3 650
1
#2
17525-GBC-300
RUBBER, FUEL TANK
$2.52¢1 263
1
#3
19010-MGP-305
RADIATOR (COO)
$1507.54¢753 769
1
#4
19014-KEA-003
NUT, SETTING (6MM)
$3.75¢1 875
1
#5
19015-MFL-D21
SHROUD, R.
$60.38¢30 188
1
#6
19016-MFL-003
SHROUD, L.
$58.91¢29 456
1
#7
19020-MFA-D01
FAN, COOLING
$52.41¢26 206
1
#8
19030-MFL-D21
MOTOR ASSY., FAN
$337.30¢168 650
1
#9
19035-MFL-003
NECK, FILLER
$22.65¢11 325
1
#10
19037-GEE-710
CAP, RADIATOR
$35.16¢17 581
1
#11
19046-PAA-A00
LABEL, RADIATOR CAP
$3.65¢1 825
1
#12
19051-KA3-830
RUBBER, RADIATOR MOUNTING
$4.01¢2 006
1
#13
19052-MAC-680
COLLAR, RADIATOR MOUNTING
$6.23¢3 113
1
#14
19070-MFL-003
FAN, COOLING
$43.59¢21 794
1
#15
19080-MFL-003
MOTOR ASSY., FAN
$252.93¢126 463
1
#16
19101-MGP-305
TANK, RADIATOR RESERVE (COO)
$64.16¢32 081
1
#17
19106-MFL-000
TUBE, RESERVE TANK
$7.25¢3 625
1
#18
19109-KPC-640
CAP, RESERVE TANK
$5.83¢2 913
1
#19
19113-MFL-000
STAY, RADIATOR (LOWER)
$12.02¢6 012
1
#20
19128-MFL-010
GUARD, R. RADIATOR
$5.88¢2 938
1
#21
19129-MFL-000
GUARD, L. RADIATOR
$5.88¢2 938
1
#22
19502-MFJ-D00
HOSE, R. RADIATOR (UPPER)
$4.76¢2 381
1
#23
19502-MFL-000
HOSE, OIL COOLER
$13.24¢6 619
1
#24
19503-MFL-000
HOSE A, RADIATOR
$20.09¢10 044
1
#25
19504-KY1-003
CLAMP, WATER HOSE (25MM)
$12.04¢6 019
1
#26
19504-MFL-000
HOSE, FILLER NECK
$7.38¢3 688
1
#27
19505-KS6-700
CLAMP A, WATER HOSE
$14.94¢7 469
1
#28
19505-MFL-000
HOSE A, WATER
$21.63¢10 813
1
#29
19507-MAT-000
CLAMP, RADIATOR HOSE
$12.49¢6 244
1
#30
19508-MGP-D00
HOSE B, L. RADIATOR
$33.61¢16 806
1
#31
19509-MFL-000
PIPE, WATER
$61.17¢30 588
1
#32
19511-MFL-000
TUBE, WATER
$20.82¢10 413
1
#33
19514-MFJ-D00
JOINT, HOSE (THREE-WAY)
$14.46¢7 231
1
#34
19504-MGP-000
CLAMP, WATER HOSE (35MM)
$12.11¢6 056
1
#35
90116-MCS-G00
RIVET, PUSH
$1.79¢894
1
#36
90120-GHB-601
BOLT-WASHER (6X12)
$2.48¢1 238
1
#37
90315-MK3-003
NUT, SERRATE (5MM)
$2.99¢1 494
1
#38
90683-GR1-003
CLIP, BODY COVER
$3.65¢1 825
1
#39
91549-MW0-790ZA
CLIP, PANEL FIXING *NH1* (BLACK)
$5.13¢2 563
1
#40
93891-04006-07
SCREW-WASHER (4X6)
$1.47¢737
1
#41
90315-MFL-003
NUT, FLANGE (3MM)
$2.99¢1 494
1
#41
94001-03000-0S
NUT, HEX. (3MM)
$1.34¢669
1
#42
95002-02100
CLIP, TUBE (B10)
$2.44¢1 219
1
#43
95002-41250-08
CLAMP, TUBE (D12.5)
$3.01¢1 506
1
#44
95002-50000
CLIP, TUBE (C9)
$1.54¢769
1
#45
95005-50003-30M
BULK HOSE, VACUUM (5X3000) (5X300)
$24.39¢12 194
1
#46
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$39.89¢19 944
1
#47
96001-06025-00
BOLT, FLANGE (6X25)
$2.70¢1 350
1
#48
96300-06016-00
BOLT, FLANGE (6X16)
$1.21¢606
1
