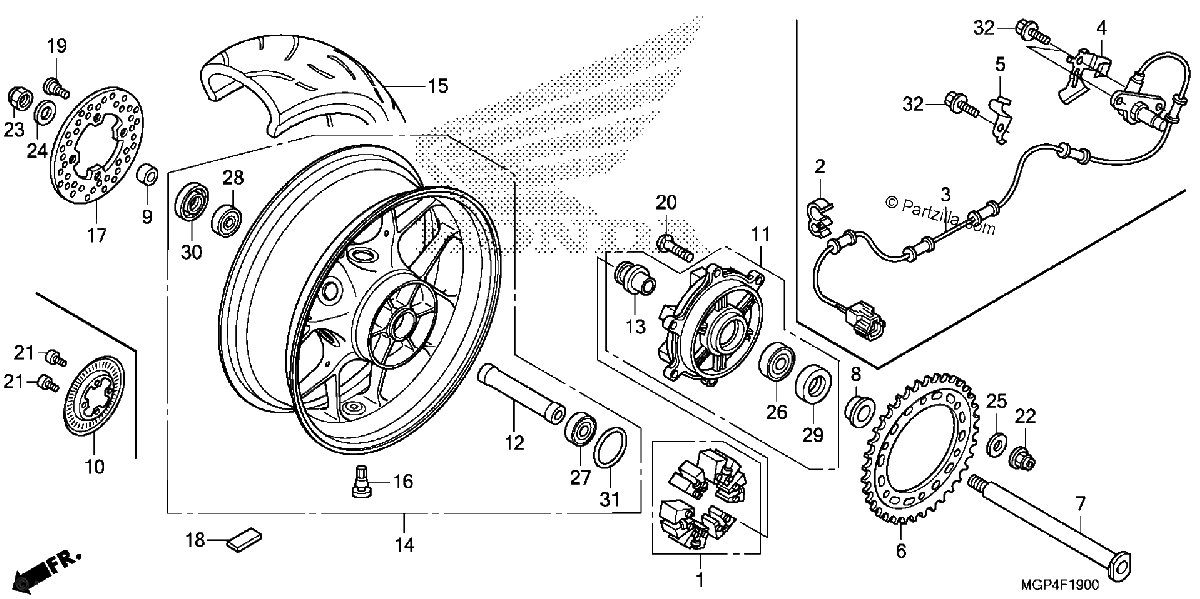

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER SET, WHEEL
$58.91¢29 457
#2
CLAMP, PIPE
$7.95¢3 973
#3
SENSOR, RR. WHEEL SPEED
$229.87¢114 937
#4
GUIDE, SENSOR WIRE
$13.97¢6 986
#5
GUIDE, SENSOR WIRE
$10.18¢5 089
#6
SPROCKET, FINAL DRIVEN (42T)
$131.13¢65 567
#7
AXLE, RR. WHEEL
$85.02¢42 510
#8
COLLAR, RR. WHEEL SIDE
$26.66¢13 328
#9
COLLAR, RR. BRAKE SIDE
$14.19¢7 095
#10
RING, RR. PULSER
$62.81¢31 406
#11
FLANGE SUB-ASSY., RR. DRIVEN
$227.04¢113 522
#12
COLLAR, RR. AXLE DISTANCE
$46.55¢23 276
#13
COLLAR B, RR. WHEEL DISTANCE
$32.84¢16 422
#14
WHEEL SUB-Assembly., Rear. NH1 (COO)(BLACK)
$1348.42¢674 210
#15
TIRE, RR. (190/50ZR17) (M/C 73W) (BS)
No Disponible
#15
TIRE, Rear. (190/50ZR17) (M/C 73W) (DUNLOP) (NOT AVAILABLE)
No Disponible
#16
VALVE, RIM (BS)
$13.60¢6 802
#16
VALVE, RIM (DUNLOP)
$13.60¢6 802
#17
DISK, RR. BRAKE
$245.61¢122 803
#18
WEIGHT, BALANCE (10G)
$5.22¢2 610
#18
WEIGHT, BALANCE (15G)
$6.22¢3 111
#18
WEIGHT, BALANCE (20G)
$6.22¢3 111
#19
BOLT, BRAKE DISK (8X24)
$4.47¢2 237
#20
BOLT (10X30)
$3.36¢1 679
#21
BOLT, TORX (5X10)
$3.36¢1 679
#22
NUT, U (10MM)
$4.83¢2 415
#23
NUT, U (22MM)
$8.58¢4 289
#23
NUT, U (22MM)
$8.58¢4 289
#24
WASHER (23X37X2.5)
$5.63¢2 818
#25
WASHER (10MM)
$3.32¢1 662
#26
BEARING, ANGULAR BALL (28X56X15)
$42.84¢21 419
#27
BEARING, RADIAL BALL (6005)
$16.03¢8 015
#28
BEARING, RADIAL BALL (6205X2)
$18.46¢9 229
#29
DUST SEAL (35X56X7.5)
$8.84¢4 422
#30
DUST SEAL (35X57X7.5)
$8.03¢4 013
#31
O-RING (51X2)
$4.21¢2 105
#32
BOLT, FLANGE (6X14)
$1.41¢707
