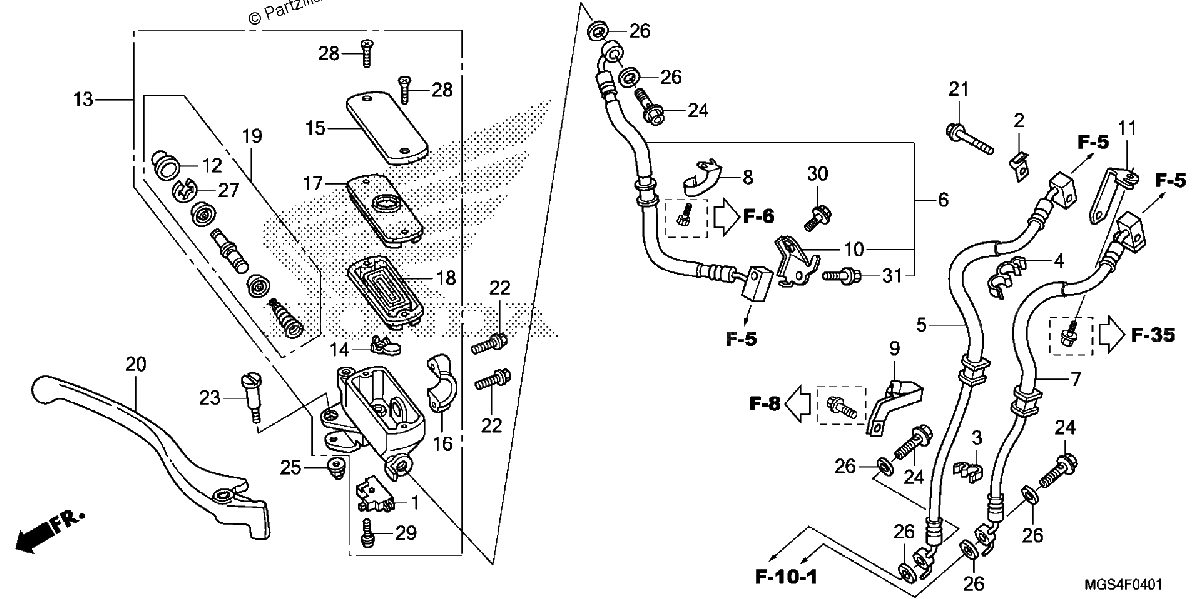

FRONT BRAKE MASTER CYLINDER NC700XA XD
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
#2
CLAMP B, SENSOR WIRE
$2.68¢1 340
#3
CLAMP, ABS WIRE (D8.5)
$3.68¢1 840
#4
CLAMP, ABS WIRE (D12)
$2.92¢1 461
#5
HOSE C, BRAKE SUB
$87.89¢43 947
#6
HOSE A, FR. BRAKE
$67.04¢33 522
#7
HOSE D, FR. BRAKE
$76.76¢38 381
#8
CLAMP A, Front BRAKE HOSE
$6.43¢3 214
#9
CLAMP B, FR. BRAKE HOSE
$12.39¢6 193
#10
STAY, FR. BRAKE HOSE
$7.03¢3 513
#11
STAY, FR. BRAKE HOSE
$7.14¢3 571
#12
BOOT
$13.10¢6 549
#13
MASTER CYLINDER SUB-Assembly., Front.(COO)
$331.44¢165 721
#14
PROTECTOR
$4.78¢2 392
#15
CAP, MASTER CYLINDER (NISSIN)
$23.94¢11 971
#16
HOLDER, MASTER CYLINDER
$14.48¢7 239
#17
PLATE, DIAPHRAGM
$11.37¢5 687
#18
DIAPHRAGM
$16.26¢8 131
#19
MASTER CYLINDER SET (NISSIN)
$30.56¢15 278
#20
LEVER, R. HANDLE (COO)
$20.03¢10 017
#21
BOLT, FLANGE (6X35)
$2.13¢1 064
#22
BOLT, FLANGE (6X22)
$1.70¢851
#23
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
#24
BOLT, OIL (10X22)
$8.18¢4 088
#25
NUT, CAP (6MM)
$2.54¢1 271
#26
WASHER, OIL BOLT
$4.46¢2 231
#27
CIRCLIP
$2.85¢1 426
#28
SCREW, FLAT (4X12)
$1.07¢535
#28
SCREW, FLAT (4X12)
$1.07¢535
#29
SCREW-WASHER (4X12)
$1.59¢793
#29
SCREW-WASHER (4X12)
$1.59¢793
#30
BOLT, FLANGE (6X14)
$1.63¢816
#31
BOLT, FLANGE (6X12)
$2.13¢1 064
