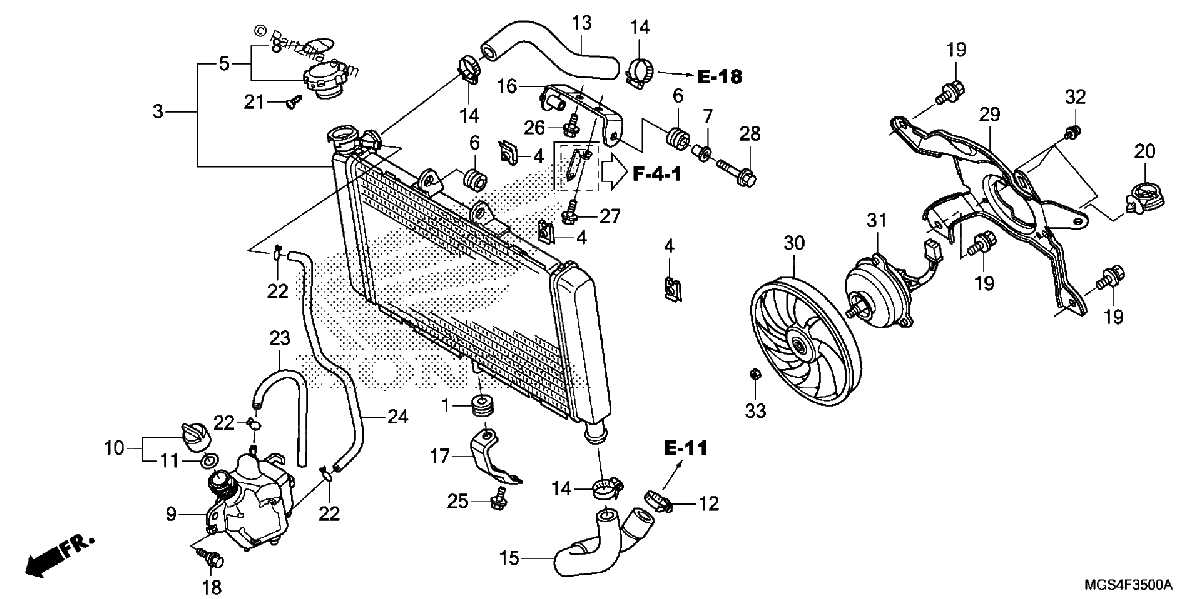

RADIATOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RUBBER, CUSHION
$5.35¢2 674
#2
SHROUD ASSY.
No Disponible
#3
RADIATOR (COO)
$1039.25¢519 627
#4
NUT, SETTING (6MM)
$3.45¢1 725
#5
CAP, RADIATOR
$43.54¢21 769
#6
RUBBER, RADIATOR MOUNTING
$2.15¢1 075
#7
COLLAR, RADIATOR MOUNTING
$2.94¢1 472
#8
SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)
$9.92¢4 962
#9
TANK, RADIATOR RESERVE
$46.02¢23 012
#10
CAP ASSY., RESERVE TANK
$7.69¢3 847
#11
GASKET, RESERVE TANK
$4.17¢2 087
#12
CLAMP, WATER HOSE (35MM)
$11.14¢5 572
#13
HOSE, RADIATOR (UPPER)
$15.50¢7 751
#14
CLAMP, WATER HOSE
$7.89¢3 944
#15
HOSE, RADIATOR (LOWER)
$27.07¢13 535
#16
STAY, RADIATOR (UPPER)
$9.86¢4 928
#17
STAY, RADIATOR (LOWER) *NH167MU* (IRON NAIL SILVER METALLIC-U)
$9.23¢4 617
#18
BOLT, FLANGE (6MM)
$3.36¢1 679
#19
BOLT-WASHER (6X12)
$2.28¢1 138
#20
CLIP, HARNESS
$3.69¢1 846
#21
SCREW, TAPPING (3X8)
$1.07¢535
#22
CLIP, TUBE (B10)
$2.24¢1 121
#23
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
#24
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
#25
BOLT, FLANGE (6X14)
$1.28¢638
#26
BOLT, FLANGE (6X14)
$1.92¢960
#27
BOLT, FLANGE (6X18)
$1.92¢960
#28
BOLT, FLANGE (6X25)
$2.13¢1 064
#29
SHROUD
$95.69¢47 846
#30
FAN, COOLING (TOYO)
$42.38¢21 189
#31
MOTOR Assembly., FAN
$255.77¢127 886
#32
SCREW-WASHER (4X6)
$1.36¢678
#33
NUT, HEX. (3MM)
$1.23¢615
