WIRE HARNESS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

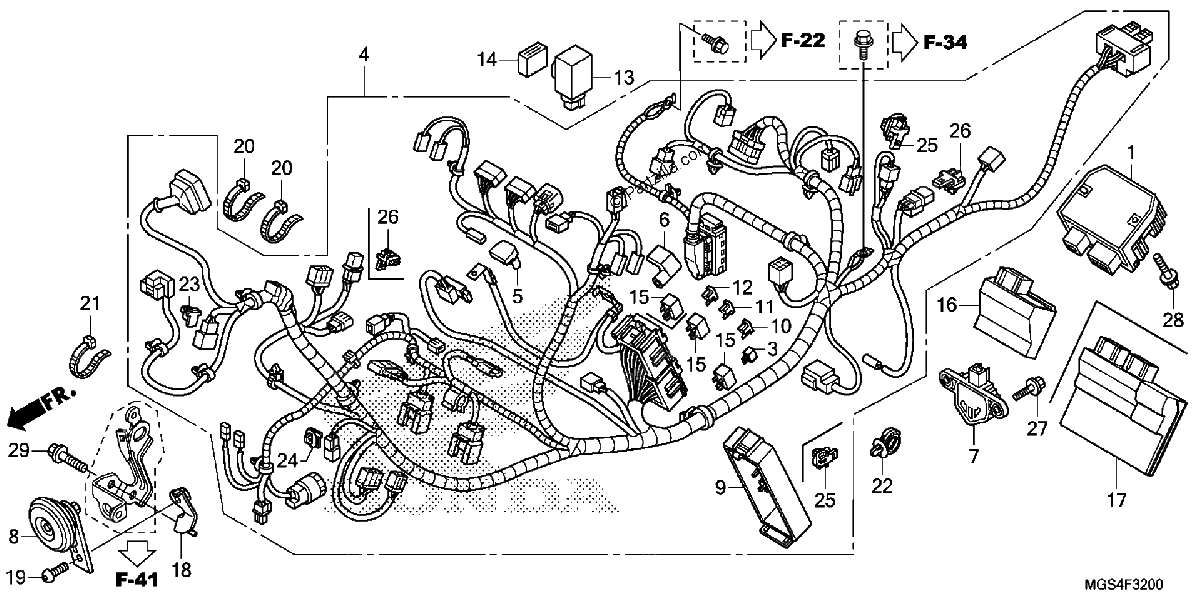

Diagrama de WIRE HARNESS

Repuestos

#1
31600-MFL-701
RECTIFIER, REGULATOR
$519.58¢259 788
1
#4
32100-MGS-A50
WIRE HARNESS
No Disponible
1
#5
32406-MGS-D31
COVER, STARTER MAGNETIC TERMINAL
$10.38¢5 188
1
#6
32411-MGS-D31
COVER, BATTERY TERMINAL
$8.53¢4 263
1
#7
35160-MGS-D31
SENSOR ASSY., BANK ANGLE
$193.17¢96 587
1
#8
38110-MEE-013
HORN (HIGH)
$45.55¢22 775
1
#9
38201-MGS-D31
COVER, POWER BOX
$13.14¢6 569
1
#10
38221-SNA-A31
FUSE, BLADE (7.5A)
$3.76¢1 881
1
#11
38221-SNA-A51
FUSE, BLADE (15A)
$4.80¢2 400
1
#12
38221-SNA-A81
FUSE, BLADE (30A)
$3.11¢1 556
1
#13
38301-MEW-921
RELAY, TURN SIGNAL (MITSUBA)
$61.92¢30 963
1
#14
38306-KK4-000
SUSPENSION, TURN SIGNAL RELAY (MITSUBA)
$3.65¢1 825
1
#15
38501-MEL-003
RELAY ASSY., POWER (MICRO ISO 4P)
$5.64¢2 819
1
#17
38770-MGS-A53
PGM-FI UNIT
$1462.46¢731 231
1
#18
50311-MGS-D31
STAY, HORN
$8.84¢4 419
1
#19
90128-MGS-D30
BOLT, SOCKET (8X16)
$3.71¢1 856
1
#20
90650-KV6-003
BAND, WIRE (95MM)
$3.77¢1 888
1
#21
90652-KT1-771
BAND, WIRE (BLACK)
$5.42¢2 713
1
#22
90683-SA0-003
CLIP, WIRE HARNESS (25MM)
$12.19¢6 094
1
#23
91533-MGS-D30
CLIP, CONNECTOR (BLACK)
$1.72¢862
1
#24
91534-SWA-003
CLIP, CONNECTOR (DARK GRAY)
$12.30¢6 150
1
#25
91535-TA0-003
CLIP, CONNECTOR (DARK BROWN)
$5.02¢2 512
1
#26
91565-SEL-003
CLIP, CONNECTOR (BLACK)
$4.45¢2 225
1
#27
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#28
95701-06022-00
BOLT, FLANGE (6X22)
$2.31¢1 156
1
#29
95701-08025-08
BOLT, FLANGE (8X25)
$0.90¢450
1
