HANDLEBAR TOP BRIDGE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

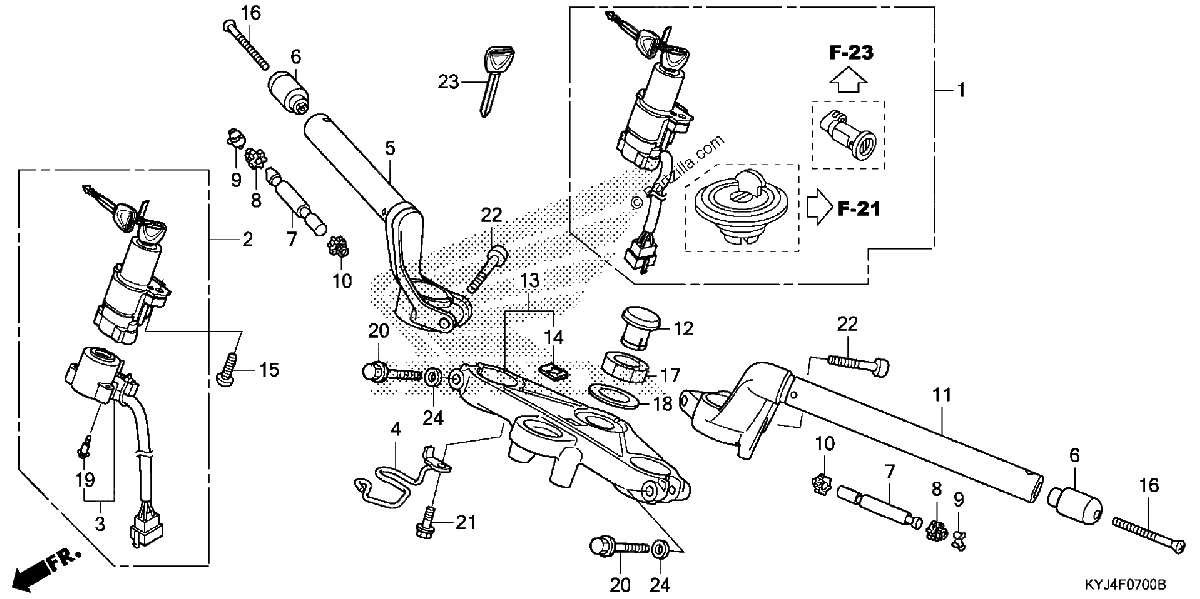

Diagrama de HANDLEBAR TOP BRIDGE

Repuestos

#1
35010-KYJ-900
LOCK SET
$310.74¢155 371
1
#2
35100-KYJ-901
SWITCH ASSY., COMBINATION LOCK
$129.16¢64 578
1
#3
35101-KYJ-901
BASE, CONTACT
$46.76¢23 379
1
#4
45158-KYJ-900
GUIDE, Front BRAKE HOSE
$6.82¢3 410
1
#5
53100-KYJ-305
HANDLEBAR, R. (COO)
$41.50¢20 752
1
#6
53103-KYJ-900
WEIGHT A, HANDLEBAR
$7.44¢3 720
1
#7
53104-KYJ-900
WEIGHT B, HANDLEBAR
$7.45¢3 726
1
#8
53107-MJ0-000
RUBBER B, HANDLE WEIGHT
$4.21¢2 105
1
#9
53108-MJ0-000
RING, HANDLE WEIGHT SNAP
$5.73¢2 864
1
#10
53109-MV4-000
RUBBER B, HANDLE WEIGHT
$3.16¢1 581
1
#11
53150-KYJ-305
HANDLEBAR, L. (COO)
$41.50¢20 752
1
#12
53232-KYJ-900
CAP, STEERING STEM
$1.77¢886
1
#13
53300-KYJ-900
BRIDGE, FORK TOP
$88.81¢44 407
1
#14
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.04¢2 018
1
#14
86150-KPG-902
EMBLEM, PRODUCT (UEHARA)
$4.75¢2 375
1
#14
86150-KTJ-C60
EMBLEM, PRODUCT (SHINKO)
$4.73¢2 363
1
#15
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.36¢1 679
1
#16
90191-KYJ-900
SCREW, OVAL (6X50)
$1.17¢586
1
#17
90304-KGA-900
NUT, STEERING STEM
$3.39¢1 696
1
#18
90503-KGA-900
WASHER, STEERING STEM
$1.77¢886
1
#19
91059-KY2-711
SCREW, TAPPING (3X16)
$3.36¢1 679
1
#20
95701-08045-07
BOLT, FLANGE (8X45)
$2.56¢1 282
1
#21
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#22
96600-08032-07
BOLT, SOCKET (8X32)
$1.66¢828
1
#23
35121-MAS-G01
KEY, BLANK
$13.60¢6 802
1
#24
94102-08000
WASHER, PLAIN (8MM)
$1.06¢529
1
