CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

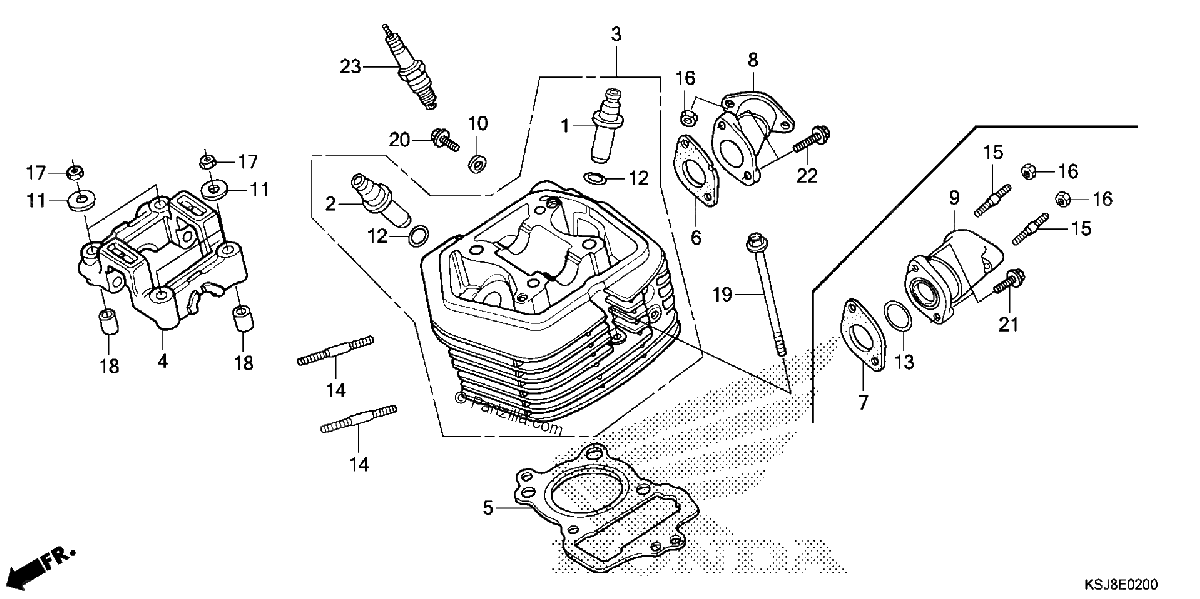

Diagrama de CYLINDER HEAD

Repuestos

#1
12021-149-300
GUIDE, IN. VALVE (OVER SIZE)
$13.76¢6 881
1
#1
12021-149-405
GUIDE, VALVE
$13.76¢6 881
1
#2
12023-116-300
GUIDE, EX. VALVE (OVER SIZE)
$21.94¢10 969
1
#2
12023-465-405
GUIDE, VALVE
$21.94¢10 969
1
#3
12200-KN4-A61
CYLINDER HEAD
$319.15¢159 575
1
#4
12210-149-020
HOLDER, CAMSHAFT
$133.35¢66 675
1
#5
12251-KN4-751
GASKET, CYLINDER HEAD
$27.40¢13 700
1
#7
16229-KN4-751
GASKET, CARBURETOR INSULATOR
$5.42¢2 713
1
#9
17110-KA8-000
PIPE, INLET
$79.11¢39 556
1
#10
90478-700-000
WASHER A (6MM)
$0.99¢494
1
#11
90483-028-000
WASHER (8MM)
$1.95¢975
1
#12
91301-200-000
O-RING (10X1.6)
$3.65¢1 825
1
#13
91301-401-000
O-RING (29.5X3)
$4.28¢2 138
1
#13
91302-436-003
O-RING (29.5X3) (ARAI)
$4.28¢2 138
1
#13
91302-436-004
O-RING (29.5X3) (NOK)
$4.28¢2 138
1
#14
92900-06020-0B
BOLT, STUD (6X20)
$2.21¢1 106
1
#15
92912-06016-0B
BOLT, STUD (6X16)
$0.90¢450
1
#16
94001-06000-0S
NUT, HEX. (6MM)
$1.68¢838
1
#16
94001-06200-0S
NUT, HEX. (6MM)
$1.68¢838
1
#17
94002-08200-0S
NUT, HEX. (8MM)
$1.68¢838
1
#18
94301-10160
PIN, DOWEL (10X16)
$2.92¢1 463
1
#19
95701-06110-00
BOLT, FLANGE (6X110)
$3.75¢1 875
1
#20
96001-06016-00
BOLT, FLANGE (6X16)
$1.35¢675
1
#21
96001-06018-00
BOLT, FLANGE (6X18)
$2.21¢1 106
1
#23
98056-56718
SPARK PLUG (CR6HSA) (NGK)
$3.13¢1 563
1
#23
98056-56726
SPARK PLUG (U20FSR-U) (DENSO)
$3.02¢1 513
1
#23
98056-57718
SPARK PLUG (CR7HSA) (NGK)
$3.13¢1 563
1
#23
98056-57726
SPARK PLUG (U22FSR-U) (DENSO)
$3.02¢1 513
1
#23
98056-58718
SPARK PLUG (CR8HSA) (NGK)
$3.13¢1 563
1
#23
98056-58726
SPARK PLUG (U24FSR-U) (DENSO)
$3.02¢1 513
1
