CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

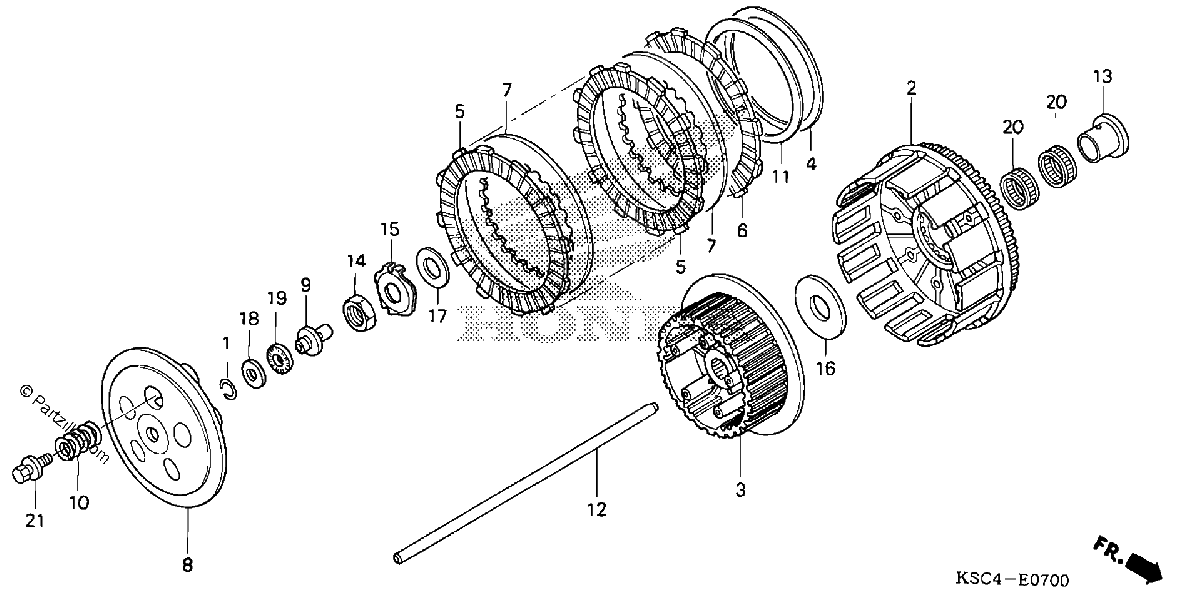

Diagrama de CLUTCH

Repuestos

#1
13115-147-000
CLIP, PISTON PIN (10MM)
$2.62¢1 311
1
#001
13115-147-000
CLIP, PISTON PIN (10MM)
$2.62¢1 311
1
#002
22100-KSC-A10
CLUTCH OUTER
$461.44¢230 719
1
#2
22100-KSC-A10
CLUTCH OUTER
$461.44¢230 719
1
#3
22120-KRN-A00
CENTER, CLUTCH
$119.53¢59 765
1
#003
22120-KRN-A00
CENTER, CLUTCH
$119.53¢59 765
1
#004
22125-435-000
SEAT, JUDDER SPRING
$9.84¢4 922
1
#4
22125-435-000
SEAT, JUDDER SPRING
$9.84¢4 922
1
#005
22201-KSC-670
DISK A, CLUTCH FRICTION
$15.77¢7 883
1
#5
22201-KSC-670
DISK A, CLUTCH FRICTION
$15.77¢7 883
1
#006
22202-KSC-670
DISK B, CLUTCH FRICTION
$16.43¢8 217
1
#6
22202-KSC-670
DISK B, CLUTCH FRICTION
$16.43¢8 217
1
#7
22321-KF0-770
PLATE, CLUTCH
$15.93¢7 964
1
#007
22321-KF0-770
PLATE, CLUTCH
$15.93¢7 964
1
#008
22351-KRN-A10
PLATE, CLUTCH PRESSURE
$58.62¢29 308
1
#8
22351-KRN-A10
PLATE, CLUTCH PRESSURE
$58.62¢29 308
1
#8
22351-KZ4-A90
PLATE, CLUTCH PRESSURE
$68.94¢34 471
1
#008
22351-KZ4-A90
PLATE, CLUTCH PRESSURE
$68.94¢34 471
1
#9
22352-KZ4-A90
PIECE, CLUTCH LIFTER
$39.57¢19 786
1
#009
22352-KZ4-A90
PIECE, CLUTCH LIFTER
$39.57¢19 786
1
#10
22401-KSC-670
SPRING, CLUTCH
$4.42¢2 208
1
#010
22401-KSC-670
SPRING, CLUTCH
$4.42¢2 208
1
#011
22402-435-000
SPRING, JUDDER
$36.72¢18 360
1
#11
22402-435-000
SPRING, JUDDER
$36.72¢18 360
1
#012
22851-KZ3-J20
ROD, CLUTCH LIFTER
$22.16¢11 080
1
#12
22851-KZ3-J20
ROD, CLUTCH LIFTER
$22.16¢11 080
1
#013
28237-KSC-670
COLLAR, CLUTCH (OUTER)
$21.30¢10 649
1
#13
28237-KSC-670
COLLAR, CLUTCH (OUTER)
$21.30¢10 649
1
#014
90235-KA4-000
NUT (18MM)
$11.86¢5 928
1
#14
90235-KA4-000
NUT (18MM)
$11.86¢5 928
1
#15
90441-KSC-670
WASHER, LOCK (18MM)
$3.63¢1 817
1
#015
90441-KSC-670
WASHER, LOCK (18MM)
$3.63¢1 817
1
#16
90456-KS6-000
WASHER, THRUST (20MM)
$11.57¢5 784
1
#016
90456-KS6-000
WASHER, THRUST (20MM)
$11.57¢5 784
1
#17
90501-ML3-910
WASHER (18X32X2)
$4.88¢2 438
1
#017
90501-ML3-910
WASHER (18X32X2)
$4.88¢2 438
1
#18
90608-072-000
WASHER (12MM)
$4.24¢2 122
1
#018
90608-072-000
WASHER (12MM)
$4.24¢2 122
1
#019
91001-147-003
BEARING, NEEDLE (12MM) (NTN)
$13.43¢6 716
1
#19
91001-147-003
BEARING, NEEDLE (12MM) (NTN)
$13.43¢6 716
1
#20
91012-P68-003
BEARING, NEEDLE (27X31X16.8)
$12.73¢6 365
1
#020
91012-P68-003
BEARING, NEEDLE (27X31X16.8)
$12.73¢6 365
1
#21
93404-06020-08
BOLT-WASHER (6X20)
$1.92¢960
1
#021
93404-06020-08
BOLT-WASHER (6X20)
$1.92¢960
1
