HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

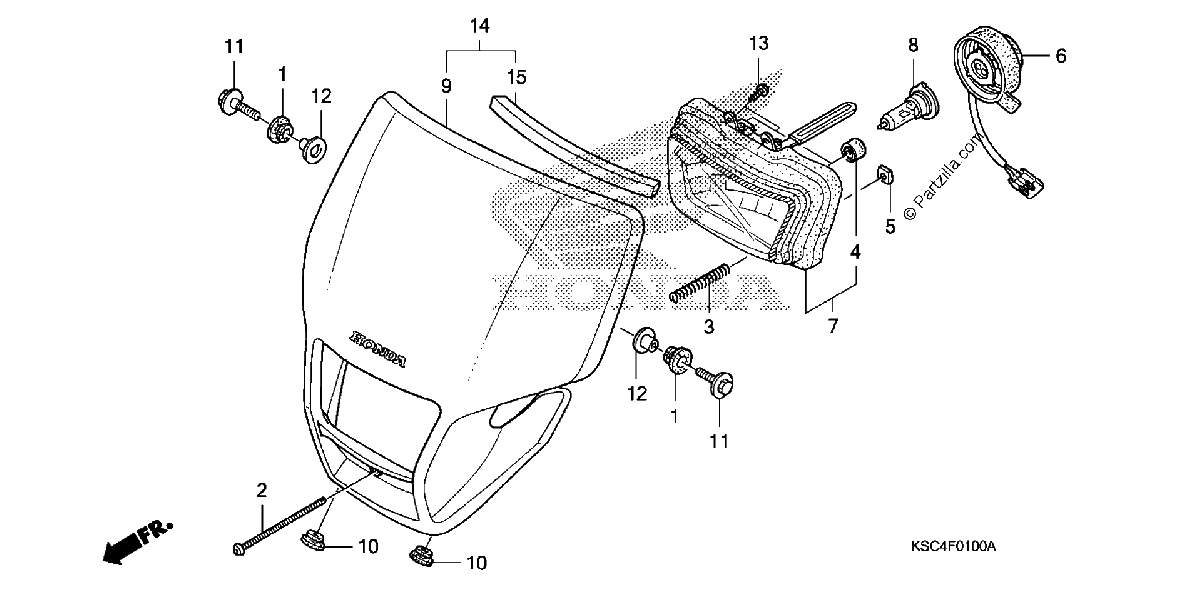

Diagrama de HEADLIGHT

Repuestos

#001
18293-GZ5-000
RUBBER, PROTECTOR GASKET
$3.65¢1 825
1
#1
18293-GZ5-000
RUBBER, PROTECTOR GASKET
$3.65¢1 825
1
#002
33103-KSC-670
SCREW, PAN (4X55)
$1.85¢925
1
#2
33103-KSC-670
SCREW, PAN (4X55)
$1.85¢925
1
#3
33107-KAE-771
SPRING, BEAM ADJUSTING
$3.40¢1 700
1
#003
33107-KAE-771
SPRING, BEAM ADJUSTING
$3.40¢1 700
1
#004
33113-MBW-D21
PIPE, CP
$3.40¢1 700
1
#4
33113-MBW-D21
PIPE, CP
$3.40¢1 700
1
#5
33117-KBR-730
NUT, BEAM ADJUSTING
$3.65¢1 825
1
#005
33117-KBR-730
NUT, BEAM ADJUSTING
$3.65¢1 825
1
#6
33130-KSC-A21
SOCKET, HEADLIGHT
$38.08¢19 038
1
#006
33130-KSC-A21
SOCKET, HEADLIGHT
$38.08¢19 038
1
#7
33150-KSC-A21
HEADLIGHT UNIT
$193.78¢96 888
1
#007
33150-KSC-A21
HEADLIGHT UNIT
$193.78¢96 888
1
#7
33150-KSC-305
HEADLIGHT UNIT (COO)
$193.78¢96 888
1
#007
33150-KSC-305
HEADLIGHT UNIT (COO)
$193.78¢96 888
1
#008
34901-GJ1-003
BULB, HEADLIGHT (12V 35/36.5W)
$39.44¢19 719
1
#8
34901-GJ1-003
BULB, HEADLIGHT (12V 35/36.5W)
$39.44¢19 719
1
#10
83501-MG7-000
GROMMET, SIDE COVER
$3.36¢1 681
1
#010
83501-MG7-000
GROMMET, SIDE COVER
$3.36¢1 681
1
#011
90147-KPB-J10
BOLT, FLANGE (6X16)
$2.99¢1 494
1
#11
90147-KPB-J10
BOLT, FLANGE (6X16)
$2.99¢1 494
1
#012
90501-124-000
WASHER, FR. COVER SETTING
$4.13¢2 063
1
#12
90501-124-000
WASHER, FR. COVER SETTING
$4.13¢2 063
1
#013
93911-25120
SCREW, TAPPING (5X10) (PO)
$1.00¢500
1
#13
93911-25120
SCREW, TAPPING (5X10) (PO)
$1.00¢500
1
#014
61300-KSC-A30ZA
VISOR SET, FR. *NH196* (WL) (ROSS WHITE)
$63.40¢31 700
1
#14
61300-KSC-A30ZA
VISOR SET, FR. *NH196* (WL) (ROSS WHITE)
$63.40¢31 700
1
#15
61302-KSC-A20
RUBBER, LIGHT FOAM
$4.22¢2 113
1
#015
61302-KSC-A20
RUBBER, LIGHT FOAM
$4.22¢2 113
1
