FUEL TANK 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

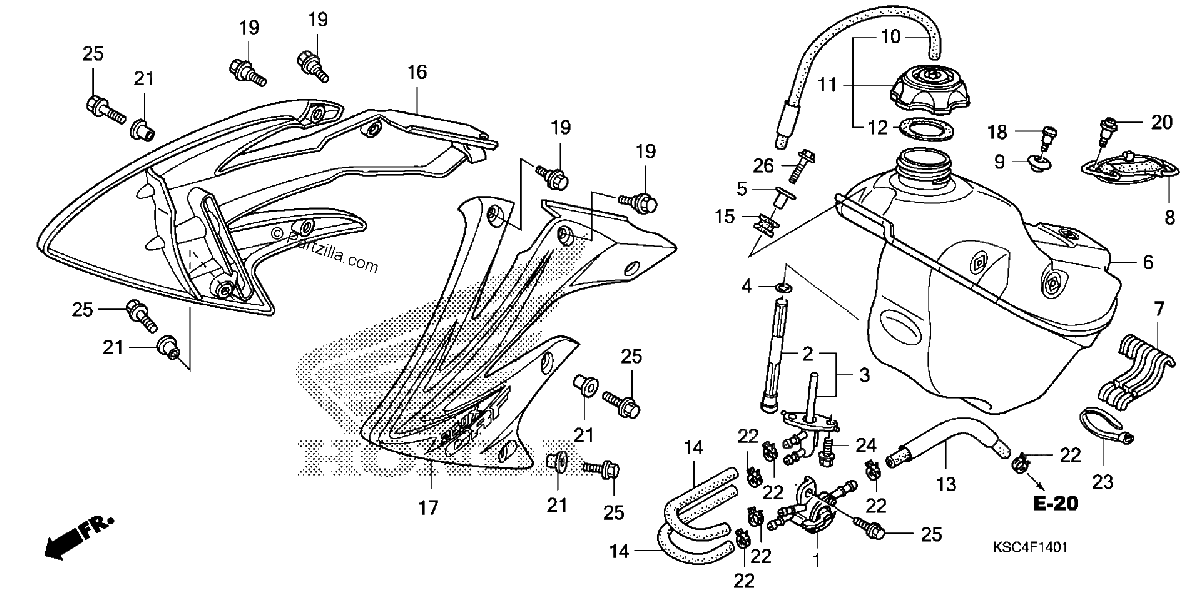

Diagrama de FUEL TANK 2

Repuestos

#1
16950-KSC-A21
PETCOCK ASSY.
$43.51¢21 756
1
#001
16950-KSC-A21
PETCOCK ASSY.
$43.51¢21 756
1
#002
16952-KCY-671
SCREEN SET, FUEL STRAINER
$34.49¢17 244
1
#2
16952-KCY-671
SCREEN SET, FUEL STRAINER
$34.49¢17 244
1
#3
16955-KSC-A21
JOINT ASSY., FUEL
$38.06¢19 031
1
#003
16955-KSC-A21
JOINT ASSY., FUEL
$38.06¢19 031
1
#4
16997-467-000
O-RING (11.8X3.55)
$2.85¢1 425
1
#004
16997-467-000
O-RING (11.8X3.55)
$2.85¢1 425
1
#005
17509-KZ3-B00
COLLAR, TANK SETTING
$10.55¢5 275
1
#5
17509-KZ3-B00
COLLAR, TANK SETTING
$10.55¢5 275
1
#6
17510-KSC-A20
TANK, FUEL
$668.53¢334 263
1
#006
17510-KSC-A20
TANK, FUEL
$668.53¢334 263
1
#007
17512-KSC-A20
RUBBER, FUEL TANK MOUNTING
$15.04¢7 519
1
#7
17512-KSC-A20
RUBBER, FUEL TANK MOUNTING
$15.04¢7 519
1
#8
17516-KZ3-B00
BAND, Rear TANK
$18.94¢9 469
1
#008
17516-KZ3-B00
BAND, Rear TANK
$18.94¢9 469
1
#9
17518-KZ4-710
COLLAR, FR. SEAT
$7.04¢3 519
1
#009
17518-KZ4-710
COLLAR, FR. SEAT
$7.04¢3 519
1
#010
17521-KZ4-J20
TUBE, FUEL CAP BREATHER
$5.85¢2 925
1
#10
17521-KZ4-J20
TUBE, FUEL CAP BREATHER
$5.85¢2 925
1
#11
17620-MEB-670
CAP Assembly., FUEL TANK
$117.38¢58 688
1
#011
17620-MEB-670
CAP Assembly., FUEL TANK
$117.38¢58 688
1
#012
17624-KT1-780
GASKET, FUEL CAP
$5.84¢2 919
1
#12
17624-KT1-780
GASKET, FUEL CAP
$5.84¢2 919
1
#13
17681-KSC-A20
TUBE B, FUEL
$21.63¢10 813
1
#013
17681-KSC-A20
TUBE B, FUEL
$21.63¢10 813
1
#14
17684-KSC-A20
TUBE A, FUEL
$13.01¢6 506
1
#014
17684-KSC-A20
TUBE A, FUEL
$13.01¢6 506
1
#015
18334-ML3-680
RUBBER, MUFFLER
$4.70¢2 350
1
#15
18334-ML3-680
RUBBER, MUFFLER
$4.70¢2 350
1
#16
19071-KSC-U40ZA
SHROUD SET, Right RADIATOR (TYPE1) (WL)
$177.97¢88 988
1
#016
19071-KSC-U40ZA
SHROUD SET, Right RADIATOR (TYPE1) (WL)
$177.97¢88 988
1
#17
19072-KSC-U40ZA
SHROUD SET, L RADIATOR (TYPE1) (WL)
$177.97¢88 988
1
#017
19072-KSC-U40ZA
SHROUD SET, L RADIATOR (TYPE1) (WL)
$177.97¢88 988
1
#018
90018-ZA5-000
BOLT, STATOR COVER SETTING
$2.25¢1 125
1
#18
90018-ZA5-000
BOLT, STATOR COVER SETTING
$2.25¢1 125
1
#19
90101-KRN-730
BOLT, SPECIAL (5X9)
$3.40¢1 700
1
#019
90101-KRN-730
BOLT, SPECIAL (5X9)
$3.40¢1 700
1
#020
90105-MEN-730
SCREW (5X12)
$2.15¢1 075
1
#20
90105-MEN-730
SCREW (5X12)
$2.15¢1 075
1
#021
90501-KZ4-J20
COLLAR A
$4.44¢2 219
1
#21
90501-KZ4-J20
COLLAR A
$4.44¢2 219
1
#22
90651-HN6-A51
CLAMP, TUBE (12.0)
$2.66¢1 331
1
#022
90651-HN6-A51
CLAMP, TUBE (12.0)
$2.66¢1 331
1
#023
91560-MS8-600
TY-RAP, CABLE
$3.05¢1 525
1
#23
91560-MS8-600
TY-RAP, CABLE
$3.05¢1 525
1
#24
96001-06014-00
BOLT, FLANGE (6X14)
$2.31¢1 156
1
#024
96001-06014-00
BOLT, FLANGE (6X14)
$2.31¢1 156
1
#025
96001-06016-00
BOLT, FLANGE (6X16)
$1.35¢675
1
#25
96001-06016-00
BOLT, FLANGE (6X16)
$1.35¢675
1
#26
96001-06030-00
BOLT, FLANGE (6X30)
$1.80¢900
1
#026
96001-06030-00
BOLT, FLANGE (6X30)
$1.80¢900
1
