CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

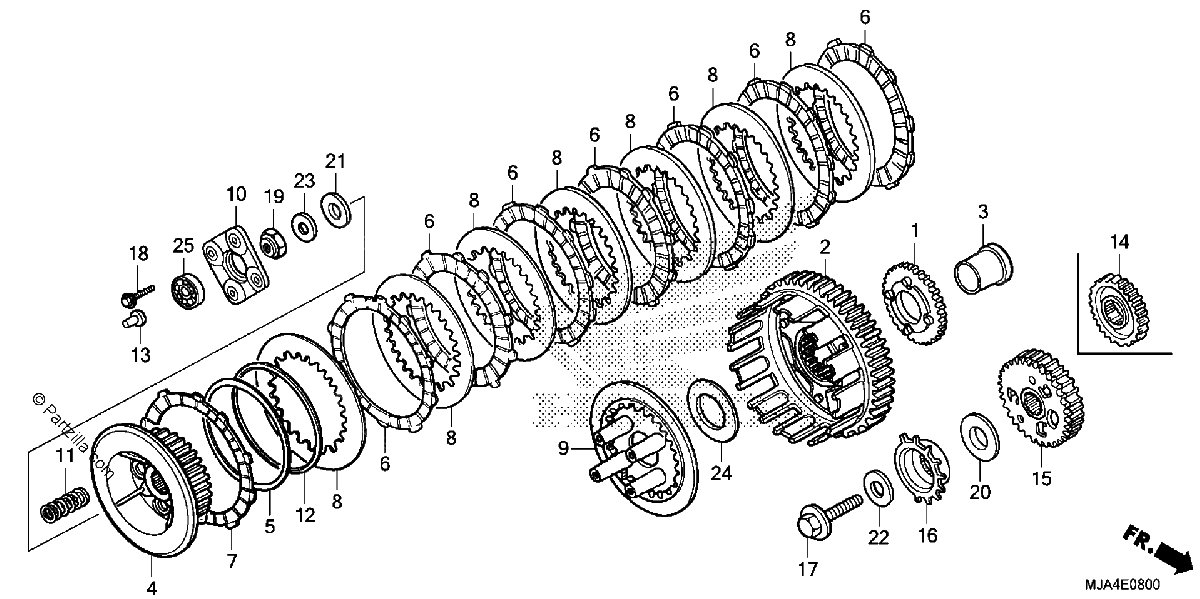

Diagrama de CLUTCH

Repuestos

#1
15131-MBA-003
SPROCKET, OIL PUMP DRIVE (31T)
$61.13¢30 567
1
#2
22100-MBA-000
CLUTCH OUTER (65T)
$488.51¢244 254
1
#3
22116-MBA-000
COLLAR, PRIMARY DRIVEN
$49.22¢24 610
1
#4
22120-MBA-000
CENTER, CLUTCH (24T)
$93.82¢46 909
1
#5
22125-435-000
SEAT, JUDDER SPRING
$9.84¢4 922
1
#6
22201-MAV-000
DISK, CLUTCH FRICTION
$13.91¢6 958
1
#7
22202-MAE-000
DISK B, CLUTCH FRICTION
$17.10¢8 550
1
#8
22321-MN8-000
PLATE, CLUTCH
$10.09¢5 043
1
#9
22350-MS6-921
PLATE, CLUTCH PRESSURE
$64.61¢32 304
1
#9
22350-MS6-922
PLATE, CLUTCH PRESSURE
$64.61¢32 304
1
#10
22361-MR1-000
PLATE, CLUTCH LIFTER
$22.62¢11 310
1
#11
22401-MS8-000
SPRING, CLUTCH
$5.03¢2 513
1
#12
22402-435-000
SPRING, JUDDER
$36.72¢18 360
1
#13
22847-MZ8-H00
ROD, CLUTCH LIFTER
$6.92¢3 461
1
#15
23110-MGR-670
GEAR ASSY., PRIMARY DRIVE (39T)
$288.95¢144 474
1
#16
30211-MFE-640
ROTOR, PULSE
$20.82¢10 408
1
#17
90005-MN5-000
BOLT, FLANGE (12X30)
$9.96¢4 980
1
#18
90007-MR1-000
BOLT, SPECIAL FLANGE (6X30)
$3.36¢1 679
1
#19
90236-HA0-000
NUT, LOCK (18MM)
$11.24¢5 618
1
#20
90401-MGR-670
WASHER (27.9X52X1)
$5.26¢2 628
1
#21
90401-MZ8-B40
WASHER (18MM)
$3.00¢1 501
1
#22
90403-MEW-920
WASHER (12.5X34X5)
$5.54¢2 772
1
#23
90432-428-000
WASHER, LOCK
$8.45¢4 226
1
#24
90452-471-000
WASHER, THRUST (22MM)
$5.32¢2 662
1
#25
96100-60010-00
BEARING, RADIAL BALL (6001)
$23.86¢11 931
1
