HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

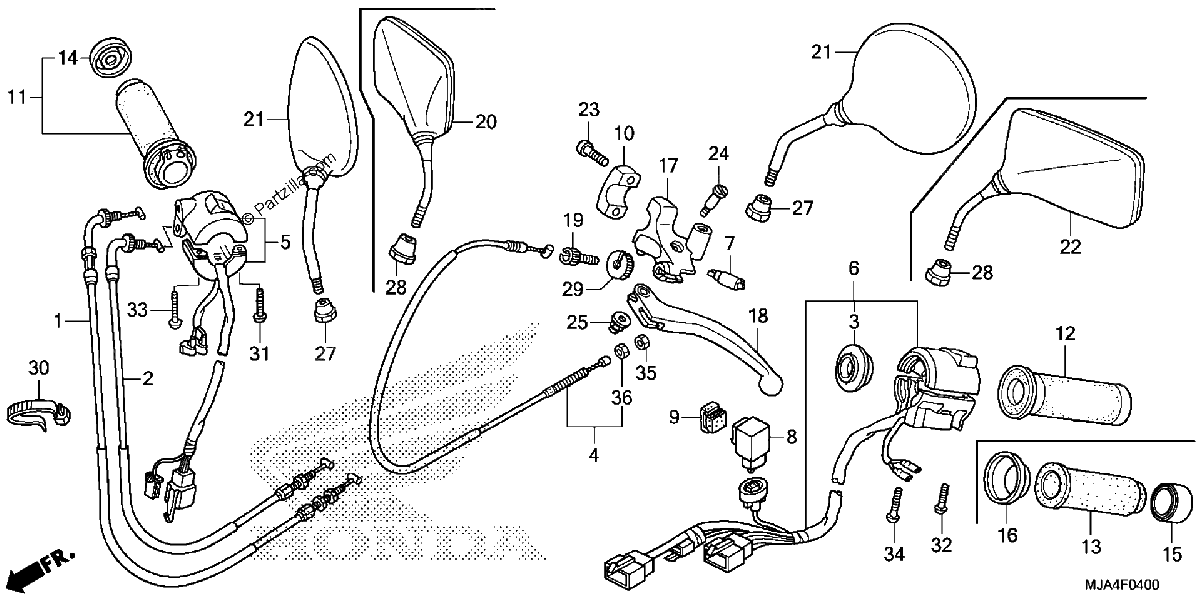

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#1
17910-MGR-671
CABLE A, THROTTLE
$32.03¢16 014
1
#2
17920-MGR-671
CABLE B, THROTTLE
$37.66¢18 831
1
#3
17962-MR1-000
ADAPTER
$20.61¢10 304
1
#4
22870-MGR-671
CABLE, CLUTCH
$31.23¢15 617
1
#5
35130-MGR-671
SWITCH ASSY., STARTER ENGINE STOP
$147.86¢73 928
1
#6
35200-MGR-671
SWITCH ASSY., TURN SIGNAL
$167.64¢83 818
1
#7
35330-413-003
SWITCH, FR. LEVER (TOYO DENSO)
$23.40¢11 701
1
#10
45517-MEG-006
HOLDER, MASTER CYLINDER (NISSIN)
$12.30¢6 152
1
#11
53145-MCL-305
GRIP, R. HANDLE (COO)
$58.57¢29 285
1
#13
53166-MCL-305
GRIP, L. HANDLE (COO)
$31.50¢15 749
1
#14
53167-MCL-000
CAP, R. GRIP END
$9.20¢4 600
1
#15
53168-MCL-300
CAP, L. GRIP END
$9.20¢4 600
1
#16
53170-MCL-300
RING, GRIP
$8.23¢4 117
1
#17
53172-MEG-000
BRACKET, HANDLE LEVER
$33.90¢16 951
1
#18
53178-MFR-305
LEVER, L. HANDLEBAR (COO)
$20.84¢10 419
1
#19
53192-268-000
BOLT, WIRE ADJUSTING
$7.29¢3 645
1
#20
88210-MFY-305
MIRROR ASSY., R. BACK (COO)
No Disponible
1
#22
88220-MFY-305
MIRROR ASSY., L. BACK (COO)
No Disponible
1
#23
90101-MCL-000
BOLT, SOCKET (6X22)
$1.71¢857
1
#24
90113-438-000
BOLT, L HANDLEBAR LEVER PIVOT
$8.46¢4 232
1
#25
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#28
90314-375-000
NUT, LOCK
$13.40¢6 699
1
#29
90321-MA6-750
NUT, FIXING
$11.15¢5 577
1
#31
93500-05020-0A
SCREW, PAN (5X20)
$0.93¢466
1
#32
93500-05022-0A
SCREW, PAN (5X22)
$0.79¢397
1
#33
93500-05025-0A
SCREW, PAN (5X25)
$1.12¢558
1
#34
93500-05032-0A
SCREW, PAN (5X32)
$1.30¢650
1
#35
94002-08070-0S
NUT, HEX. (8MM)
$1.54¢771
1
#36
94030-08070
NUT, HEX. (8MM)
$0.56¢282
1
