RADIATOR 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

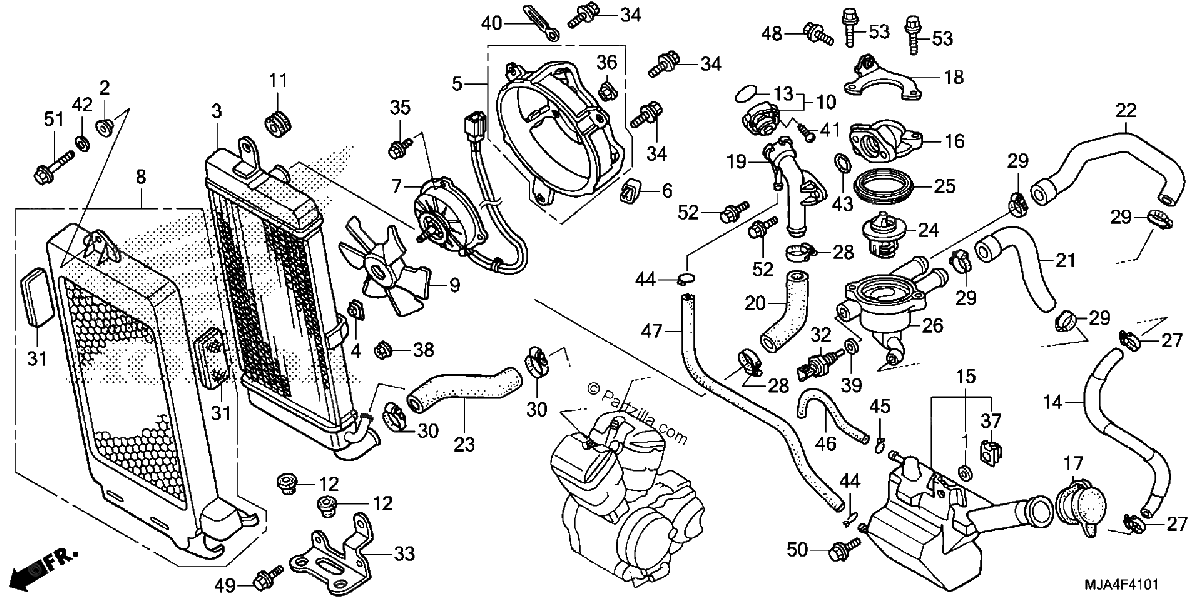

Diagrama de RADIATOR 2

Repuestos

#1
16573-ZE6-300
COLLAR, CONTROL
$3.54¢1 769
1
#2
17216-HA7-670
COLLAR, AIR CLEANER SETTING
$7.46¢3 731
1
#3
19010-MGR-305
RADIATOR (COO)
$719.36¢359 681
1
#4
19014-KEA-003
NUT, SETTING (6MM)
$3.75¢1 875
1
#5
19015-MBA-305
SHROUD (COO)
$69.24¢34 619
1
#6
19017-PK1-004
CLIP, HARNESS (TOYO)
$12.41¢6 206
1
#7
19030-MGR-671
MOTOR ASSY., FAN
$417.79¢208 894
1
#8
19035-MBA-671
GRILLE, RADIATOR
$132.63¢66 313
1
#9
19040-MF5-751
FAN, COOLING (TOYO)
$81.39¢40 694
1
#10
19045-MY3-621
CAP, RADIATOR
$47.33¢23 663
1
#11
19051-KA3-710
RUBBER, RADIATOR MOUNTING
$6.13¢3 063
1
#12
19051-MB2-000
RUBBER, RADIATOR MOUNTING
$5.47¢2 738
1
#13
19055-MV9-881
SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)
$10.79¢5 394
1
#14
19071-MGR-670
HOSE, BYPASS
$38.59¢19 294
1
#15
19101-MBA-305
TANK ASSY., RESERVE (COO)
$34.81¢17 406
1
#16
19103-MGR-670
CAP, THERMOSTAT
$38.56¢19 281
1
#17
19104-MB0-700
CAP, RESERVE TANK
$14.13¢7 063
1
#18
19105-MGR-670
STAY, THERMOSTAT CASE
$6.39¢3 194
1
#19
19106-MM8-000
NECK, FILLER
$75.67¢37 838
1
#20
19107-MGR-670
HOSE, RADIATOR (UPPER)
$13.88¢6 938
1
#21
19108-MGR-670
HOSE, FR. OUTLET WATER
$12.19¢6 094
1
#22
19110-MGR-670
HOSE, RR. OUTLET WATER
$18.77¢9 388
1
#23
19115-MBA-000
HOSE, RADIATOR (LOWER)
$28.28¢14 138
1
#24
19300-MCH-A00
THERMOSTAT ASSY.
$55.46¢27 731
1
#25
19305-KV3-010
RUBBER, THERMOSTAT
$7.35¢3 675
1
#26
19310-MGR-670
CASE, THERMOSTAT
$60.31¢30 156
1
#27
19504-KY1-003
CLAMP, WATER HOSE (25MM)
$12.04¢6 019
1
#28
19505-ML3-770
CLAMP, WATER HOSE
$8.58¢4 288
1
#29
19506-KS6-700
CLAMP B, WATER HOSE
$9.10¢4 550
1
#30
19509-MM5-003
CLAMP, RADIATOR HOSE
$15.88¢7 938
1
#31
33745-MBA-670
REFLECTOR SET, FR. REFLEX
$36.25¢18 125
1
#32
37870-KRJ-901
SENSOR ASSY., WATER TEMPERATURE
$35.96¢17 981
1
#33
50175-MBA-000
STAY, RADIATOR
$22.03¢11 013
1
#34
90120-KCR-003
BOLT-WASHER (6X16)
$5.32¢2 662
1
#35
90196-MBB-003
BOLT, FLANGE (5X10)
$3.43¢1 713
1
#36
90303-MBB-003
NUT, SPECIAL (5MM)
$4.84¢2 419
1
#37
90305-KT7-000
NUT, CLIP (6MM)
$5.29¢2 644
1
#38
90315-MK3-003
NUT, SERRATE (5MM)
$2.99¢1 494
1
#39
96001-06020-00
BOLT, FLANGE (6X20)
$1.60¢800
1
#39
90454-MC7-000
WASHER, SPECIAL (12MM)
$3.36¢1 681
1
#40
91413-679-000
CLIP (2X70)
$10.81¢5 406
1
#41
93901-22180
SCREW, TAPPING (3X8)
$1.16¢581
1
#42
94101-06700
WASHER, PLAIN (6MM)
$1.21¢606
1
#43
94608-30000
O-RING (23X2.4)
$1.54¢769
1
#44
95002-02120
CLIP, TUBE (B12)
$2.39¢1 194
1
#45
95002-50000
CLIP, TUBE (C9)
$1.54¢769
1
#46
95005-50003-30M
BULK HOSE, VACUUM (5X3000) (5X300)
$24.39¢12 194
1
#47
95005-75001-20M
BULK HOSE, VACUUM (7.3X1000) OEM CUT SIZE: (7.3X500)
$26.24¢13 119
1
#48
95701-06012-00
BOLT, FLANGE (6X12)
$2.09¢1 044
1
#49
95701-06014-07
BOLT, FLANGE (6X14)
$1.77¢888
1
#50
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#51
95701-06030-07
BOLT, FLANGE (6X30)
$2.41¢1 206
1
#52
96001-06014-00
BOLT, FLANGE (6X14)
$2.31¢1 156
1
