REAR WHEEL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

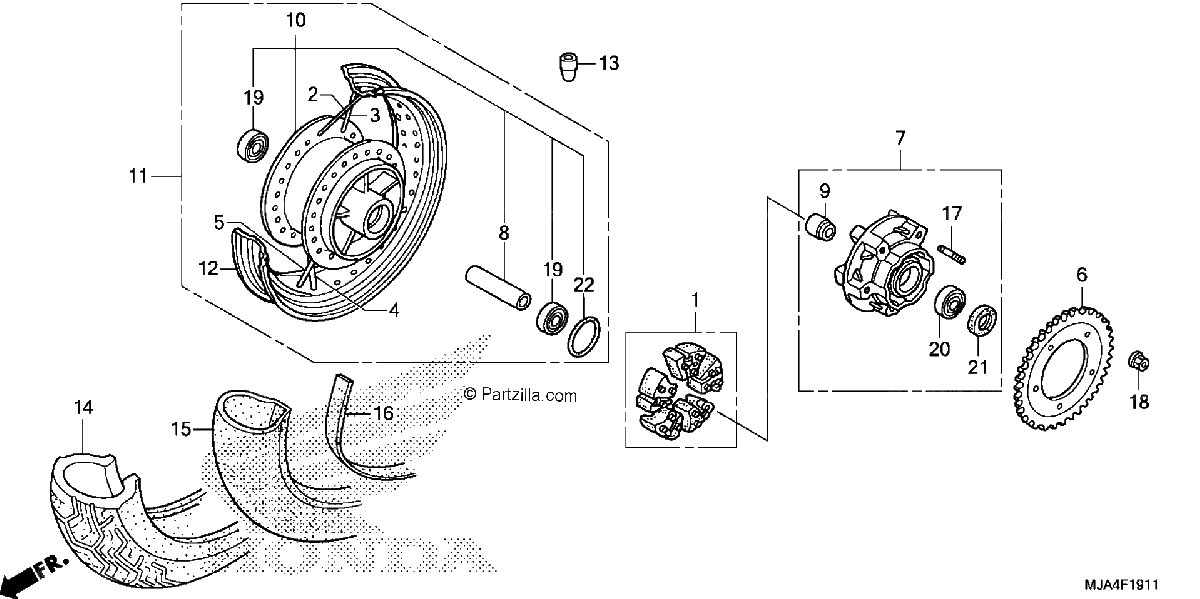

Diagrama de REAR WHEEL 2

Repuestos

#1
06410-MBA-000
DAMPER SET, WHEEL
$32.94¢16 468
1
#2
06420-MGR-670
(R. INSIDE)
$3.73¢1 863
1
#3
06421-MGR-670
(R. OUTSIDE)
$5.22¢2 610
1
#4
06422-MGR-670
(L. INSIDE)
$5.22¢2 610
1
#5
06423-MGR-670
(L. OUTSIDE)
$3.73¢1 863
1
#6
41201-MGR-670
SPROCKET, FINAL DRIVEN (38T)
No Disponible
1
#7
42615-MBA-000
FLANGE SUB-ASSY., RR. DRIVEN
$292.87¢146 435
1
#8
42620-MW0-010
COLLAR, RR. AXLE DISTANCE
$40.28¢20 142
1
#9
42625-MV4-000
COLLAR B, RR. WHEEL DISTANCE
$31.60¢15 801
1
#10
42635-MBA-000
HUB SUB-ASSY., RR.
$558.87¢279 433
1
#11
42650-MGR-670
WHEEL SUB-ASSY., RR.
$958.87¢479 435
1
#12
42701-MGR-671
RIM, RR. WHEEL
$256.53¢128 265
1
#13
42705-MEG-003
WEIGHT, BALANCE (20G)
$9.02¢4 508
1
#13
42704-MEG-003
WEIGHT, BALANCE (15G)
$9.02¢4 508
1
#14
42711-MGR-671
TIRE, RR. (150/80 B 16 M/C 71H) (DUNLOP)
$250.78¢125 390
1
#14
42711-MGR-672
TIRE, RR. (METZELER) (150/80 B 16 M/C 71H) (NA USE ALT:42711-MGR-671)
No Disponible
1
#14
42711-MGR-673
TIRE, RR. (150/80 B 16 M/C 71H) (DUNLOP)
$250.78¢125 390
1
#15
42712-MGR-671
TUBE, TIRE (DUNLOP)
$47.21¢23 604
1
#15
42712-MGR-672
TUBE, TIRE (METZELER) (NA USE ALT:42712-MGR-671)
No Disponible
1
#16
42713-MGR-671
FLAP, TIRE (DUNLOP)
$7.81¢3 904
1
#16
42713-MGR-672
BAND, RIM (METZELER)
$15.63¢7 814
1
#17
90102-MAS-000
BOLT, STUD (12X25)
$4.47¢2 237
1
#18
90306-KTZ-D01
NUT, U FLANGE (12MM)
$3.92¢1 961
1
#19
91052-MZ2-A21
BEARING, RADIAL BALL (6204UU) (NSK)
$29.60¢14 800
1
#20
91073-MV4-782
BEARING, RADIAL BALL (62/22)
$14.24¢7 119
1
#21
91252-MAE-003
DUST SEAL (30X50X7.5)
$18.12¢9 062
1
#22
91302-MA6-003
O-RING (61X2)
$5.76¢2 881
1
