FRONT FORK 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

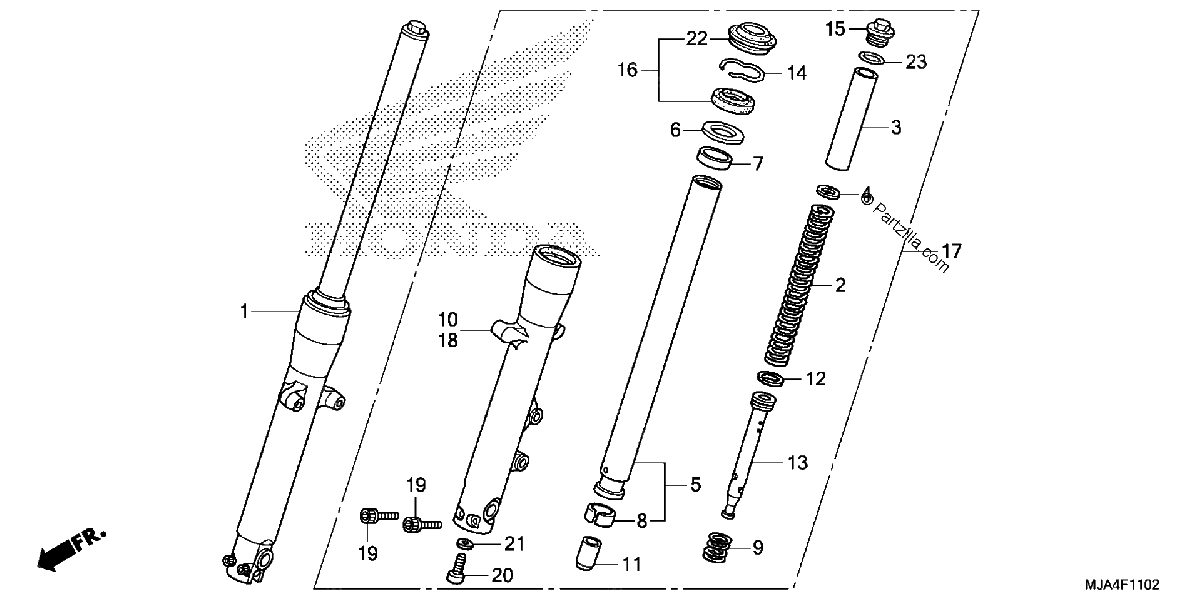

Diagrama de FRONT FORK 3

Repuestos

#1
51400-MGR-305
FORK ASSY., R. FR. (COO) (SHOWA)
$924.13¢462 064
1
#2
51401-MGR-671
SPRING, FR. FORK
$96.00¢48 001
1
#3
51402-ML7-921
COLLAR, SPRING
$31.26¢15 628
1
#4
51404-MB4-003
PLATE, SPRING JOINT
$5.51¢2 754
1
#5
51410-MGR-671
PIPE, FR. FORK
$494.05¢247 026
1
#6
51412-MB4-003
RING, BACK-UP (SHOWA)
$10.38¢5 192
1
#7
51414-MFJ-A51
BUSH, GUIDE
$8.10¢4 048
1
#8
51415-MFJ-A51
BUSH, SLIDER
$8.10¢4 048
1
#9
51416-MM8-881
SPRING, FR. REBOUND (SHOWA)
$6.57¢3 283
1
#10
51420-MCL-003
CASE, R. (LOWER)
$457.55¢228 775
1
#11
51432-MV9-003
PIECE, OIL LOCK (SHOWA)
$26.52¢13 259
1
#12
51437-MB4-003
RING, PISTON
$10.30¢5 152
1
#13
51440-MGR-671
PIPE, SEAT
$48.74¢24 369
1
#14
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#15
51455-MCL-003
BOLT, FR. FORK
$55.52¢27 761
1
#16
51490-MER-R61
SEAL SET, Front FORK
$24.32¢12 161
1
#17
51500-MGR-305
FORK ASSY., L. FR. (COO) (SHOWA)
No Disponible
1
#18
51520-MCL-003
CASE, L. (LOWER)
$457.55¢228 775
1
#19
90109-MCR-D00
BOLT, SOCKET (8X35)
$3.36¢1 679
1
#20
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
1
#21
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
1
#22
91254-MEE-D01
DUST SEAL (SHOWA)
$9.20¢4 600
1
#23
91356-MB4-003
O-RING
$3.96¢1 978
1
