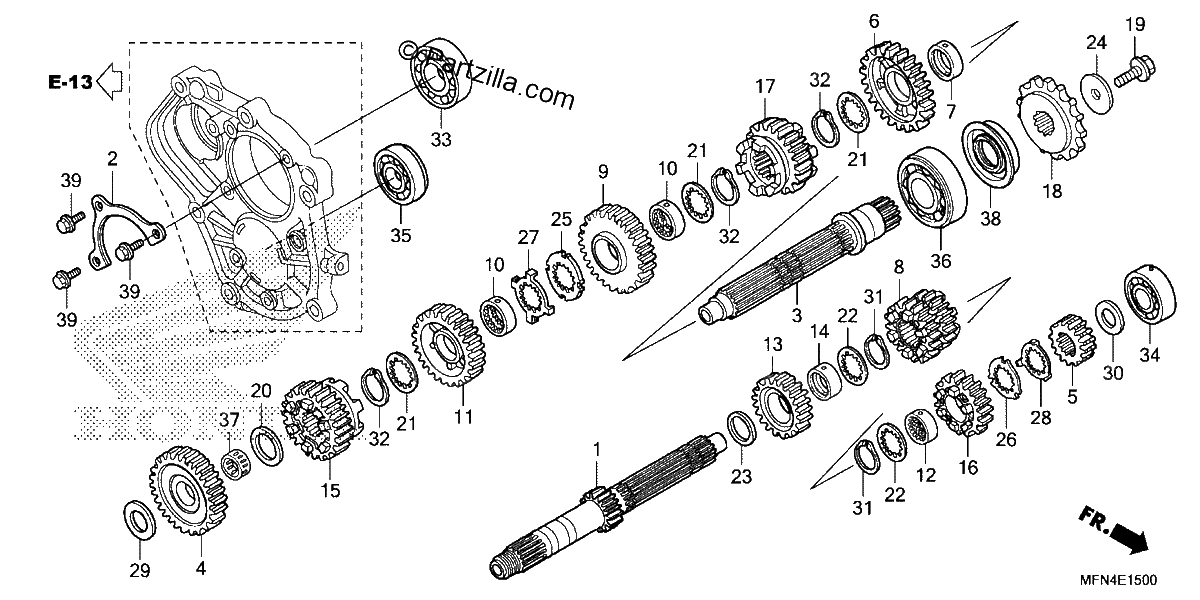

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
MAINSHAFT (13T)
$254.97¢127 488
#002
PLATE, BEARING SETTING
$6.83¢3 413
#003
COUNTERSHAFT
$262.99¢131 494
#004
GEAR, COUNTERSHAFT FIRST (33T)
$143.38¢71 688
#005
GEAR, MAINSHAFT SECOND (17T)
$83.32¢41 662
#006
GEAR, COUNTERSHAFT SECOND (33T)
$136.25¢68 125
#007
COLLAR (30X9.5)
$16.51¢8 256
#008
GEAR, MAINSHAFT THIRD FOURTH (19T/22T)
$167.15¢83 575
#009
GEAR, COUNTERSHAFT THIRD (30T)
$142.41¢71 206
#010
COLLAR, SPLINE (30X11)
$29.61¢14 806
#011
GEAR, COUNTERSHAFT FOURTH (30T)
$142.41¢71 206
#012
COLLAR, SPLINE (28X16)
$25.88¢12 938
#013
GEAR, MAINSHAFT FIFTH (23T)
$140.16¢70 081
#014
COLLAR (28X13)
$29.61¢14 806
#015
GEAR, COUNTERSHAFT FIFTH (28T)
$162.85¢81 425
#016
GEAR, MAINSHAFT SIXTH (26T)
$147.03¢73 513
#017
GEAR, COUNTERSHAFT SIXTH (29T)
$162.85¢81 425
#018
SPROCKET, DRIVE (16T)
$107.24¢53 619
#019
BOLT, SPECIAL (10MM)
$8.89¢4 444
#020
WASHER, THRUST (24MM)
$4.44¢2 219
#021
WASHER, SPLINE (30X36X1.5)
$4.24¢2 119
#022
WASHER, SPLINE (28X34X1.5)
$8.15¢4 075
#023
WASHER, THRUST (28MM)
$6.89¢3 444
#024
WASHER (10.2MM)
$7.08¢3 538
#025
WASHER, SPLINE (30MM)
$5.88¢2 938
#026
WASHER, SPLINE (28MM)
$7.15¢3 575
#027
WASHER, LOCK (30MM)
$8.65¢4 325
#028
WASHER, LOCK (28MM)
$7.15¢3 575
#029
SHIM J, FINAL REDUCTION THIRD GEAR (2.0MM)
$8.30¢4 150
#030
WASHER, THRUST (20MM)
$2.48¢1 238
#031
CIRCLIP (28MM)
$4.54¢2 269
#032
CIRCLIP (30MM)
$5.42¢2 713
#033
BEARING, RADIAL BALL (28X62X16)
$29.74¢14 869
#034
BEARING, SPECIAL (20X47X15.5)
$32.56¢16 281
#035
BEARING, SPECIAL (20X52X15)
$29.74¢14 869
#036
BEARING, SPECIAL BALL (35X72X17)
$46.09¢23 044
#037
BEARING, NEEDLE (24X28X10)
$14.00¢7 000
#038
OIL SEAL (34.8X53X8)
$8.73¢4 363
#039
BOLT, FLANGE (6X12)
$2.09¢1 044
