FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

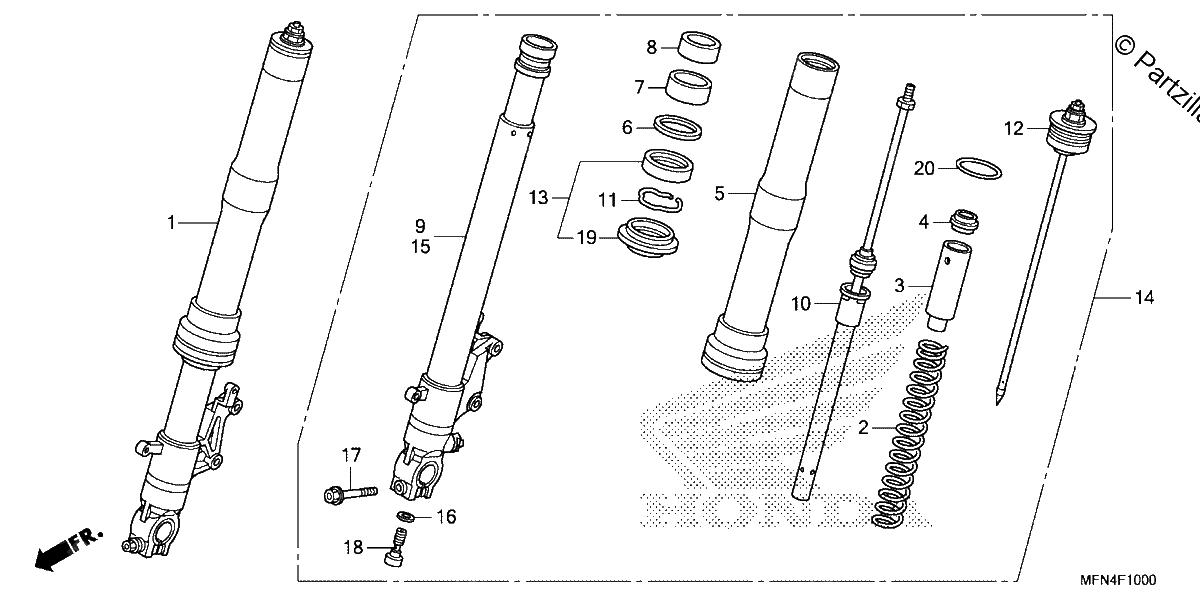

Diagrama de FRONT FORK

Repuestos

#001
51400-MFN-305
FORK ASSY., R. FR. (COO)
$1631.61¢815 804
1
#001
51400-MFN-D61
FORK Assembly., Right Front. (SHOWA)
$1631.61¢815 804
1
#001
51400-MFN-D62
FORK Assembly,Right FRONT
$1631.61¢815 804
1
#002
51401-MFN-D01
SPRING, FR. FORK
$85.81¢42 907
1
#003
51403-MFG-D01
COLLAR, SPRING
$12.52¢6 262
1
#004
51406-MW4-003
STOPPER, SPRING SEAT
$8.82¢4 410
1
#005
51410-MFN-305
TUBE (OUTER) (COO)
$539.95¢269 974
1
#006
51412-MEL-003
RING, BACK-UP
$6.24¢3 122
1
#007
51414-MFN-D01
BUSH, GUIDE
$7.89¢3 944
1
#008
51415-MFN-D01
BUSH, SLIDER
$32.92¢16 462
1
#009
51425-MFN-D01
PIPE, R. SLIDE
$467.19¢233 594
1
#010
51430-MFN-D01
DAMPER, FR.
$662.25¢331 125
1
#011
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#011
51447-MBL-611
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#012
51454-MFN-D61
BOLT, FR. FORK
$123.88¢61 939
1
#013
51490-MFL-003
SEAL SET, FR. FORK
$21.36¢10 678
1
#014
51500-MFN-305
FORK ASSY., L. FR. (COO)
$1561.19¢780 597
1
#014
51500-MFN-D62
FORK Assembly,L FRONT
$1561.19¢780 597
1
#015
51525-MFN-D01
PIPE, L. SLIDE
$467.19¢233 594
1
#016
52442-KA3-711
WASHER, SPECIAL (10MM)
$2.85¢1 426
1
#017
90109-MR7-000
BOLT, FLANGE (8X45)
$5.51¢2 754
1
#018
90126-MR7-003
BOLT, SOCKET (10X35)
$17.50¢8 752
1
#019
91254-MEJ-003
DUST SEAL
$13.80¢6 900
1
#019
91254-MEJ-013
DUST SEAL
$13.80¢6 900
1
#020
91258-GF4-003
O-RING (42.2X2.4)
$6.59¢3 295
1
