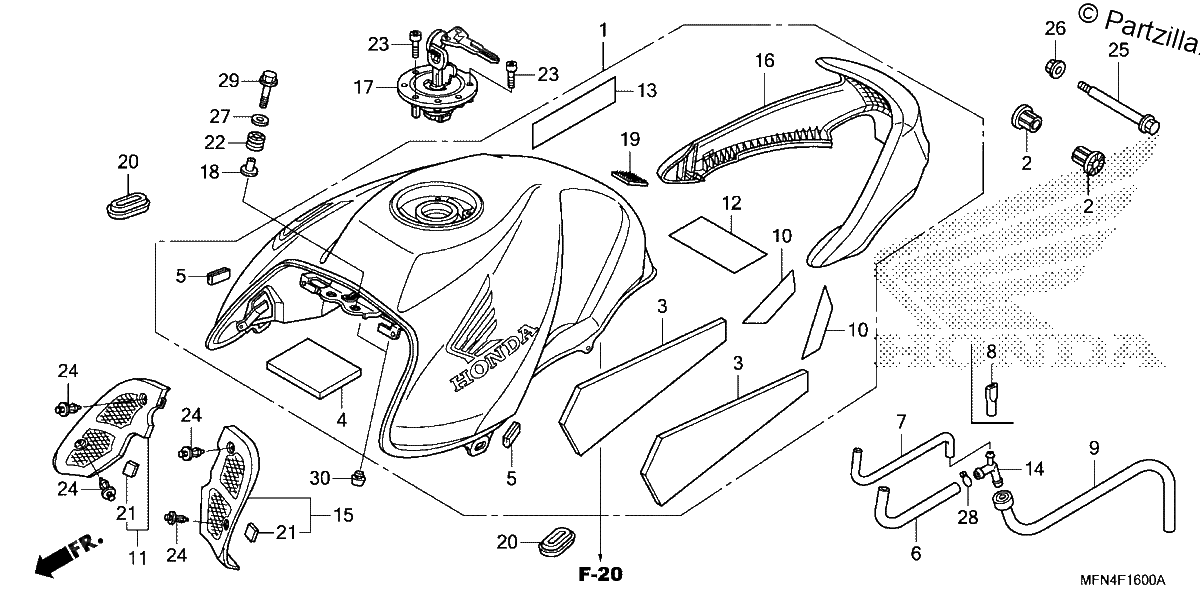

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
TANK SET, FUEL (TYPE4) (WL)
$2255.57¢1 127 788
#002
CUSHION, RR. FUEL TANK PIVOT
$1.21¢606
#003
MAT, FUEL TANK SIDE
$10.48¢5 238
#005
TRIM, FUEL TANK
$3.61¢1 806
#006
TUBE, DRAIN
$8.11¢4 056
#008
CAP, JOINT (THREE-WAY)
$14.74¢7 369
#009
TUBE, THREE WAY JOINT
$6.96¢3 481
#010
FILM, TANK PROTECTOR
$18.61¢9 306
#011
COVER, R. TANK (INNER)
$7.59¢3 794
#012
FILM A, PROTECTOR
$21.23¢10 613
#013
FILM B, PROTECTOR
$7.66¢3 831
#014
JOINT, THREE WAY
$5.86¢2 931
#015
COVER, L. TANK (INNER)
$7.59¢3 794
#016
PAD, FUEL TANK
$240.03¢120 013
#017
CAP, FUEL FILLER
$260.51¢130 256
#017
CAP, FUEL FILLER
$260.51¢130 256
#018
COLLAR, SETTING
$8.39¢4 194
#019
FASTENER A, DUAL LOCK (30X30)
$1.04¢519
#020
GROMMET, SIDE COVER
$3.93¢1 963
#021
RUBBER, TANK COVER (INNER)
$1.09¢544
#022
RUBBER, TAILLIGHT MOUNTING
$5.72¢2 863
#023
BOLT, SOCKET (4X21)
$3.69¢1 844
#024
RIVET, PUSH
$1.79¢894
#025
BOLT, TANK HINGE
$7.55¢3 775
#026
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
#027
WASHER, PLAIN (6MM)
$2.60¢1 300
#028
CLIP, TUBE (B12)
$2.39¢1 194
#029
BOLT, FLANGE (6X28)
$1.95¢975
#030
RUBBER B, STOPPER
$3.65¢1 825
