RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

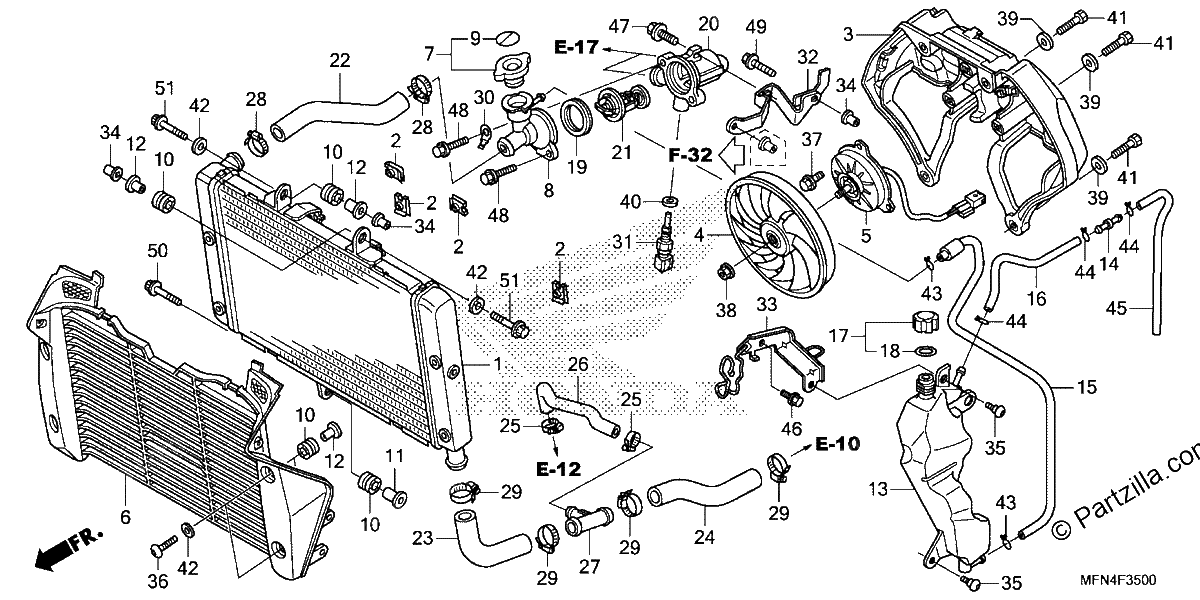

Diagrama de RADIATOR

Repuestos

#001
19010-MFN-305
RADIATOR (COO)
$280.25¢140 127
1
#002
19014-KEA-003
NUT, SETTING (6MM)
$3.45¢1 725
1
#003
19015-MFN-D00
SHROUD
$26.77¢13 386
1
#004
19020-MFG-D01
FAN, COOLING
$48.64¢24 322
1
#005
19030-MFN-D01
MOTOR ASSY., FAN
$288.33¢144 164
1
#006
19032-MFN-D00
GRILLE, RADIATOR
$28.57¢14 283
1
#007
19037-GEE-710
CAP, RADIATOR
$32.35¢16 175
1
#008
19038-MEJ-000
NECK, FILLER
$94.27¢47 133
1
#009
19046-PAA-A00
LABEL, RADIATOR CAP
$3.36¢1 679
1
#010
19051-KA3-830
RUBBER, RADIATOR MOUNTING
$3.69¢1 846
1
#011
19052-MFG-D00
COLLAR, RADIATOR MOUNTING
$3.81¢1 903
1
#012
19052-MGH-640
COLLAR, RADIATOR MOUNTING
$2.94¢1 472
1
#012
19052-MN8-000
COLLAR, RADIATOR MOUNTING
$2.94¢1 472
1
#013
19101-MFN-D00
TANK, RADIATOR RESERVE
$33.65¢16 825
1
#014
19102-KT8-000
JOINT, TUBE
$7.38¢3 691
1
#015
19103-MFN-D00
TUBE, FILLER-RESERVE TANK
$10.50¢5 250
1
#016
19104-MFN-D00
TUBE, RESERVE TANK DRAIN
$6.58¢3 289
1
#017
19105-MG8-000
CAP ASSY., RESERVE TANK
$13.54¢6 768
1
#018
19107-MG8-000
GASKET, RESERVE TANK
$5.46¢2 731
1
#019
19305-KV3-010
RUBBER, THERMOSTAT
$6.76¢3 381
1
#020
19310-MFA-D00
CASE, THERMOSTAT
$55.54¢27 772
1
#021
19320-MFJ-D01
THERMOSTAT
$36.82¢18 412
1
#022
19502-MFN-D00
HOSE B, RADIATOR (UPPER)
$14.93¢7 464
1
#023
19503-MFN-D00
HOSE A, RADIATOR (LOWER)
$11.42¢5 710
1
#024
19504-MFN-D00
HOSE B, RADIATOR (LOWER)
$14.97¢7 486
1
#025
19505-KS6-700
CLAMP A, WATER HOSE
$13.74¢6 871
1
#026
19505-MFN-D60
HOSE, OIL COOLER
$36.83¢18 417
1
#027
19511-MFN-D00
JOINT, HOSE (THREE-WAY)
$22.45¢11 224
1
#028
19516-GAG-003
CLAMP, HOSE (30-37MM)
$14.86¢7 429
1
#029
19516-MER-D10
CLAMP, HOSE
$9.07¢4 537
1
#030
32152-MB3-000
CONNECTOR, GROUND
$2.30¢1 150
1
#031
37870-KRJ-901
SENSOR ASSY., WATER TEMPERATURE
$33.09¢16 543
1
#032
50140-MFN-D00
STAY, FILLER NECK
$3.92¢1 961
1
#033
50224-MFN-D00
STAY, CLUTCH CABLE
$13.82¢6 911
1
#034
90111-KFB-000
NUT, SPECIAL (6X1.0)
$3.69¢1 846
1
#035
90113-KTP-900
BOLT, SPECIAL HEX. (6X14)
$3.54¢1 771
1
#036
90114-KSV-J10
BOLT, SPECIAL (6X25)
$2.33¢1 167
1
#037
90196-MBB-003
BOLT, FLANGE (5X10)
$3.15¢1 576
1
#038
90315-MK3-003
NUT, SERRATE (5MM)
$2.75¢1 374
1
#039
90417-KB5-930
WASHER, PLAIN (6MM)
$11.91¢5 957
1
#040
90454-MC7-000
WASHER, SPECIAL (12MM)
$3.09¢1 547
1
#041
92101-06016-0G
BOLT, HEX. (6X16)
$1.62¢811
1
#041
92201-06016-0G
BOLT, HEX. (6X16)
$1.62¢811
1
#042
94103-06700
WASHER, PLAIN (6MM)
$0.85¢426
1
#043
95002-02120
CLIP, TUBE (B12)
$2.20¢1 098
1
#044
95002-70000
CLIP, TUBE (C11)
$1.94¢972
1
#045
95005-70003-30M
BULK HOSE, VACUUM (7X3000) OEM CUT SIZE: (7X200)
$25.22¢12 610
1
#046
95701-06016-00
BOLT, FLANGE (6X16)
$1.92¢960
1
#047
95701-06020-00
BOLT, FLANGE (6X20)
$2.09¢1 047
1
#048
96001-06018-00
BOLT, FLANGE (6X18)
$2.04¢1 018
1
#049
96001-06025-00
BOLT, FLANGE (6X25)
$2.48¢1 242
1
#050
96001-06030-07
BOLT, FLANGE (6X30)
$2.13¢1 064
1
#051
96001-06035-07
BOLT, FLANGE (6X35)
$2.56¢1 282
1
