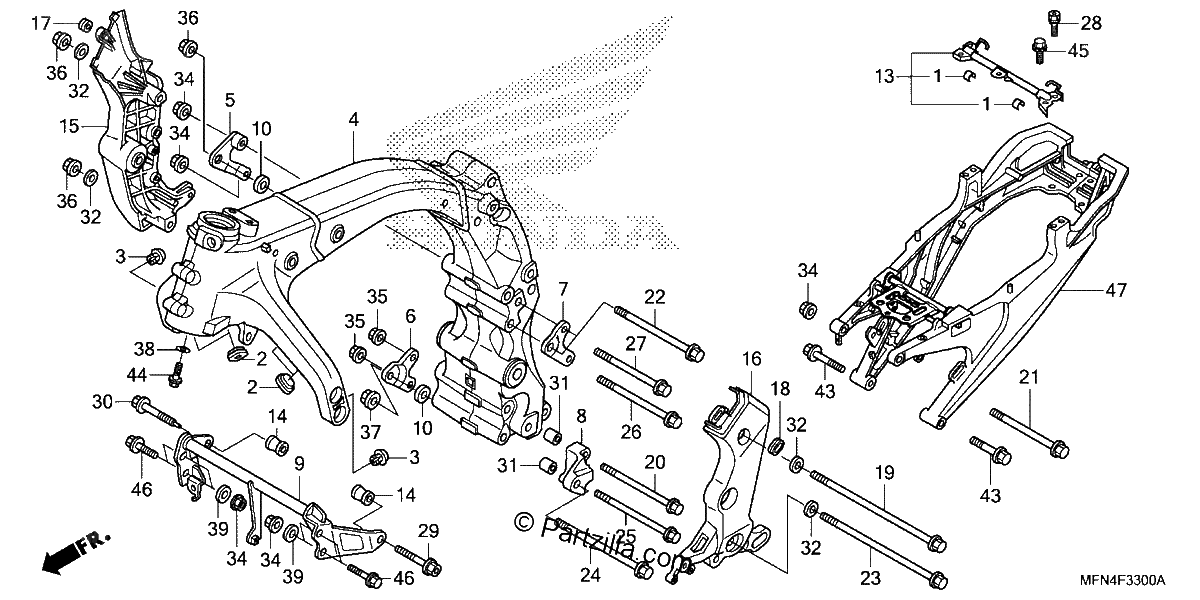

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
PROTECTOR
$8.36¢4 181
#002
GROMMET, RR. RADIATOR COVER
$0.53¢263
#003
RUBBER, STOPPER
$3.61¢1 806
#004
FRAME *NH303M* (MAT AXIS GRAY METALLIC)
No Disponible
#005
PLATE B, R. ENGINE HANGER
$27.44¢13 719
#006
PLATE C, R. ENGINE HANGER
$12.18¢6 088
#007
PLATE B, L. ENGINE HANGER
$8.34¢4 169
#008
BRACKET C, L. ENGINE HANGER
$75.60¢37 800
#009
HANGER, FR. ENGINE
$175.61¢87 806
#010
COLLAR, ENGINE HANGER
$8.24¢4 119
#013
PIPE, CENTER CROSS
$48.56¢24 281
#014
COLLAR, FR. ENGINE HANGER
$9.65¢4 825
#015
BRACKET, Right PIVOT NH109MS (SHOT SILVER METALLIC SPECIAL)
$334.20¢167 100
#016
BRACKET, L PIVOT NH109MS (SHOT SILVER METALLIC SPECIAL)
$333.52¢166 763
#017
GROMMET, SIDE COVER
$3.36¢1 681
#018
GROMMET A, SIDE COVER
$5.47¢2 738
#019
BOLT, FLANGE (12X306)
$21.44¢10 719
#020
BOLT, FLANGE (10X190)
$8.85¢4 425
#021
BOLT, ENGINE HANGER
$14.13¢7 063
#022
BOLT, FLANGE (12X186)
$19.63¢9 813
#023
BOLT, ENGINE HANGER (12X312)
$17.31¢8 656
#024
BOLT, FLANGE (12X216)
$20.20¢10 100
#025
BOLT, FLANGE (10X196)
$8.95¢4 475
#026
BOLT, FLANGE (10X164)
$7.25¢3 625
#027
BOLT, FLANGE (10X180)
$13.66¢6 831
#028
BOLT, SPECIAL (8MM)
$3.40¢1 700
#029
BOLT, FLANGE (12X65)
$13.04¢6 519
#030
BOLT, FLANGE (12X80)
$29.51¢14 756
#031
PIN, DOWEL (10X16)
$3.69¢1 844
#032
WASHER, PLAIN (12MM)
$3.36¢1 681
#034
NUT, FLANGE (10MM)
$1.90¢950
#035
NUT, FLANGE (10MM)
$4.06¢2 031
#035
NUT, FLANGE (10MM)
$4.06¢2 031
#036
NUT, FLANGE (12MM)
$1.27¢638
#037
NUT, FLANGE (12MM)
$1.74¢869
#038
WASHER, PLAIN (6MM)
$1.21¢606
#039
WASHER, PLAIN (10MM)
$1.47¢737
#043
BOLT, FLANGE (10X65)
$9.15¢4 575
#044
BOLT, FLANGE (6X8)
$1.21¢606
#045
BOLT, FLANGE (8X16)
$1.80¢900
#046
BOLT, FLANGE (10X40)
$3.65¢1 825
#047
RAIL ASSY., SEAT *NH303M* (MAT AXIS GRAY METALLIC)
$787.09¢393 544
