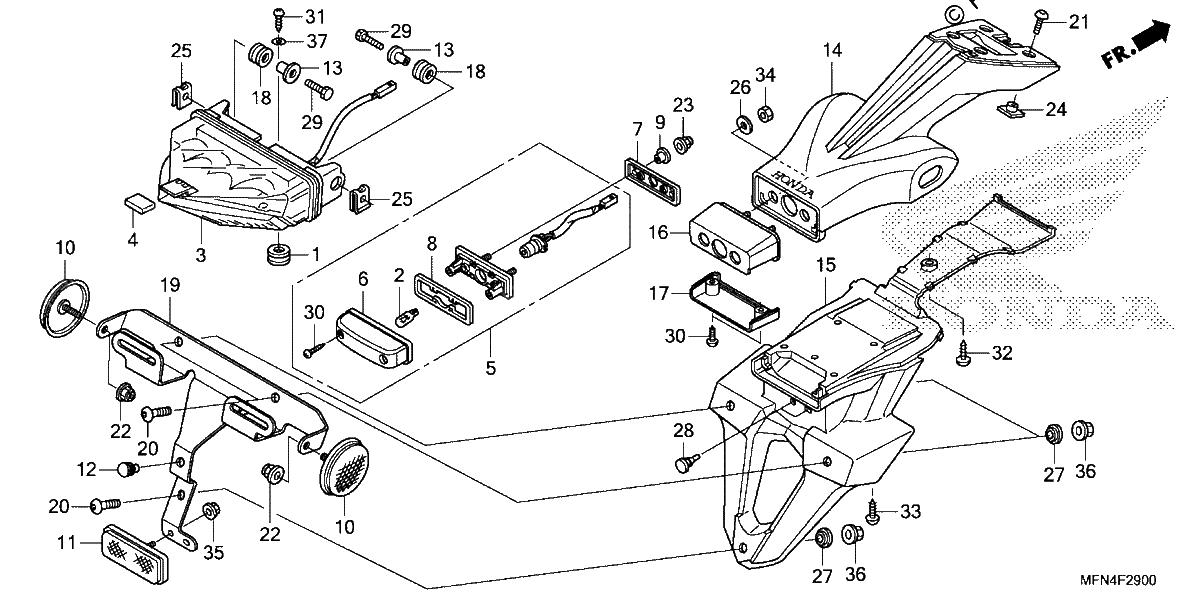

TAILLIGHT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
GROMMET, RADIATOR SETTING
$4.78¢2 392
#002
BULB (12V 5W) (STANLEY)
$4.24¢2 122
#003
TAILLIGHT UNIT (COO)
$229.88¢114 943
#004
SUSPENSION, TAILLIGHT
$1.06¢529
#005
LIGHT ASSY., LICENSE (12V 5W)
$104.21¢52 107
#006
COVER, LICENSE
$22.64¢11 322
#007
RUBBER, LICENSE LIGHT
$3.51¢1 754
#008
GASKET, LENS
$11.21¢5 606
#009
COLLAR, REGULATOR MOUNTING
$2.83¢1 414
#010
REFLECTOR, Rear REFLEX (RED)
$14.26¢7 130
#011
REFLECTOR, REFLEX (STANLEY)
$16.31¢8 153
#012
PLUG, HANDLE COVER (LOWER)
$2.20¢1 098
#013
COLLAR, TAILLIGHT
$13.59¢6 797
#014
STAY SET, RR. FENDER (TYPE1) (WL)
$23.15¢11 575
#015
FENDER A
$31.35¢15 675
#016
BRACKET, LICENSE LIGHT
$10.41¢5 204
#017
COVER, LICENSE LIGHT
$24.00¢12 000
#018
RUBBER A, MOUNTING
$2.98¢1 489
#019
BRACKET, LICENSE PLATE
$21.59¢10 793
#020
BOLT, SPECIAL (6X17)
$4.08¢2 041
#021
SCREW, PAN
$2.59¢1 294
#022
NUT, U (6MM) (FUSE RASHI)
$4.54¢2 271
#023
NUT, FLANGE (5MM) (FUSE RASHI)
$5.52¢2 760
#024
NUT, SPECIAL (6MM)
$3.96¢1 978
#025
NUT, SPRING (5MM)
$2.33¢1 167
#026
WASHER (6.5X25X1.5)
$4.53¢2 266
#027
COLLAR, SEAT COWL MOUNT (INNER)
$13.36¢6 681
#028
STOPPER, FR. BUMPER FACE
$9.88¢4 939
#029
BOLT, HEX. (5X20)
$1.38¢690
#030
SCREW, TAPPING (4X16)
$0.98¢489
#031
SCREW, TAPPING (4X12)
$1.07¢535
#032
SCREW, TAPPING (5X16)
$1.07¢535
#033
SCREW, TAPPING (5X20)
$0.79¢397
#034
NUT, HEX. (6MM)
$1.54¢771
#034
NUT, HEX. (6MM)
$1.54¢771
#035
NUT, FLANGE (5MM)
$1.54¢771
#036
NUT, FLANGE (6MM)
$1.71¢857
#037
WASHER, PLAIN (5MM)
$1.12¢558
