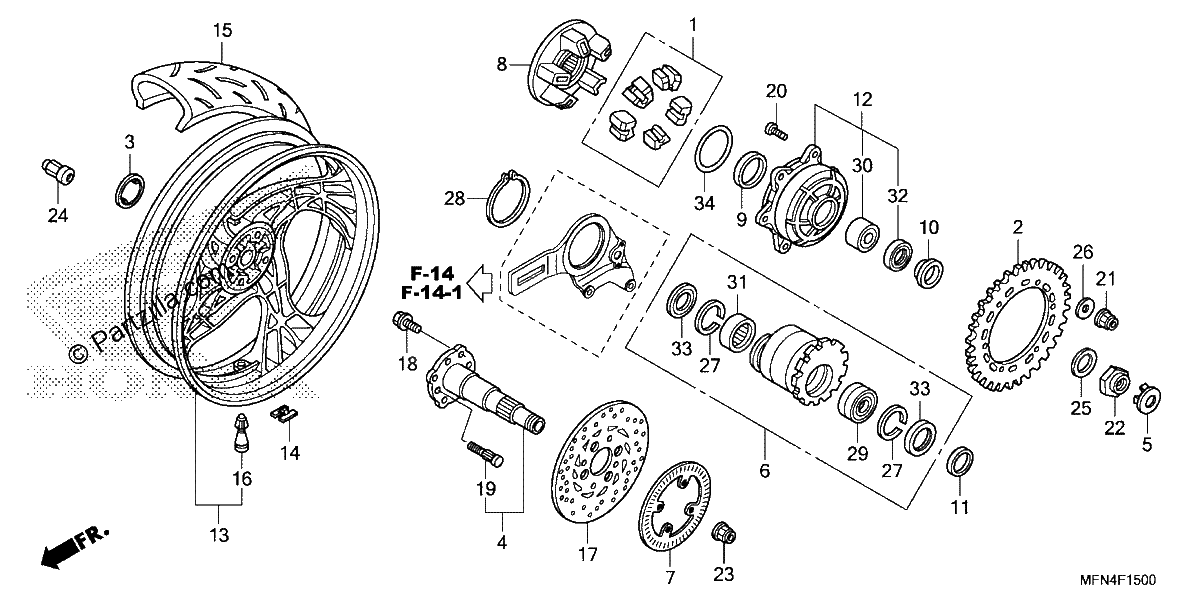

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, FINAL DRIVEN
$122.11¢61 056
#002
SPROCKET, FINAL DRIVEN (44T)
$86.41¢43 206
#003
CAP, RR. WHEEL
$5.81¢2 906
#004
AXLE, RR.
$372.82¢186 413
#005
CAP, RR. AXLE
$1.47¢737
#006
HOLDER, BEARING
$381.38¢190 688
#008
HUB, FINAL DRIVEN
$284.49¢142 244
#009
COLLAR, RR. AXLE DISTANCE
$25.45¢12 725
#010
COLLAR, RR. AXLE SIDE
$28.17¢14 087
#011
COLLAR, RR. AXLE
$29.04¢14 519
#012
HUB ASSY., SPROCKET
$276.02¢138 013
#013
WHEEL SUB-ASSY., RR. (COO)
$388.88¢194 438
#014
WEIGHT, BALANCE (10G)
$10.91¢5 456
#014
WEIGHT, BALANCE (20G)
$22.41¢11 206
#014
WEIGHT, BALANCE (30G)
$22.09¢11 044
#015
TIRE, RR. (180/55ZR17) (M/C 73W) (BS)
$258.16¢129 081
#016
VALVE, RIM (BS)
$14.79¢7 394
#016
VALVE, RIM (SCHRADER)
$14.79¢7 394
#016
VALVE, RIM (TRITON)
$0.71¢356
#016
VALVE, RIM (WONDER)
$14.79¢7 394
#016
VALVE, RIM
$0.71¢356
#017
DISK, RR. BRAKE
$100.92¢50 463
#018
BOLT, FLANGE (8X20)
$2.48¢1 238
#019
BOLT, WHEEL (NAGOYA RASHI)
$3.47¢1 737
#019
BOLT, WHEEL (ROCKNEL FASTENER)
$3.47¢1 737
#020
BOLT (10X30)
$3.75¢1 875
#021
NUT, U FLANGE (10MM)
$3.40¢1 700
#022
NUT, LOCK (35MM)
$14.94¢7 469
#023
NUT, FLANGE (8MM)
$4.06¢2 031
#023
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$4.06¢2 031
#024
NUT, WHEEL (FUSE RASHI)
$13.71¢6 856
#025
WASHER, CONICAL SPRING (35)
$9.94¢4 969
#026
WASHER (10MM)
$3.11¢1 556
#027
CIRCLIP (INNER) (62MM)
$7.70¢3 850
#028
CIRCLIP (OUTER) (75MM)
$13.43¢6 713
#029
BEARING, RADIAL BALL (6908LU)
$55.21¢27 606
#030
BEARING, RADIAL BALL (35X55X10)
$103.29¢51 644
#031
BEARING, RR. AXLE NEEDLE
$49.25¢24 625
#032
DUST SEAL (45X55X5) (ARAI)
$10.13¢5 063
#033
DUST SEAL (50X62X5)
$14.84¢7 419
#034
O-RING, SPROCKET HUB
$3.36¢1 681
