WATER PIPE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

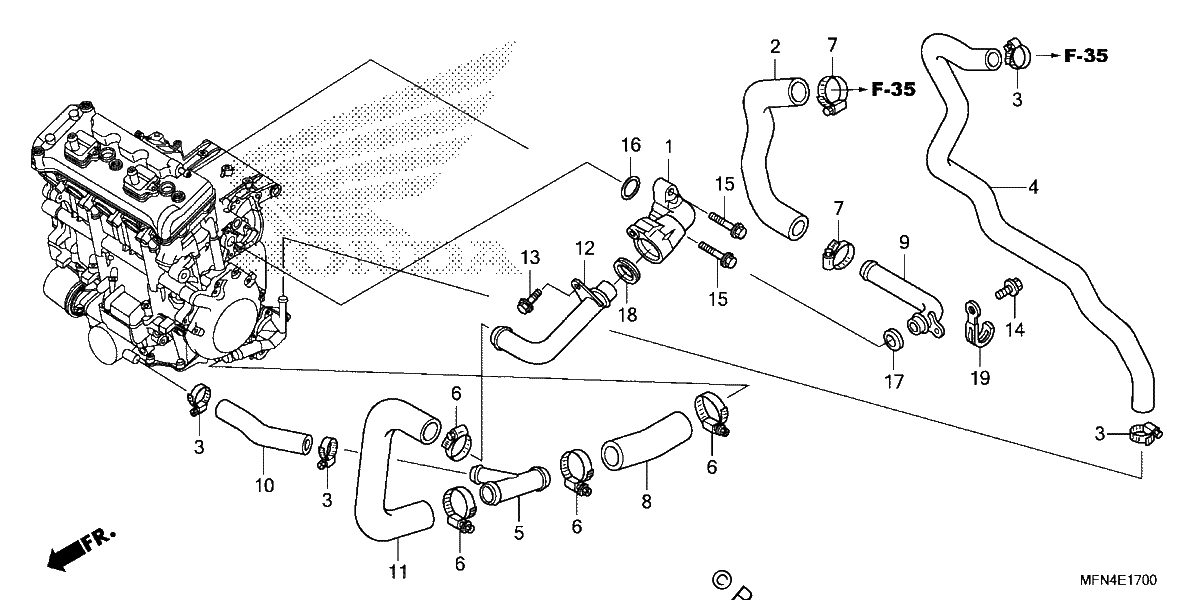

Diagrama de WATER PIPE

Repuestos

#001
19060-MFN-D00
JOINT, WATER
$78.21¢39 106
1
#002
19501-MFN-D00
HOSE A, RADIATOR (UPPER)
$19.69¢9 844
1
#003
19504-KY1-003
CLAMP, WATER HOSE (25MM)
$12.04¢6 019
1
#004
19506-MFN-D00
HOSE, BYPASS
$33.46¢16 731
1
#005
19507-MFN-D00
JOINT, HOSE (THREE-WAY)
$15.65¢7 825
1
#006
19516-MER-D10
CLAMP, HOSE
$9.86¢4 931
1
#007
19516-ML7-691
CLAMP, HOSE (24-32MM)
$16.71¢8 356
1
#008
19524-MEL-D20
HOSE A, CYLINDER BLOCK
$9.14¢4 569
1
#009
19525-MFA-D00
PIPE, WATER
$58.32¢29 162
1
#010
19526-MEL-D20
HOSE E, CYLINDER BLOCK
$10.58¢5 288
1
#011
19528-MFN-D00
HOSE, WATER JOINT
$23.98¢11 988
1
#012
19530-MFN-D00
PIPE, WATER JOINT
$65.71¢32 856
1
#013
90002-MFN-D00
BOLT, FLANGE (6X14)
$2.75¢1 375
1
#014
90006-GHB-620
BOLT, FLANGE (6X14) (NSHF)
$2.36¢1 181
1
#015
90006-MFN-D00
BOLT, FLANGE (6X28)
$3.05¢1 525
1
#016
91302-MEL-003
O-RING (24.5X2)
$3.33¢1 663
1
#017
91315-MB0-013
SEAL, WATER PIPE
$3.49¢1 744
1
#018
91315-MFN-D00
SEAL, WATER PIPE
$2.54¢1 269
1
#019
91410-679-000
CLIP (2X60)
$11.78¢5 888
1
