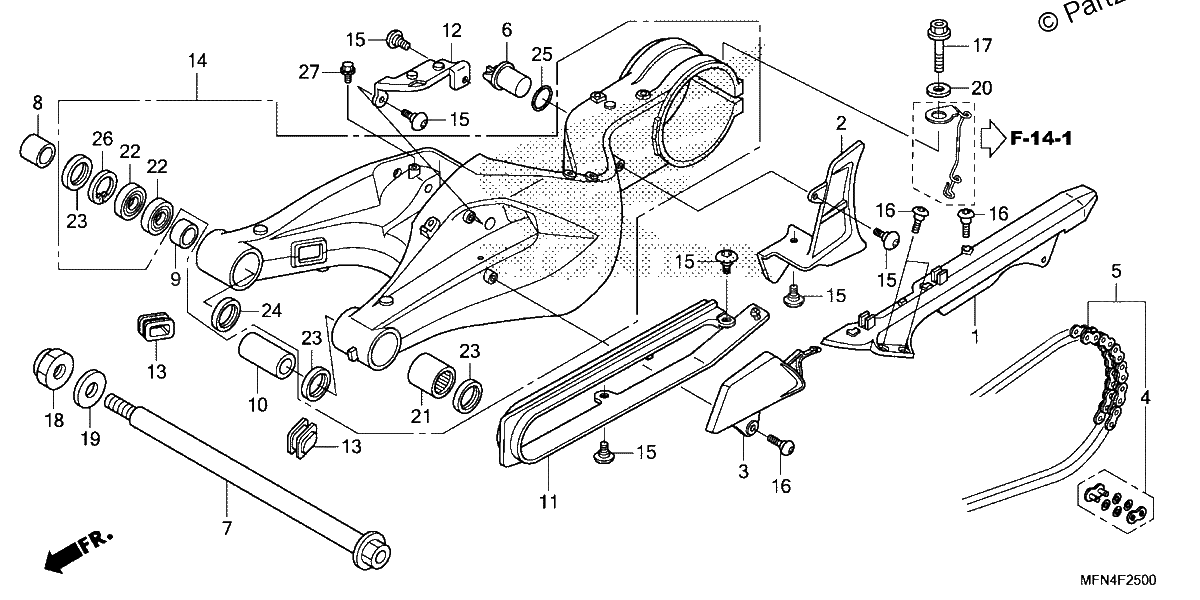

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CASE A, DRIVE CHAIN
$6.83¢3 413
#002
GUIDE, RR. BRAKE AIR
$7.69¢3 844
#003
CASE B, DRIVE CHAIN
$5.42¢2 713
#004
MASTER LINK (DAIDO)
No Disponible
#004
MASTER LINK (DID)
No Disponible
#005
CHAIN, DRIVE (DID50 VA8-120ZB) (DAIDO)
$393.44¢196 719
#006
STOPPER, TORQUE LINK
$15.65¢7 825
#007
BOLT, SWINGARM PIVOT
$43.44¢21 719
#008
COLLAR A, PIVOT DISTANCE
$12.63¢6 313
#009
COLLAR B, PIVOT DISTANCE
$28.15¢14 075
#010
COLLAR, PIVOT DISTANCE
$50.86¢25 431
#011
SLIDER, CHAIN
$19.57¢9 788
#012
GUIDE, CHAIN
$4.04¢2 019
#013
GROMMET, SWINGARM
$1.15¢575
#014
SWINGARM SUB-ASSY., RR.
$880.76¢440 381
#015
SCREW, SPECIAL (5X12)
$2.24¢1 119
#016
SCREW, SPECIAL (5X14)
$2.97¢1 487
#017
BOLT, FLANGE (16X51)
$11.29¢5 644
#018
NUT, U (18MM)
$8.26¢4 131
#019
WASHER (20X31.5X2)
$3.89¢1 944
#020
WASHER, PLAIN (16MM)
$8.43¢4 213
#021
BEARING, NEEDLE
$29.82¢14 913
#022
BEARING, RADIAL BALL (20X37X9)
$21.06¢10 531
#023
DUST SEAL (28X37X4)
$7.70¢3 850
#024
DUST SEAL (27X34X4)
$9.45¢4 725
#025
O-RING (21.8X2.4)
$2.13¢1 063
#026
CIRCLIP, INNER (37MM)
$2.81¢1 406
#027
BOLT, FLANGE (6X8)
$1.21¢606
