SWITCH CABLE MIRROR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

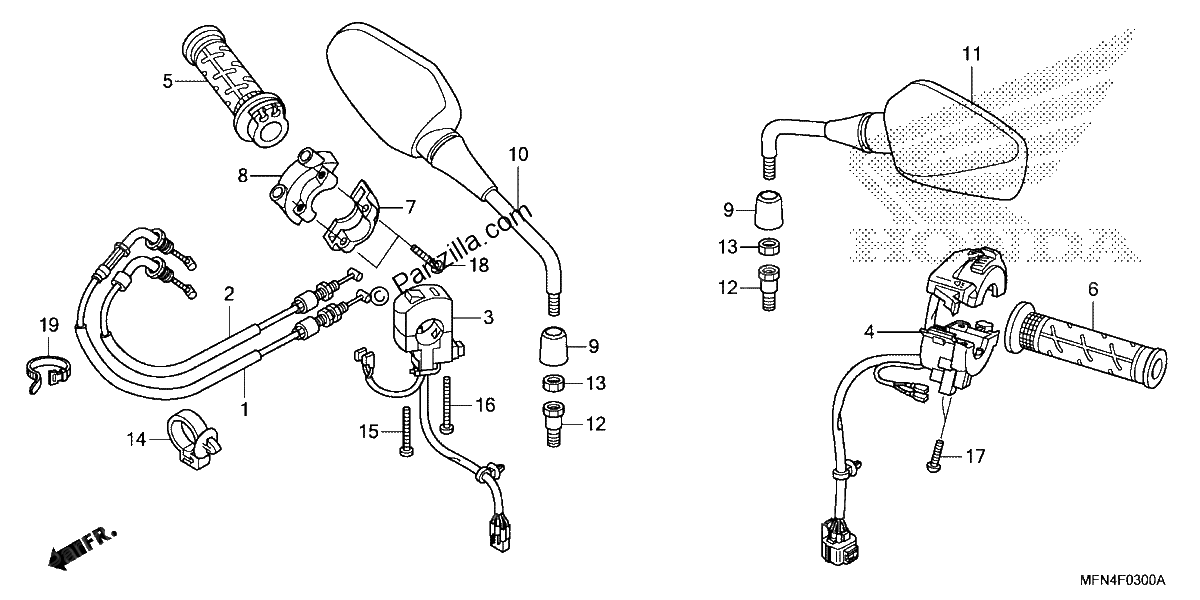

Diagrama de SWITCH CABLE MIRROR

Repuestos

#001
17910-MFN-D61
CABLE A, THROTTLE
$33.23¢16 617
1
#002
17920-MFN-B02
CABLE B, THROTTLE
$36.29¢18 147
1
#003
35130-MFN-D01
SWITCH ASSY., ENGINE STOP
$63.10¢31 550
1
#004
35200-MFN-L61
SWITCH ASSY., TURN SIGNAL
No Disponible
1
#005
53140-MGS-305
GRIP, THROTTLE (COO)
$30.26¢15 128
1
#005
53140-MGS-D30
GRIP, THROTTLE
$30.26¢15 128
1
#006
53150-MGS-305
GRIP, L HANDLE (COO)
$12.95¢6 474
1
#006
53150-MGS-D30
GRIP, L HANDLE
$12.95¢6 474
1
#007
53167-MV4-000
HOUSING, THROTTLE (UPPER)
$40.03¢20 016
1
#008
53168-MV4-000
HOUSING, THROTTLE (LOWER)
$43.78¢21 890
1
#009
88130-MFG-D00
COVER, LOCK NUT
$2.04¢1 018
1
#010
88210-MFN-305
MIRROR, R. BACK (COO)
$47.36¢23 679
1
#011
88220-MFN-305
MIRROR, L. BACK (COO)
$55.29¢27 646
1
#012
90003-MW3-620
BOLT, ADAPTER (10MM)
$8.69¢4 347
1
#013
90201-MW3-620
NUT, HEX. (10MM) (LEFT HAND THREAD)
$4.91¢2 455
1
#014
90652-MFG-D01
CLAMP, HARNESS
$4.58¢2 289
1
#015
93500-04032-0G
SCREW, PAN (4X32)
$0.56¢282
1
#016
93500-04045-0G
SCREW, PAN (4X45)
$1.02¢512
1
#017
93500-05020-0G
SCREW, PAN (5X20)
$0.93¢466
1
#018
93500-05022-0G
SCREW, PAN (5X22)
$1.09¢546
1
