TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

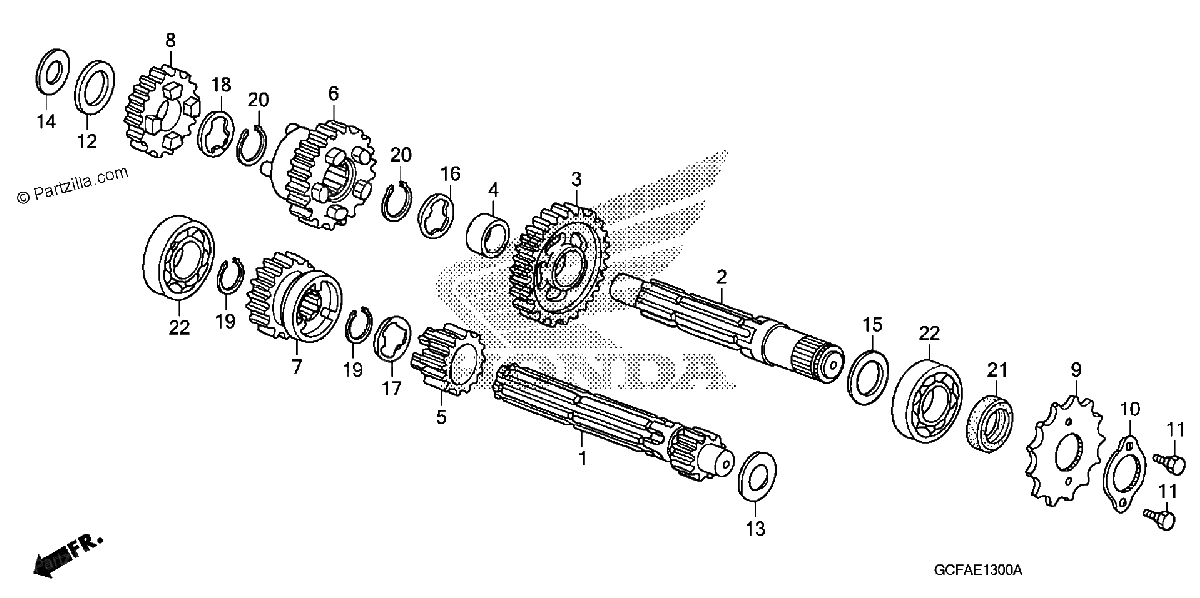

Diagrama de TRANSMISSION

Repuestos

#1
23211-GCF-A20
MAINSHAFT, TRANSMISSION (11T)
$70.54¢35 271
1
#2
23221-GCF-A20
COUNTERSHAFT
$84.57¢42 286
1
#3
23421-GCF-A20
GEAR, COUNTERSHAFT LOW (36T)
$51.09¢25 547
1
#4
23422-GB6-910
BUSH (20X10)
$20.17¢10 085
1
#5
23431-GCF-A20
GEAR, MAINSHAFT SECOND (15T)
$44.70¢22 350
1
#6
23441-GCF-A20
GEAR, COUNTERSHAFT SECOND (25T)
$72.47¢36 237
1
#7
23471-GCF-A20
GEAR, MAINSHAFT THIRD (21T)
$60.10¢30 049
1
#8
23481-GCF-A20
GEAR, COUNTERSHAFT THIRD (25T)
$53.84¢26 922
1
#9
23800-GCF-A20
SPROCKET, DRIVE (15T)
$21.45¢10 724
1
#10
23802-GC4-601
PLATE, DRIVE SPROCKET FIXING
$5.82¢2 909
1
#11
90084-041-000
BOLT, DRIVE SPROCKET FIXING
$5.14¢2 570
1
#12
90409-ML4-610
WASHER B, THRUST (30X1.7)
$5.43¢2 714
1
#13
90451-121-000
WASHER, THRUST (14MM)
$2.21¢1 104
1
#14
90451-141-000
WASHER, THRUST (13.5MM)
$13.42¢6 710
1
#15
90452-GB4-770
WASHER, THRUST (17MM)
$2.43¢1 213
1
#16
90461-GB4-770
WASHER, SPLINE (20X1.2)
$4.01¢2 007
1
#17
90461-035-000
WASHER, SPLINE (17MM)
$3.06¢1 529
1
#18
90461-459-010
WASHER, SPLINE (20MM)
$6.55¢3 278
1
#19
90601-001-000
CIRCLIP, OUTER (17MM)
$1.71¢857
1
#20
90601-459-000
CIRCLIP (20MM)
$3.36¢1 679
1
#21
91203-GB5-761
OIL SEAL (17X29X5) (NOK)
$7.80¢3 899
1
#21
91203-GBG-900
OIL SEAL (17X29X5) (NOK)
$7.80¢3 899
1
#22
96100-62030-00
BEARING, RADIAL BALL (6203)
$9.37¢4 686
1
