CYLINDER HEAD COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

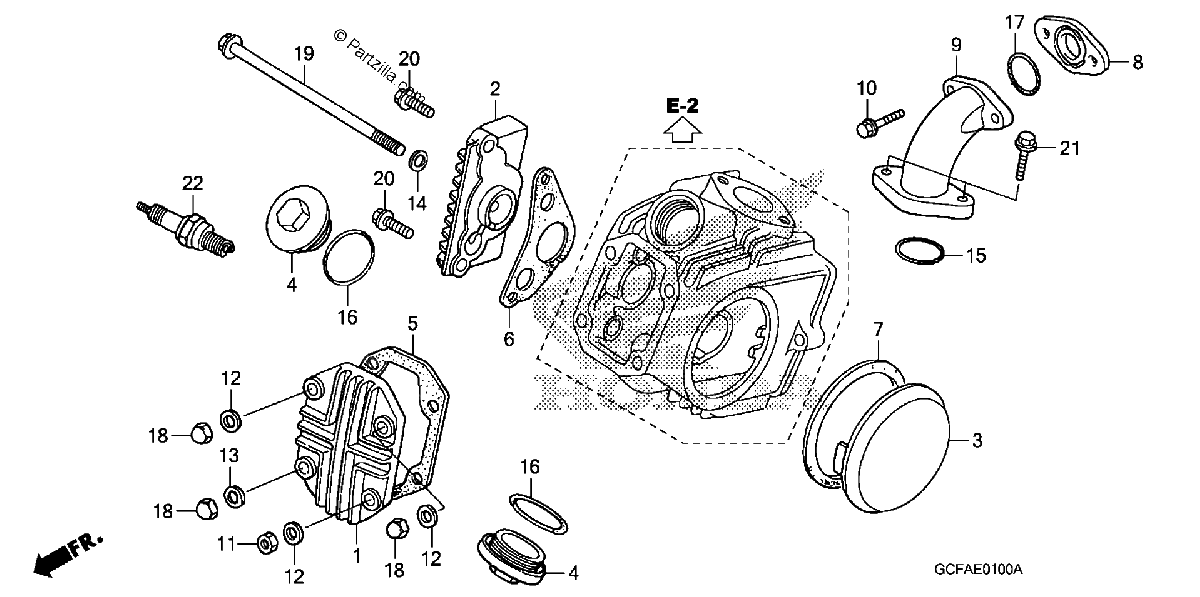

Diagrama de CYLINDER HEAD COVER

Repuestos

#1
12301-086-000
COVER, CYLINDER HEAD
$36.35¢18 175
1
#2
12331-GB0-910
COVER, R. CYLINDER HEAD SIDE
$37.81¢18 906
1
#3
12341-GB6-910
COVER, L. CYLINDER HEAD SIDE
$26.07¢13 038
1
#4
12361-035-000
CAP, TAPPET ADJUSTING HOLE
$12.51¢6 256
1
#4
12361-300-000
CAP, VALVE ADJ.
No Disponible
1
#4
12361-371-980
CAP, VALVE ADJ.
No Disponible
1
#5
12391-GW8-681
GASKET, CYLINDER HEAD COVER
$5.02¢2 512
1
#6
12394-GW8-681
GASKET, R. CYLINDER HEAD SIDE COVER
$5.06¢2 531
1
#7
12395-GW8-681
GASKET, L. CYLINDER HEAD SIDE COVER
$6.00¢3 000
1
#8
16211-GC7-010
INSULATOR, CARBURETOR
$24.91¢12 456
1
#9
17111-GCF-670
PIPE, INLET
$43.91¢21 956
1
#10
90001-GAN-670
BOLT, FLANGE (6X30)
$5.76¢2 881
1
#11
90230-087-000
NUT, HEX. (6MM)
$2.31¢1 156
1
#12
90442-035-000
WASHER, SEALING (6MM)
$2.85¢1 425
1
#13
90443-035-000
WASHER A, SEALING (6MM)
$4.41¢2 206
1
#14
90461-357-000
WASHER, SEALING (12MM)
$1.68¢838
1
#14
90463-KRM-840
WASHER, SEALING (6.2X12X1.2)
$1.68¢838
1
#15
91301-GK4-871
O-RING (27X2.0) (ARAI)
$4.80¢2 400
1
#16
91302-001-020
O-RING (30.8MM)
$4.54¢2 269
1
#17
91304-GB0-910
O-RING (20.6X1.9)
$4.58¢2 288
1
#18
94021-06200-0S
NUT, CAP (6MM)
$2.09¢1 044
1
#19
95701-06110-00
BOLT, FLANGE (6X110)
$3.75¢1 875
1
#20
96001-06020-00
BOLT, FLANGE (6X20)
$1.60¢800
1
#21
96001-06025-00
BOLT, FLANGE (6X25)
$2.70¢1 350
1
#22
98056-55718
SPARK PLUG (CR5HSA) (NGK)
$3.13¢1 563
1
#22
98056-55726
SPARK PLUG (U16FSR-U) (DENSO)
$3.17¢1 588
1
#22
98056-56718
SPARK PLUG (CR6HSA) (NGK)
$3.13¢1 563
1
#22
98056-56726
SPARK PLUG (U20FSR-U) (DENSO)
$3.02¢1 513
1
#22
98056-57718
SPARK PLUG (CR7HSA) (NGK)
$3.13¢1 563
1
#22
98056-57726
SPARK PLUG (U22FSR-U) (DENSO)
$3.02¢1 513
1
