AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

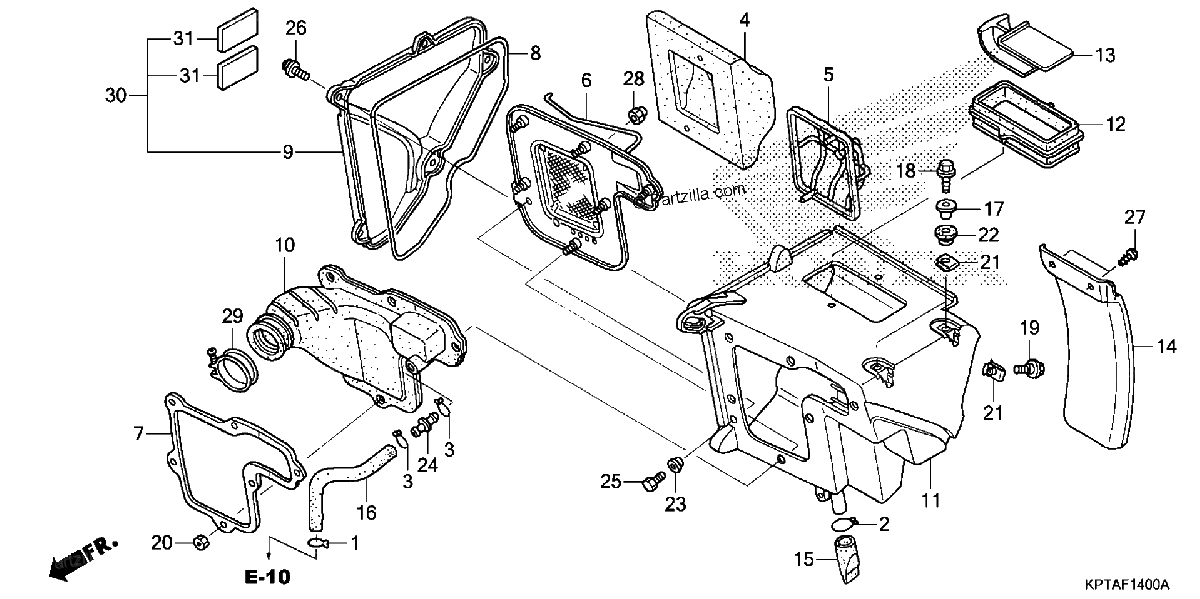

Diagrama de AIR CLEANER

Repuestos

#1
15772-164-000
CLIP, BREATHER TUBE (15MM)
$6.03¢3 013
1
#2
15772-292-010
CLIP, BREATHER TUBE
$3.65¢1 825
1
#2
15772-KPS-900
CLIP, BREATHER TUBE
$3.65¢1 825
1
#3
15772-MN1-670
CLIP B, BREATHER TUBE
$3.65¢1 825
1
#4
17213-KPS-900
ELEMENT, AIR CLEANER
$34.86¢17 431
1
#5
17214-KPS-900
HOLDER, ELEMENT
$11.74¢5 869
1
#6
17216-KPS-900
PLATE, ELEMENT SETTING
$74.96¢37 481
1
#7
17217-KPS-900
PLATE, FR. HOLDER
$6.56¢3 281
1
#8
17219-KPS-900
SEAL, AIR CLEANER COVER
$6.16¢3 081
1
#9
17220-KPS-900ZA
COVER, AIR CLEANER HOUSING *NH1* (BLACK)
$11.84¢5 919
1
#10
17222-KPT-A00
TUBE, AIR CLEANER CONNECTING
No Disponible
1
#11
17230-KPS-900
HOUSING, AIR CLEANER
$673.69¢336 844
1
#12
17240-KPS-900
DUCT, AIR CLEANER IN.
$23.88¢11 938
1
#13
17241-KPS-900
CAP, IN. DUCT
$3.52¢1 763
1
#14
17245-KPS-900
SPLASH GUARD
$13.21¢6 606
1
#15
17358-170-000
TUBE, DRAIN
$4.54¢2 269
1
#16
17371-KPT-A00
TUBE, BREATHER
$15.10¢7 550
1
#17
83505-KPS-900
COLLAR, COVER MOUNTING
$1.23¢613
1
#18
90040-GHR-680
BOLT, FLANGE (6X20)
$1.19¢594
1
#18
90104-KPS-900
BOLT, FLANGE (6X20)
$1.19¢594
1
#19
90111-KPS-900
BOLT, FLANGE (6MM)
$1.27¢638
1
#19
90120-KRM-860
BOLT, FLANGE (6MM)
$1.27¢638
1
#20
90201-GHR-E20
NUT, HEX. (5MM)
$1.45¢725
1
#21
90311-KPS-900
NUT, CLIP (6MM)
$3.04¢1 519
1
#22
90505-MC4-000
GROMMET A, AIR CLEANER HOUSING
$3.71¢1 856
1
#23
90520-134-000
WASHER, HEADLIGHT CASE SETTING
$3.43¢1 713
1
#24
91463-KPS-900
JOINT, TUBE
$1.85¢925
1
#25
92101-05010-0A
BOLT, HEX. (5X10)
$1.13¢563
1
#26
93891-05012-07
SCREW-WASHER (5X12)
$1.47¢737
1
#27
93903-25210
SCREW, TAPPING (5X12)
$1.06¢531
1
#28
94021-05020-0S
NUT, CAP (5MM)
$0.88¢438
1
#29
95018-46250
BAND, AIR CLEANER CONNECTING TUBE (46)
$9.28¢4 638
1
