CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

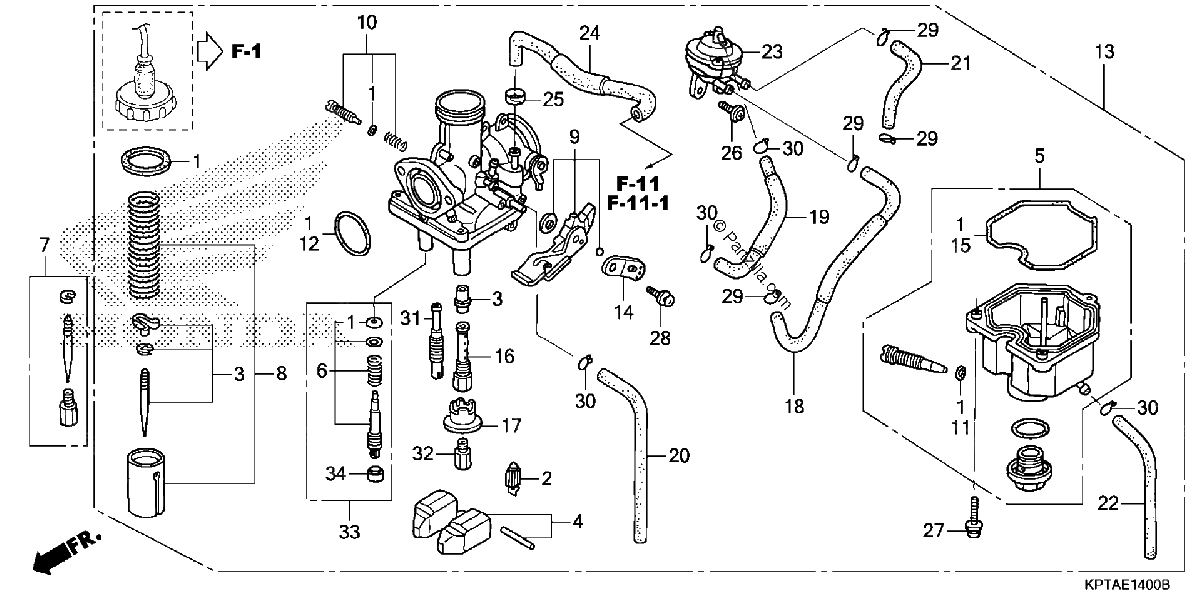

Diagrama de CARBURETOR

Repuestos

#1
16010-KCN-751
GASKET SET
$14.21¢7 106
1
#2
16011-KPS-921
VALVE SET, FLOAT
$70.64¢35 319
1
#3
16012-KPT-A01
NEEDLE SET, JET
$42.38¢21 188
1
#4
16013-KN4-A10
FLOAT SET
$40.24¢20 119
1
#5
16015-KPS-901
CHAMBER SET, FLOAT
$151.74¢75 869
1
#6
16016-KPT-A21
SCREW SET A
$28.55¢14 275
1
#8
16022-KPT-A21
VALVE SET, THROTTLE
$58.26¢29 131
1
#9
16025-KCN-751
LEVER SET, CHOKE
$49.30¢24 650
1
#10
16028-KEH-900
SCREW SET B
$13.95¢6 975
1
#10
16028-KEB-G01
SCREW SET B
$13.95¢6 975
1
#11
16075-GHB-640
O-RING (1.3X4.3)
$3.65¢1 825
1
#12
16075-GHB-B70
O-RING (2.4X29)
$9.47¢4 738
1
#13
16100-KPT-A22
CARBURETOR ASSY. (PDD6F B)
$585.31¢292 656
1
#14
16119-440-004
PLATE, STAY
$12.56¢6 281
1
#15
16163-KCS-920
GASKET, FLOAT CHAMBER
$13.83¢6 913
1
#16
16165-KEG-961
HOLDER, NEEDLE JET
$31.80¢15 900
1
#17
16168-382-014
HOLDER, JET
$10.46¢5 231
1
#18
16196-KPT-A01
TUBE
$7.16¢3 581
1
#19
16197-KEH-900
TUBE
$3.14¢1 569
1
#20
16198-KEH-900
TUBE
$3.14¢1 569
1
#21
16198-KPS-901
TUBE, AIR VENT
$7.57¢3 787
1
#22
16199-KPS-901
TUBE
$7.13¢3 563
1
#23
16510-KPT-A01
VALVE ASSY., AIR CUT
$110.41¢55 206
1
#24
17680-KPT-A20
TUBE ASSY., FUEL
$15.20¢7 600
1
#25
90641-KPT-A21
CLAMP, TUBE
$2.44¢1 219
1
#26
93892-04012-08
SCREW-WASHER (4X12)
$0.83¢413
1
#26
93892-04012-18
SCREW-WASHER (4X12)
$0.83¢413
1
#27
93892-04016-08
SCREW-WASHER (4X16)
$0.94¢469
1
#27
93892-04016-18
SCREW-WASHER (4X16)
$0.94¢469
1
#28
93892-05012-08
SCREW-WASHER (5X12)
$1.47¢737
1
#28
93892-05012-18
SCREW-WASHER (5X12)
$1.47¢737
1
#29
95002-02089
CLIP, TUBE (B1 8)
$1.34¢669
1
#30
95002-02659
CLIP, TUBE (B6.5)
$1.41¢706
1
#31
99103-KPT-0400
JET, SLOW (#40)
$12.21¢6 106
1
#32
99113-GHB-0900
JET, MAIN (#90)
$12.30¢6 150
1
#32
99113-GHB-0950
JET, MAIN (#95)
$12.30¢6 150
1
