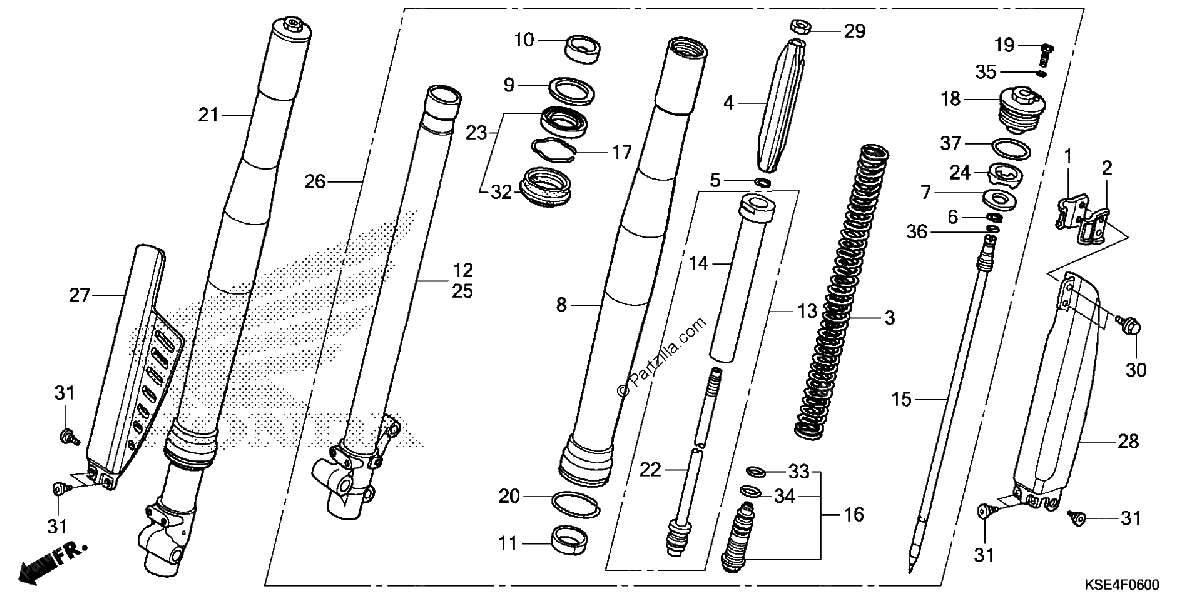

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CLAMP A, FR. BRAKE HOSE
$12.45¢6 225
#2
CLAMP B, FR. BRAKE HOSE
$10.95¢5 475
#3
SPRING, FR. FORK (3.33N/MM,0.34KGF/MM)
$85.76¢42 881
#3
SPRING, FR. FORK (3.53N/MM,0.36KGF/MM)
$89.63¢44 813
#3
SPRING, FR. FORK (3.73N/MM,0.38KGF/MM)
$77.59¢38 794
#4
GUIDE, SPRING
$33.03¢16 513
#5
RING, STOPPER
$5.42¢2 713
#6
RING, STOPPER
$3.08¢1 538
#7
SEAT, SPRING
$6.34¢3 169
#8
TUBE (OUTER) (COO)
$481.96¢240 981
#9
RING, BACK-UP
$8.54¢4 269
#10
BUSH, GUIDE
$12.01¢6 006
#11
BUSH, SLIDER
$10.41¢5 206
#12
PIPE, R. SLIDE
$366.80¢183 400
#13
DAMPER, FR.
$225.13¢112 563
#14
DAMPER SUB, FR.
$159.63¢79 813
#15
NEEDLE, REBOUND
$39.86¢19 931
#16
BOLT, CENTER (SHOWA)
$88.11¢44 056
#17
RING, OIL SEAL STOPPER
$4.58¢2 288
#18
BOLT, FR. FORK
$70.75¢35 375
#19
BOLT, PLUG
$11.20¢5 600
#20
RING, WEAR
$4.19¢2 094
#21
FORK SUB-ASSY., R. FR. (COO)
$1120.04¢560 019
#22
ROD, PISTON
$103.18¢51 588
#23
SEAL SET, FR. FORK
$28.44¢14 219
#24
RUBBER, STOPPER
$7.51¢3 756
#25
PIPE, L. SLIDE
$366.80¢183 400
#26
FORK SUB-ASSY., L. FR. (COO)
$1120.04¢560 019
#27
PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL)
$73.88¢36 938
#28
PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL)
$73.88¢36 938
#29
NUT, HEX. (10MM)
$3.20¢1 600
#30
BOLT, FLANGE (6MM)
$3.65¢1 825
#31
BOLT, PROTECTOR
$4.28¢2 138
#32
DUST SEAL
$15.51¢7 756
#33
O-RING (15.5X1.5)
$1.95¢975
#34
O-RING (18.8X1.9)
$3.50¢1 750
#35
O-RING (2.8X1.9)
$2.60¢1 300
#36
O-RING
$3.36¢1 681
#37
O-RING (37.2X2.4) (SHOWA)
$3.65¢1 825
