HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

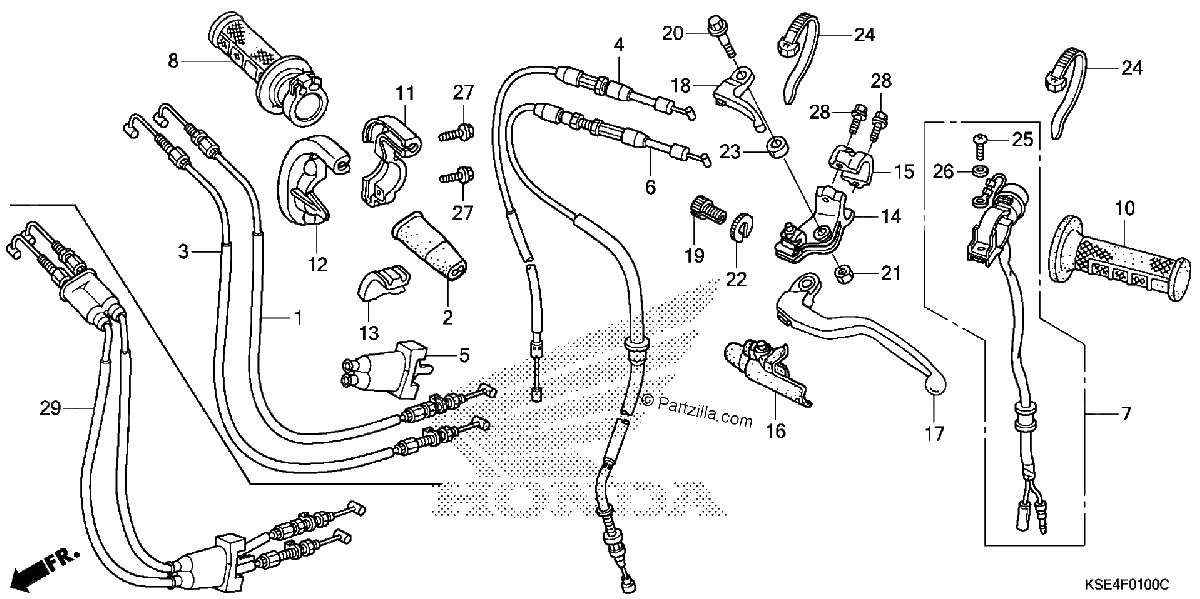

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#4
17950-KSE-000
CABLE, HOT STARTER
$27.81¢13 906
1
#6
22870-KSE-000
CABLE, CLUTCH
$25.20¢12 600
1
#7
35130-KSE-671
SWITCH ASSY., ENGINE STOP
$45.23¢22 613
1
#8
53140-KSE-000
GRIP, THROTTLE
$23.57¢11 788
1
#8
53140-KSE-305
GRIP, THROTTLE (COO)
$23.57¢11 788
1
#10
53166-KPT-305
GRIP, L. HANDLE (COO)
$12.01¢6 006
1
#11
53167-MEB-672
HOUSING, THROTTLE (UPPER)
$25.00¢12 500
1
#12
53168-KRN-A90
HOUSING, THROTTLE (LOWER)
$34.24¢17 119
1
#12
53168-MEB-671
HOUSING, THROTTLE (LOWER)
$34.24¢17 119
1
#13
53169-KSE-000
SLIDER, THROTTLE CABLE
$5.72¢2 863
1
#14
53172-MEB-670
BRACKET, L. HANDLE LEVER
$36.52¢18 263
1
#15
53174-KCE-670
HOLDER, L. LEVER BRACKET
$15.63¢7 813
1
#16
53177-MEB-670
COVER, L. HANDLE LEVER
$17.30¢8 650
1
#17
53178-MAC-740
LEVER, L. HANDLEBAR
$23.17¢11 587
1
#17
53178-KSE-305
LEVER, L. HANDLEBAR (COO)
$23.17¢11 587
1
#18
53190-MEB-670
LEVER, HOT STARTER
$23.49¢11 744
1
#19
53192-203-000
BOLT, CLUTCH WIRE ADJUSTING
$10.65¢5 325
1
#20
90112-MEB-670
BOLT, LEVER PIVOT (NSHF)
$3.71¢1 856
1
#21
90301-782-000
NUT, U (6MM)
$1.99¢994
1
#22
90321-315-670
NUT, FIXING
$8.86¢4 431
1
#23
90501-KV6-670
WASHER, PLAIN (7MM)
$2.40¢1 200
1
#24
90650-KV6-003
BAND, WIRE (95MM)
$3.77¢1 888
1
#25
93500-04012-0A
SCREW, PAN (4X12)
$1.06¢531
1
#25
93500-04012-1A
SCREW, PAN (4X12)
$1.06¢531
1
#26
94111-04000
WASHER, SPRING (4MM)
$1.38¢688
1
#27
96001-06018-07
BOLT, FLANGE (6X18)
$1.63¢813
1
#28
96001-06022-00
BOLT, FLANGE (6X22)
$1.60¢800
1
#29
17900-KSE-710
CABLE, THROTTLE
$41.81¢20 906
1
