CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

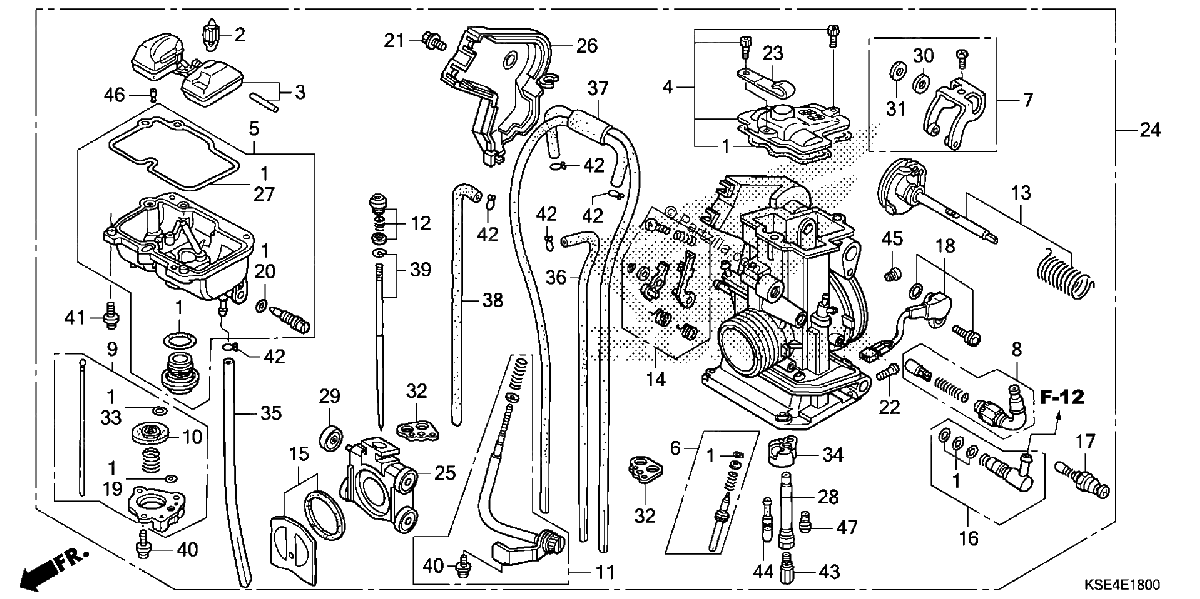

Diagrama de CARBURETOR

Repuestos

#1
16010-MEN-851
GASKET SET
$30.50¢15 250
1
#2
16011-KSE-671
VALVE SET, FLOAT
$21.45¢10 725
1
#3
16013-MEB-671
FLOAT SET
$35.41¢17 706
1
#4
16014-KSE-671
TOP SET
$54.01¢27 006
1
#5
16015-KSC-A11
CHAMBER SET, FLOAT
$108.79¢54 394
1
#6
16016-KSE-601
SCREW SET A
$34.25¢17 125
1
#7
16018-MEY-A11
ARM SET, LINK
$21.92¢10 962
1
#8
16019-MEB-671
START SET, HOT
$34.01¢17 006
1
#9
16021-KSE-A71
PUMP SET, DIAPHRAGM
$75.00¢37 500
1
#11
16028-KSE-A71
SCREW SET B
$54.18¢27 088
1
#12
16029-MEY-A11
SCREW SET, JET NEEDLE
$14.86¢7 431
1
#13
16032-KSE-A71
SHAFT SET, THROTTLE
$113.07¢56 537
1
#14
16033-KSE-A71
LEVER SET, PUMP
$36.67¢18 338
1
#15
16037-KSE-671
VALVE SET, FLOATING
$179.86¢89 931
1
#16
16038-MEB-671
JOINT SET, FUEL
$9.61¢4 806
1
#17
16046-MEB-671
VALVE SET, STARTER
$34.05¢17 025
1
#18
16060-KSE-671
SENSOR ASSY., THROTTLE
$154.43¢77 213
1
#20
16076-ND5-004
O-RING (1.3X4.3)
$3.20¢1 600
1
#21
16080-HP1-601
BOLT, COVER
$4.94¢2 469
1
#22
16083-MEB-671
SCREW, PAN
$1.95¢975
1
#23
16088-MEN-731
CLIP
$9.68¢4 838
1
#24
16100-KSE-A72
CARBURETOR ASSY. (FCR08D A)
$1496.64¢748 319
1
#25
16112-KSE-601
VALVE, THROTTLE
$316.79¢158 394
1
#26
16157-MEN-A01
COVER, THROTTLE
$29.50¢14 750
1
#27
16163-MEB-671
GASKET, FLOAT CHAMBER
$15.26¢7 631
1
#28
16165-MEY-A11
HOLDER, NEEDLE JET
$15.35¢7 675
1
#29
16172-MEB-671
ROLLER
$9.94¢4 969
1
#30
16177-MEB-671
WASHER, PLAIN (PO)
$2.03¢1 013
1
#31
16178-MEB-671
WASHER, PLAIN (SUS)
$1.80¢900
1
#32
16178-MEN-851
BINDER
$6.38¢3 188
1
#34
16185-MEN-671
PLATE, BUFFER
$13.08¢6 538
1
#35
16196-KSE-E31
TUBE, OVERFLOW
$15.64¢7 819
1
#36
16197-MEB-671
TUBE, AIR VENT
$7.69¢3 844
1
#37
16198-KSE-671
TUBE, AIR VENT
$15.88¢7 938
1
#38
16199-MEB-671
TUBE, AIR VENT
$7.69¢3 844
1
#39
16204-KSE-601
NEEDLE SET, JET (NMQT)
$40.29¢20 144
1
#40
93892-04008-08
SCREW-WASHER (4X8)
$1.47¢737
1
#40
93892-04008-18
SCREW-WASHER (4X8)
$1.47¢737
1
#41
93892-04014-18
SCREW-WASHER (4X14)
$1.35¢675
1
#41
93892-04014-08
SCREW-WASHER (4X14)
$1.35¢675
1
#42
95002-02079
CLIP, TUBE (B7)
$1.54¢769
1
#43
99101-357-1380
JET, MAIN (#138)
$10.82¢5 413
1
#43
99101-357-1400
JET, MAIN (#140)
$10.00¢5 000
1
#44
99103-440-0380
JET, SLOW (#38)
$15.31¢7 656
1
#44
99103-KA3-0380
JET, SLOW (#38)
$15.31¢7 656
1
#44
99103-KBA-0380
JET, SLOW (#38)
$15.31¢7 656
1
#46
99108-KRN-0700
JET, LEAK (#70)
$16.57¢8 288
1
#46
99108-KRN-0750
JET, LEAK (#75)
$16.50¢8 250
1
#46
99108-KSC-0650
JET, LEAK (#65)
$10.39¢5 194
1
#46
99108-KSE-0600
JET, LEAK (#60)
$10.74¢5 369
1
#46
99108-MEB-0550
JET, LEAK (#55)
$11.15¢5 575
1
#47
99112-KRN-0680
JET, BY-STARTER (#68)
$14.04¢7 019
1
