MUFFLER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

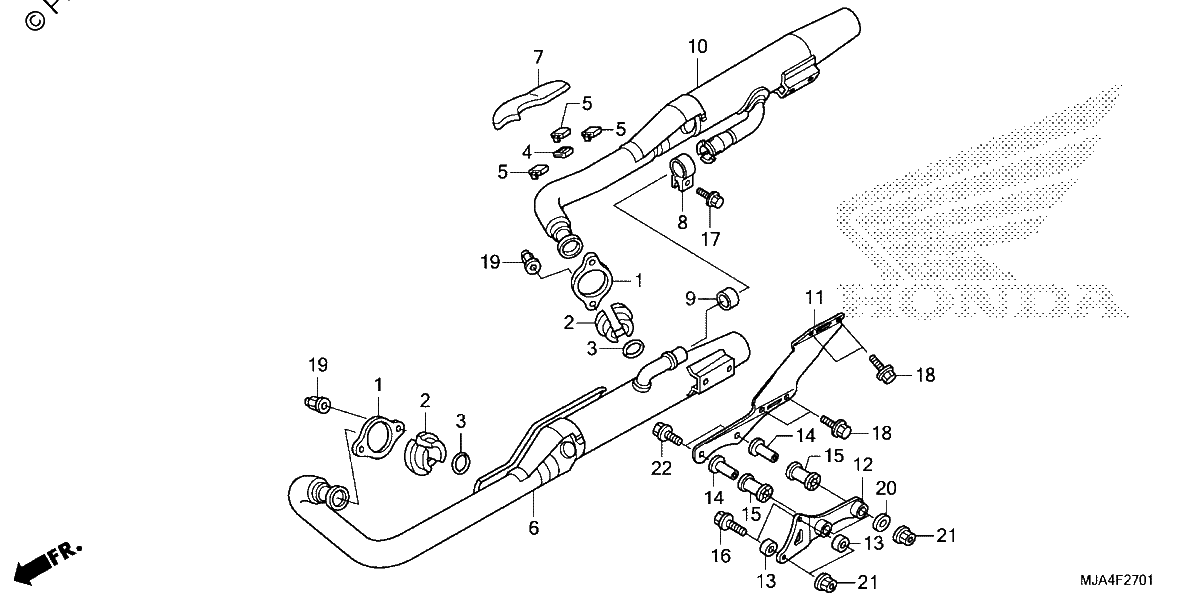

Diagrama de MUFFLER 2

Repuestos

#001
18231-MBA-003
JOINT, EX PIPE
$31.01¢15 506
1
#002
18233-MR1-010
COLLAR, EX PIPE JOINT
$12.29¢6 144
1
#003
18291-MM5-860
GASKET, EX. PIPE
$6.26¢3 131
1
#004
18293-MFE-B00
RUBBER, PROTECTOR GASKET
$3.84¢1 919
1
#005
18293-MN0-000
RUBBER, PROTECTOR
$2.75¢1 375
1
#006
18300-MGR-305
MUFFLER, FR. EX. (COO)
$2088.56¢1 044 281
1
#006
18300-MGR-672
MUFFLER, Front EX.
$2088.56¢1 044 281
1
#007
18315-MGR-671
PROTECTOR, RR. EX.
$169.57¢84 788
1
#008
18373-ML4-003
BAND, R. EX. PIPE
$41.50¢20 750
1
#009
18391-ML8-000
GASKET, MUFFLER
$10.76¢5 381
1
#010
18400-MGR-305
MUFFLER, RR. EX. (COO)
No Disponible
1
#011
18415-MGR-670
STAY, MUFFLER
$86.70¢43 350
1
#012
18455-MGR-670
BRACKET, MUFFLER
$130.51¢65 256
1
#013
18456-MGR-670
COLLAR, MUFFLER BRACKET
$7.18¢3 588
1
#014
50607-KK6-000
COLLAR, MOUNTING RUBBER
$10.67¢5 337
1
#015
50608-KK6-000
RUBBER, MUFFLER MOUNTING
$9.45¢4 725
1
#016
90105-MGR-670
BOLT, FLANGE (8X45)
$4.74¢2 369
1
#017
90125-MGR-670
BOLT, FLANGE (8X32)
$3.91¢1 956
1
#018
90166-S87-A00
BOLT, FLANGE (8X16)
$0.90¢450
1
#019
90304-ME1-670
NUT, CAP (8MM)
$7.21¢3 606
1
#020
90501-KK6-000
WASHER (8.3MM)
$3.20¢1 600
1
#021
94050-08070
NUT, FLANGE (8MM)
$1.93¢963
1
#022
95701-08055-07
BOLT, FLANGE (8X55)
$2.38¢1 188
1
