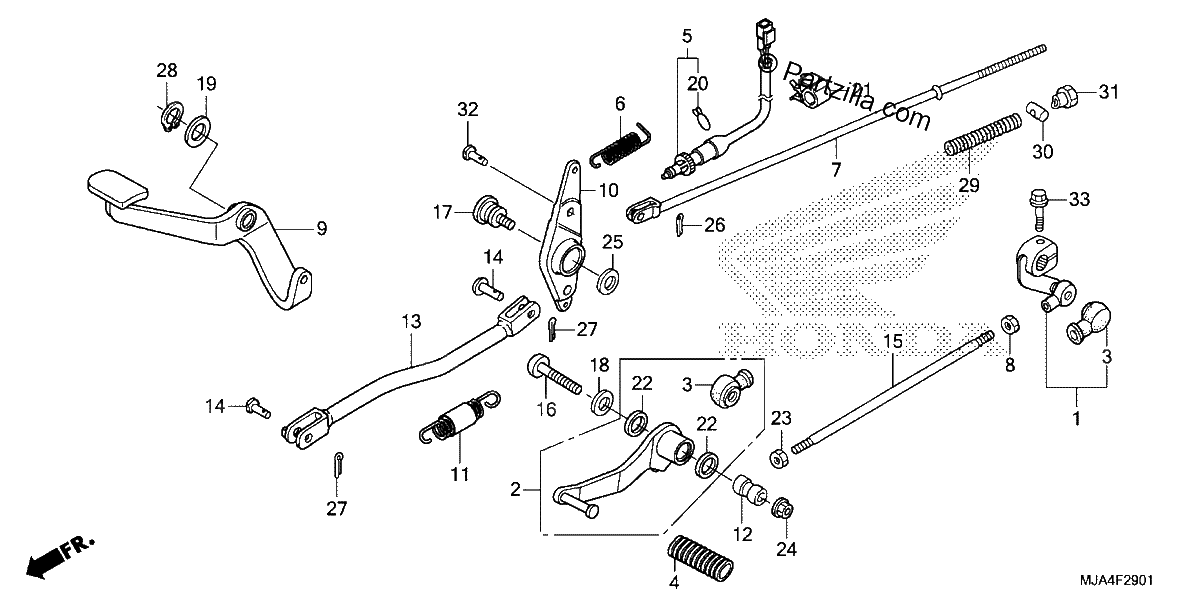

PEDAL 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
ARM, GEARSHIFT
$65.16¢32 581
#002
PEDAL, GEARSHIFT (COO)
$118.55¢59 275
#002
PEDAL, GEARSHIFT
$118.55¢59 275
#003
COVER, DUST
$8.45¢4 225
#004
RUBBER, GEARSHIFT PEDAL
$4.11¢2 056
#005
SWITCH ASSY., RR. STOP
$40.43¢20 213
#005
SWITCH Assembly., Rear STOP
$40.43¢20 213
#006
SPRING, STOP SWITCH
$5.94¢2 969
#007
ROD, RR. BRAKE
$22.63¢11 313
#008
NUT, HEX. (6MM) (LEFT HAND THREAD)
$1.99¢994
#009
PEDAL, RR. BRAKE (COO)
$152.91¢76 456
#009
PEDAL, Rear BRAKE
$152.91¢76 456
#010
ARM, RR. BRAKE MIDDLE (COO)
$63.88¢31 938
#011
SPRING SET, BRAKE PEDAL
$9.32¢4 663
#012
COLLAR, RR. BRAKE PIVOT
$13.60¢6 800
#013
ROD, RR. BRAKE MIDDLE
$60.74¢30 369
#014
PIN, MIDDLE ROD JOINT
$8.69¢4 344
#015
BOLT, TIE ROD
$5.39¢2 694
#016
BOLT, SOCKET (10X54)
$5.19¢2 594
#017
BOLT B, PIVOT
$15.64¢7 819
#018
WASHER (10.3MM)
$3.08¢1 538
#019
WASHER (15.2X25)
$3.08¢1 538
#020
CLIP, SWITCH COVER
$3.44¢1 719
#021
CLIP, CABLE (10MM)
$2.81¢1 406
#022
DUST SEAL (17X23X3) (NOK)
$4.47¢2 238
#023
NUT, HEX. (6MM)
$1.68¢838
#024
NUT, FLANGE (10MM)
$1.90¢950
#025
WASHER, PLAIN (10MM)
$1.15¢575
#026
PIN, SPLIT (2.0X12)
$1.27¢638
#027
PIN, SPLIT (2.0X15)
$1.34¢669
#028
CIRCLIP, OUTER (15MM)
$0.88¢438
#029
SPRING A, BRAKE ROD
$1.66¢831
#030
JOINT B, BRAKE ARM
$1.21¢606
#031
NUT B, BRAKE ROD ADJUSTING
$2.48¢1 238
#032
PIN C, JOINT
$3.71¢1 856
#033
BOLT, FLANGE (6X20)
$2.27¢1 138
