RADIATOR 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

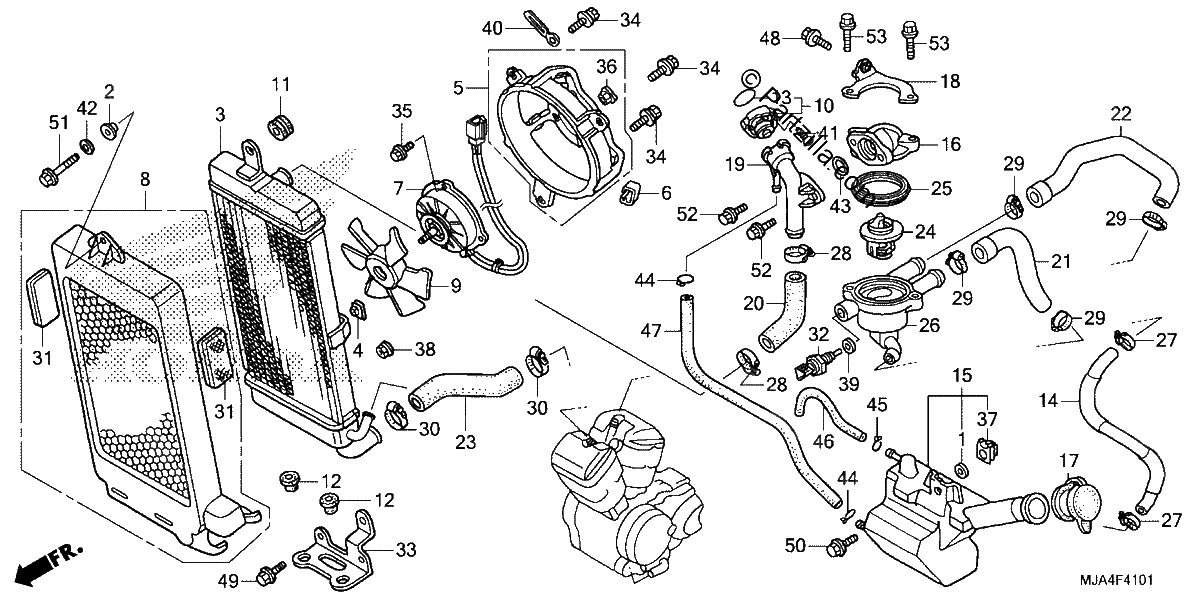

Diagrama de RADIATOR 2

Repuestos

#001
16573-ZE6-300
COLLAR, CONTROL
$3.25¢1 627
1
#002
17216-HA7-670
COLLAR, AIR CLEANER SETTING
$6.87¢3 433
1
#003
19010-MGR-305
RADIATOR (COO)
$661.81¢330 907
1
#003
19010-MGR-671
RADIATOR
$661.81¢330 907
1
#004
19014-KEA-003
NUT, SETTING (6MM)
$3.45¢1 725
1
#005
19015-MBA-003
SHROUD
$63.70¢31 849
1
#005
19015-MBA-305
SHROUD (COO)
$63.70¢31 849
1
#006
19017-PK1-004
CLIP, HARNESS (TOYO)
$11.42¢5 710
1
#007
19030-MGR-671
MOTOR ASSY., FAN
$384.36¢192 182
1
#008
19035-MBA-671
GRILLE, RADIATOR
$122.01¢61 007
1
#009
19040-MF5-751
FAN, COOLING (TOYO)
$74.88¢37 438
1
#010
19045-MY3-621
CAP, RADIATOR
$43.54¢21 769
1
#011
19051-KA3-710
RUBBER, RADIATOR MOUNTING
$5.63¢2 818
1
#012
19051-MB2-000
RUBBER, RADIATOR MOUNTING
$5.04¢2 519
1
#013
19055-MV9-881
SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)
$9.92¢4 962
1
#014
19071-MGR-670
HOSE, BYPASS
$35.50¢17 750
1
#015
19101-MBA-010
TANK Assembly., RESERVE
$32.03¢16 014
1
#015
19101-MBA-305
TANK ASSY., RESERVE (COO)
$32.03¢16 014
1
#016
19103-MGR-670
CAP, THERMOSTAT
$35.48¢17 739
1
#017
19104-MB0-700
CAP, RESERVE TANK
$12.99¢6 498
1
#018
19105-MGR-670
STAY, THERMOSTAT CASE
$5.88¢2 938
1
#019
19106-MM8-000
NECK, FILLER
$69.62¢34 811
1
#020
19107-MGR-670
HOSE, RADIATOR (UPPER)
$12.76¢6 382
1
#021
19108-MGR-670
HOSE, FR. OUTLET WATER
$11.21¢5 606
1
#022
19110-MGR-670
HOSE, RR. OUTLET WATER
$17.27¢8 637
1
#023
19115-MBA-000
HOSE, RADIATOR (LOWER)
$26.01¢13 006
1
#024
19300-MCH-A00
THERMOSTAT ASSY.
$51.03¢25 513
1
#025
19305-KV3-010
RUBBER, THERMOSTAT
$6.76¢3 381
1
#026
19310-MGR-670
CASE, THERMOSTAT
$55.49¢27 744
1
#027
19504-KY1-003
CLAMP, WATER HOSE (25MM)
$11.07¢5 537
1
#028
19505-ML3-770
CLAMP, WATER HOSE
$7.89¢3 944
1
#029
19506-KS6-700
CLAMP B, WATER HOSE
$8.37¢4 186
1
#030
19509-MM5-003
CLAMP, RADIATOR HOSE
$14.60¢7 302
1
#031
33745-MBA-670
REFLECTOR SET, FR. REFLEX
$33.35¢16 675
1
#032
37870-KRJ-901
SENSOR ASSY., WATER TEMPERATURE
$33.09¢16 543
1
#033
50175-MBA-000
STAY, RADIATOR
$20.26¢10 131
1
#034
90120-KCR-003
BOLT-WASHER (6X16)
$4.90¢2 449
1
#035
90196-MBB-003
BOLT, FLANGE (5X10)
$3.15¢1 576
1
#036
90303-MBB-003
NUT, SPECIAL (5MM)
$4.45¢2 225
1
#037
90305-KT7-000
NUT, CLIP (6MM)
$4.86¢2 432
1
#038
90315-MK3-003
NUT, SERRATE (5MM)
$2.75¢1 374
1
#039
90454-MC7-000
WASHER, SPECIAL (12MM)
$3.09¢1 547
1
#040
91413-679-000
CLIP (2X70)
$9.95¢4 974
1
#041
93901-22180
SCREW, TAPPING (3X8)
$1.07¢535
1
#042
94101-06700
WASHER, PLAIN (6MM)
$1.12¢558
1
#043
94608-30000
O-RING (23X2.4)
$1.41¢707
1
#044
95002-02120
CLIP, TUBE (B12)
$2.20¢1 098
1
#045
95002-50000
CLIP, TUBE (C9)
$1.41¢707
1
#046
95005-50003-30M
BULK HOSE, VACUUM (5X3000) (5X300)
$22.44¢11 218
1
#047
95005-75001-20M
BULK HOSE, VACUUM (7.3X1000) OEM CUT SIZE: (7.3X500)
$24.14¢12 069
1
#048
95701-06012-00
BOLT, FLANGE (6X12)
$1.92¢960
1
#049
95701-06014-07
BOLT, FLANGE (6X14)
$1.63¢816
1
#050
95701-06016-00
BOLT, FLANGE (6X16)
$1.92¢960
1
#051
95701-06030-07
BOLT, FLANGE (6X30)
$2.22¢1 110
1
#052
96001-06014-00
BOLT, FLANGE (6X14)
$2.13¢1 064
1
#053
96001-06020-00
BOLT, FLANGE (6X20)
$1.47¢736
1
