SIDE COVER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

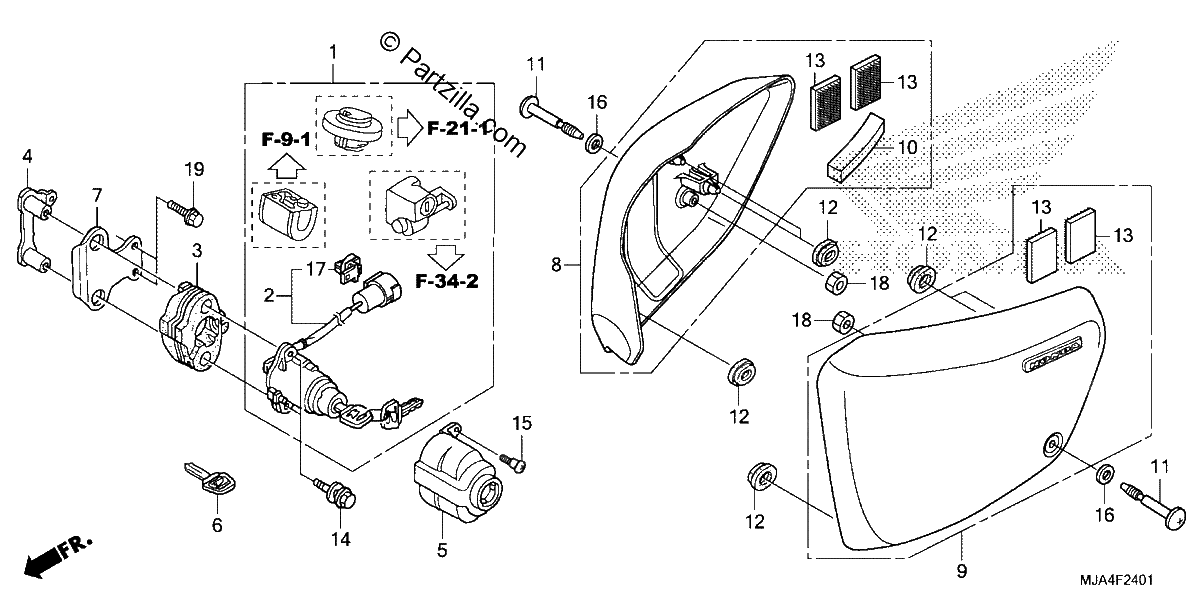

Diagrama de SIDE COVER 2

Repuestos

#001
35010-MGR-670
LOCK SET
$345.14¢172 569
1
#002
35100-MGR-671
SWITCH ASSY., COMBINATION (HONDALOCK)
$127.75¢63 875
1
#003
35102-MR1-000
BASE, COMBINATION SWITCH
$17.56¢8 781
1
#004
35103-MBA-000
COLLAR, COMBINATION SWITCH
$21.13¢10 563
1
#005
35110-MZ5-000
COVER, COMBINATION SWITCH
$26.02¢13 013
1
#006
35121-MR1-770
KEY, BLANK (TYPE1) (KEY NO AXX / BXX)
$11.39¢5 694
1
#006
35122-MR1-770
KEY, BLANK (TYPE2) (KEY NO. CXX / DXX)
$11.39¢5 694
1
#007
50177-MBA-000
STAY, IGNITION SWITCH
$12.79¢6 394
1
#008
63000-MGR-670ZA
COVER SET, Right SIDE NHB01 (WL)NHRAPHITE BLACK)
$187.75¢93 875
1
#009
63100-MGR-670ZA
COVER SET, L. SIDE *NHB01* (WL) (GRAPHITE BLACK)
$187.75¢93 875
1
#010
64321-MGR-670
CUSHION, SIDE COVER
$4.36¢2 181
1
#011
83550-MGR-670
LATCH, TOOL BOX
$6.85¢3 425
1
#012
83551-300-000
GROMMET, AIR CLEANER HOUSING
$4.45¢2 225
1
#013
83643-355-300
TAPE, MAGIC (25X50) (FEMALE)
$3.65¢1 825
1
#014
90107-KR3-630
BOLT, BREAK OFF (6MM)
$12.72¢6 363
1
#015
90114-GB6-920
SCREW, RR. COVER
$2.03¢1 013
1
#016
90401-KM1-000
WASHER, BODY COVER SETTING
$1.44¢719
1
#017
91565-SEL-003
CLIP, CONNECTOR (BLACK)
$4.45¢2 225
1
#018
94001-06000-0S
NUT, HEX. (6MM)
$1.68¢838
1
#018
94001-06200-0S
NUT, HEX. (6MM)
$1.68¢838
1
#019
95701-06012-00
BOLT, FLANGE (6X12)
$2.09¢1 044
1
