HANDLEBAR 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

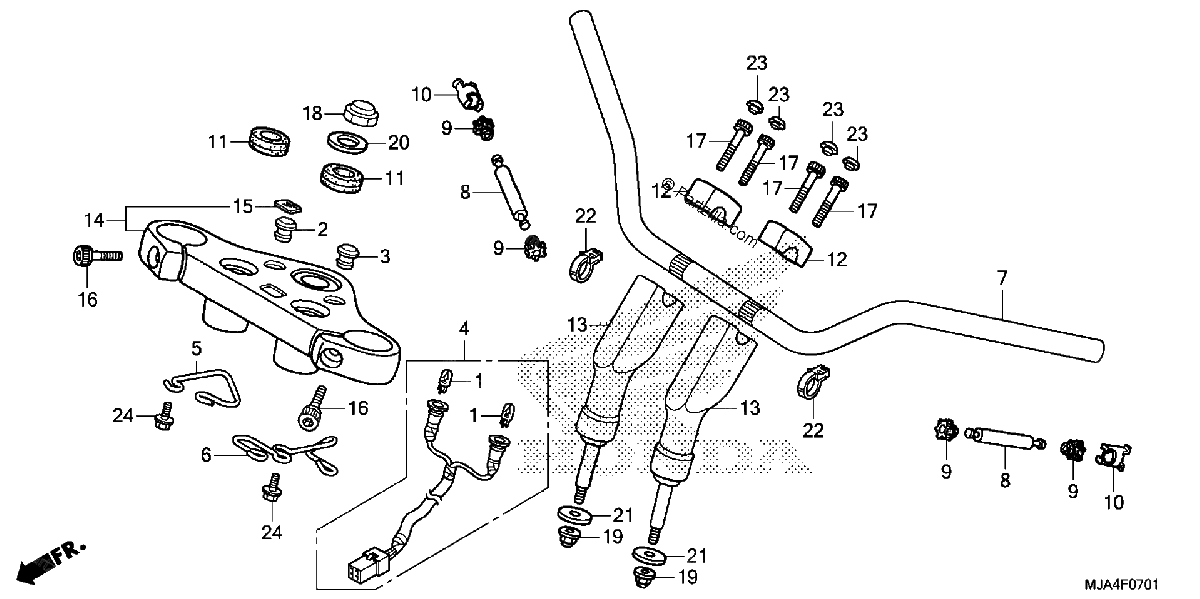

Diagrama de HANDLEBAR 2

Repuestos

#001
34908-KW3-003
BULB, WEDGE BASE (12V 3.4W) (STANLEY)
$4.34¢2 168
1
#1
34908-KW3-003
BULB, WEDGE BASE (12V 3.4W) (STANLEY)
$4.34¢2 168
1
#002
37551-MZ0-018
LENS, HIGH BEAM PILOT (BLUE)
$9.75¢4 876
1
#2
37551-MZ0-018
LENS, HIGH BEAM PILOT (BLUE)
$9.75¢4 876
1
#003
37581-MBS-008
LENS, FUEL PILOT (ORANGE)
$9.94¢4 968
1
#3
37581-MBS-008
LENS, FUEL PILOT (ORANGE)
$9.94¢4 968
1
#004
37605-MFE-641
SOCKET ASSY., PILOT
$63.42¢31 711
1
#4
37605-MFE-641
SOCKET ASSY., PILOT
$63.42¢31 711
1
#005
45135-MFE-670
GUIDE, R. CABLE
$14.65¢7 326
1
#5
45135-MFE-670
GUIDE, R. CABLE
$14.65¢7 326
1
#006
45136-MFE-670
GUIDE, L. CABLE
$25.94¢12 972
1
#6
45136-MFE-670
GUIDE, L. CABLE
$25.94¢12 972
1
#007
53100-MFE-A20
HANDLEBAR
$151.57¢75 785
1
#7
53100-MFE-305
HANDLEBAR (COO)
$151.57¢75 785
1
#007
53100-MFE-305
HANDLEBAR (COO)
$151.57¢75 785
1
#008
53106-KG1-920
WEIGHT, HANDLE
$14.39¢7 193
1
#8
53106-KG1-920
WEIGHT, HANDLE
$14.39¢7 193
1
#9
53107-MM8-000
RUBBER, HANDLE WEIGHT
$5.44¢2 720
1
#009
53107-MM8-000
RUBBER, HANDLE WEIGHT
$5.44¢2 720
1
#010
53108-KW9-920
RING, HANDLE WEIGHT SNAP
$7.85¢3 927
1
#10
53108-KW9-920
RING, HANDLE WEIGHT SNAP
$7.85¢3 927
1
#011
53125-KW9-700
CAP, HANDLE (LOWER)
$5.92¢2 961
1
#11
53125-KW9-700
CAP, HANDLE (LOWER)
$5.92¢2 961
1
#12
53131-MM8-000
HOLDER, HANDLE (UPPER)
$20.54¢10 269
1
#012
53131-MM8-000
HOLDER, HANDLE (UPPER)
$20.54¢10 269
1
#013
53231-MCL-000
HOLDER, HANDLE (LOWER)
$89.69¢44 844
1
#13
53231-MCL-000
HOLDER, HANDLE (LOWER)
$89.69¢44 844
1
#14
53300-MFE-640
BRIDGE Assembly., FORK TOP
$298.88¢149 442
1
#014
53300-MFE-640
BRIDGE Assembly., FORK TOP
$298.88¢149 442
1
#15
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.04¢2 018
1
#015
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.04¢2 018
1
#15
86150-KPG-902
EMBLEM, PRODUCT (UEHARA)
$4.75¢2 375
1
#015
86150-KPG-902
EMBLEM, PRODUCT (UEHARA)
$4.75¢2 375
1
#016
90112-MCL-000
BOLT, SOCKET (8X30)
$3.36¢1 679
1
#16
90112-MCL-000
BOLT, SOCKET (8X30)
$3.36¢1 679
1
#17
90154-ME9-000
BOLT, SOCKET (8X32)
$6.14¢3 070
1
#017
90154-ME9-000
BOLT, SOCKET (8X32)
$6.14¢3 070
1
#18
90304-415-000
NUT, STEERING STEM
$21.17¢10 586
1
#018
90304-415-000
NUT, STEERING STEM
$21.17¢10 586
1
#19
90309-MR1-770
NUT, FLANGE (8MM)
$3.47¢1 737
1
#019
90309-ML4-901
NUT, FLANGE (8MM)
$3.47¢1 737
1
#019
90309-MR1-770
NUT, FLANGE (8MM)
$3.47¢1 737
1
#19
90309-ML4-901
NUT, FLANGE (8MM)
$3.47¢1 737
1
#020
90503-283-000
WASHER, STEERING STEM
$4.88¢2 438
1
#20
90503-283-000
WASHER, STEERING STEM
$4.88¢2 438
1
#021
90535-MR1-770
WASHER, HANDLE HOLDER (LOWER)
$4.25¢2 128
1
#21
90535-MR1-770
WASHER, HANDLE HOLDER (LOWER)
$4.25¢2 128
1
#22
90690-GHB-701
CLIP, CABLE (17MM)
$3.36¢1 679
1
#022
90690-GHB-701
CLIP, CABLE (17MM)
$3.36¢1 679
1
#23
91455-MB0-010
CAP, SOCKET BOLT (8MM)
$4.02¢2 012
1
#023
91455-MB0-010
CAP, SOCKET BOLT (8MM)
$4.02¢2 012
1
#024
95701-08016-00
BOLT, FLANGE (8X16)
$2.13¢1 064
1
#24
95701-08016-00
BOLT, FLANGE (8X16)
$2.13¢1 064
1
