HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

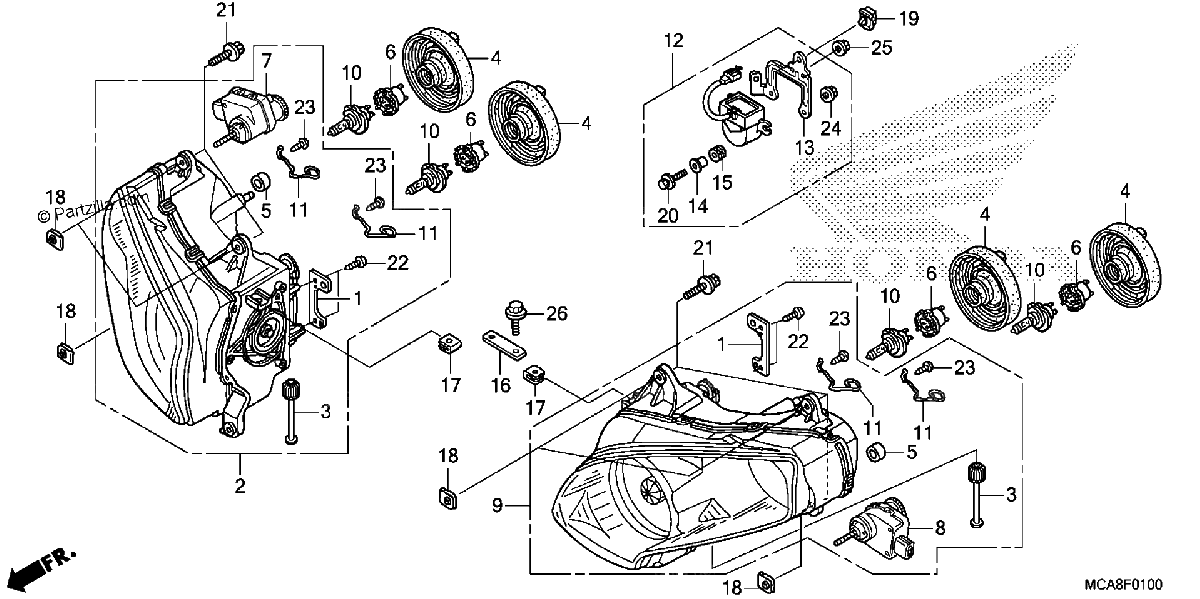

Diagrama de HEADLIGHT

Repuestos

#1
33101-MCA-A61
PLATE
$9.18¢4 589
1
#001
33101-MCA-A61
PLATE
$9.18¢4 589
1
#2
33102-MCA-305
HEADLIGHT UNIT, R. (COO)
$537.20¢268 600
1
#002
33102-MCA-305
HEADLIGHT UNIT, R. (COO)
$537.20¢268 600
1
#002
33102-MCA-S41
HEADLIGHT UNIT, Right.
$537.20¢268 600
1
#3
33103-MCA-003
SCREW, BEAM ADJUST
$11.11¢5 555
1
#003
33103-MCA-003
SCREW, BEAM ADJUST
$11.11¢5 555
1
#004
33112-KPB-003
COVER, RUBBER
$14.16¢7 078
1
#4
33112-KPB-003
COVER, RUBBER
$14.16¢7 078
1
#005
33113-MBW-D21
PIPE, CP
$3.13¢1 564
1
#5
33113-MBW-D21
PIPE, CP
$3.13¢1 564
1
#006
33130-MAT-611
SOCKET, HEADLIGHT
$17.74¢8 872
1
#6
33130-MAT-611
SOCKET, HEADLIGHT
$17.74¢8 872
1
#7
33130-MCA-003
ADJUSTER UNIT, R. HEADLIGHT
$114.56¢57 282
1
#007
33130-MCA-003
ADJUSTER UNIT, R. HEADLIGHT
$114.56¢57 282
1
#008
33135-MCA-003
ADJUSTER UNIT, L. HEADLIGHT
$121.43¢60 714
1
#8
33135-MCA-003
ADJUSTER UNIT, L. HEADLIGHT
$121.43¢60 714
1
#9
33152-MCA-305
HEADLIGHT UNIT, L. (COO)
$537.20¢268 600
1
#009
33152-MCA-305
HEADLIGHT UNIT, L. (COO)
$537.20¢268 600
1
#009
33152-MCA-S41
HEADLIGHT UNIT, Left
$537.20¢268 600
1
#010
34901-MAT-611
BULB, HEADLIGHT (12V 55W) (H7) (STANLEY)
$29.27¢14 634
1
#10
34901-MAT-611
BULB, HEADLIGHT (12V 55W) (H7) (STANLEY)
$29.27¢14 634
1
#011
34904-MCA-A61
SPRING, SUPPORTER
$5.24¢2 622
1
#11
34904-MCA-A61
SPRING, SUPPORTER
$5.24¢2 622
1
#012
35160-MCA-S41
SENSOR Assembly., BANK ANGLE
$174.27¢87 136
1
#12
35160-MCA-S41
SENSOR Assembly., BANK ANGLE
$174.27¢87 136
1
#12
35160-MCA-S42
SENSOR ASSY., BANK ANGLE
$174.27¢87 136
1
#012
35160-MCA-S42
SENSOR ASSY., BANK ANGLE
$174.27¢87 136
1
#13
35162-MCA-A61
PLATE, BANK ANGLE SENSOR
$4.30¢2 151
1
#013
35162-MCA-A61
PLATE, BANK ANGLE SENSOR
$4.30¢2 151
1
#014
35162-MN5-003
COLLAR
$8.10¢4 048
1
#14
35162-MN5-003
COLLAR
$8.10¢4 048
1
#015
35163-MN5-003
GROMMET
$3.51¢1 754
1
#15
35163-MN5-003
GROMMET
$3.51¢1 754
1
#16
64516-MCA-000
PLATE, HEADLIGHT (UPPER)
$4.58¢2 289
1
#016
64516-MCA-000
PLATE, HEADLIGHT (UPPER)
$4.58¢2 289
1
#017
90301-SM4-901
NUT, SPRING (6MM)
$7.19¢3 594
1
#17
90301-SM4-901
NUT, SPRING (6MM)
$7.19¢3 594
1
#018
90305-SM4-000
NUT, AIR SPOILER CLIP
$5.58¢2 789
1
#18
90305-SM4-000
NUT, AIR SPOILER CLIP
$5.58¢2 789
1
#019
90683-SB3-003
CLIP, WIRE HARNESS
$8.03¢4 013
1
#19
90683-SB3-003
CLIP, WIRE HARNESS
$8.03¢4 013
1
#20
93401-04025-08
BOLT-WASHER (4X25)
$0.79¢397
1
#020
93401-04025-08
BOLT-WASHER (4X25)
$0.79¢397
1
#021
93404-06025-08
BOLT-WASHER (6X25)
$2.21¢1 104
1
#21
93404-06025-08
BOLT-WASHER (6X25)
$2.21¢1 104
1
#022
93901-34320
SCREW, TAPPING (4X12)
$1.01¢506
1
#22
93901-34320
SCREW, TAPPING (4X12)
$1.01¢506
1
#023
93903-34210
SCREW, TAPPING (4X10)
$1.07¢535
1
#23
93903-34210
SCREW, TAPPING (4X10)
$1.07¢535
1
#024
94050-04000
NUT, FLANGE (4MM)
$1.45¢724
1
#24
94050-04000
NUT, FLANGE (4MM)
$1.45¢724
1
#25
94050-05080
NUT, FLANGE (5MM)
$0.41¢207
1
#025
94050-05080
NUT, FLANGE (5MM)
$0.41¢207
1
#26
96001-06018-00
BOLT, FLANGE (6X18)
$2.04¢1 018
1
#026
96001-06018-00
BOLT, FLANGE (6X18)
$2.04¢1 018
1
