SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

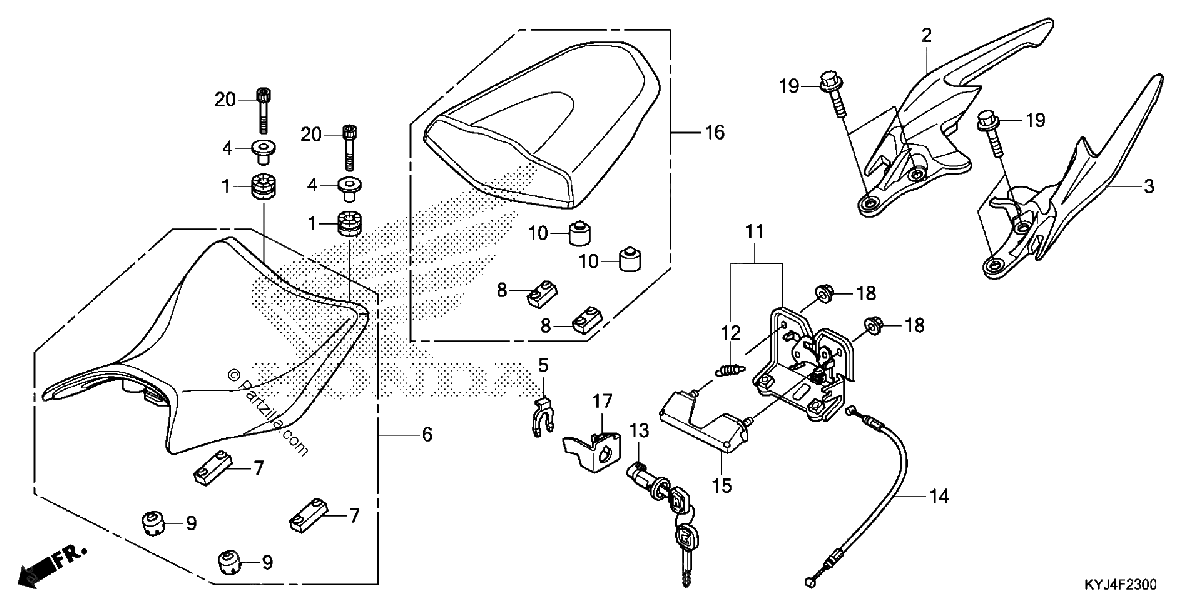

Diagrama de SEAT

Repuestos

#1
33705-KW7-900
RUBBER A, TAILLIGHT MOUNTING
$2.86¢1 432
1
#001
33705-KW7-900
RUBBER A, TAILLIGHT MOUNTING
$2.86¢1 432
1
#2
50315-KPP-T00ZA
GRIP, Right Rear. NH303M (MAT AXIS GRAY METALLIC)
$39.89¢19 947
1
#002
50315-KPP-T00ZA
GRIP, Right Rear. NH303M (MAT AXIS GRAY METALLIC)
$39.89¢19 947
1
#3
50325-KPP-T00ZA
GRIP, L Rear. NH303M (MAT AXIS GRAY METALLIC)
$42.76¢21 379
1
#003
50325-KPP-T00ZA
GRIP, L Rear. NH303M (MAT AXIS GRAY METALLIC)
$42.76¢21 379
1
#004
61104-428-000
COLLAR, FR. FENDER
$5.49¢2 743
1
#4
61104-428-000
COLLAR, FR. FENDER
$5.49¢2 743
1
#004
61104-428-010
COLLAR, Front FENDER (WHITE)
$5.49¢2 743
1
#004
61104-428-730
COLLAR, Front FENDER (BLACK)
$4.68¢2 340
1
#005
75581-GN8-920
SPRING, LOCK KEY SETTING
$5.35¢2 674
1
#5
75581-GN8-920
SPRING, LOCK KEY SETTING
$5.35¢2 674
1
#006
77100-KYJ-900
SEAT, SINGLE
$417.32¢208 662
1
#6
77100-KYJ-900
SEAT, SINGLE
$417.32¢208 662
1
#7
77205-286-000
RUBBER B, SEAT SETTING
$5.90¢2 950
1
#007
77205-286-000
RUBBER B, SEAT SETTING
$5.90¢2 950
1
#008
77205-KPP-T00
RUBBER, SEAT SETTING
$2.45¢1 225
1
#8
77205-KPP-T00
RUBBER, SEAT SETTING
$2.45¢1 225
1
#9
77206-KPP-T00
RUBBER, SEAT CUSHION
$3.74¢1 869
1
#009
77206-KPP-T00
RUBBER, SEAT CUSHION
$3.74¢1 869
1
#10
77207-KYJ-900
RUBBER, SEAT CUSHION
$5.15¢2 576
1
#010
77207-KYJ-900
RUBBER, SEAT CUSHION
$5.15¢2 576
1
#011
77220-KYJ-900
LOCK, SEAT
No Disponible
1
#11
77220-KYJ-900
LOCK, SEAT
No Disponible
1
#12
77234-GN2-000
SPRING, SEAT LOCK
$4.38¢2 191
1
#012
77234-GN2-000
SPRING, SEAT LOCK
$4.38¢2 191
1
#13
77239-KVB-900
KEY, SEAT LOCK
$51.35¢25 674
1
#013
77239-KVB-900
KEY, SEAT LOCK
$51.35¢25 674
1
#14
77240-KYJ-900
CABLE, SEAT LOCK
$4.04¢2 018
1
#014
77240-KYJ-900
CABLE, SEAT LOCK
$4.04¢2 018
1
#015
77250-KYJ-900
COVER, SEAT LOCK
$16.34¢8 171
1
#15
77250-KYJ-900
COVER, SEAT LOCK
$16.34¢8 171
1
#016
77300-KYJ-900
SEAT, PILLION
$246.87¢123 435
1
#16
77300-KYJ-900
SEAT, PILLION
$246.87¢123 435
1
#17
77582-KPP-T00
STAY, SEAT LOCK CABLE
$3.51¢1 754
1
#017
77582-KPP-T00
STAY, SEAT LOCK CABLE
$3.51¢1 754
1
#018
94050-06080
NUT, FLANGE (6MM)
$0.74¢368
1
#18
94050-06080
NUT, FLANGE (6MM)
$0.74¢368
1
#19
95701-08020-00
BOLT, FLANGE (8X20)
$2.21¢1 104
1
#019
95701-08020-00
BOLT, FLANGE (8X20)
$2.21¢1 104
1
#20
96600-06025-08
BOLT, SOCKET (6X25)
$1.64¢822
1
#020
96600-06025-08
BOLT, SOCKET (6X25)
$1.64¢822
1
