HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

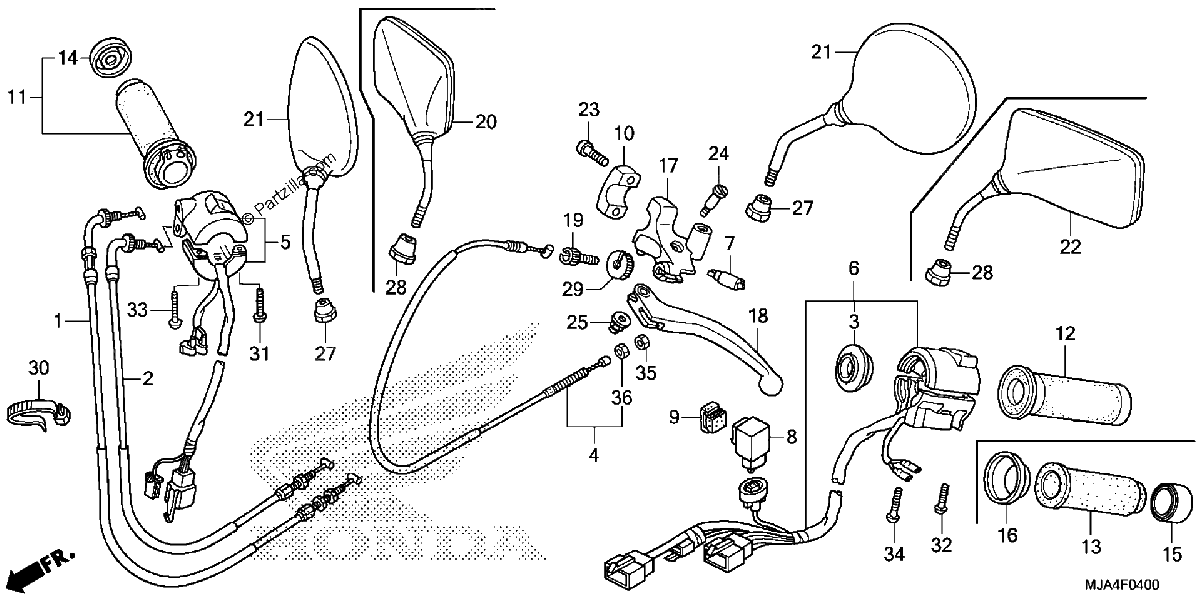

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#1
17910-MFE-640
CABLE A, THROTTLE
$32.07¢16 037
1
#001
17910-MFE-640
CABLE A, THROTTLE
$32.07¢16 037
1
#2
17920-MFE-640
CABLE B, THROTTLE
$32.08¢16 042
1
#002
17920-MFE-640
CABLE B, THROTTLE
$32.08¢16 042
1
#3
17962-MR1-000
ADAPTER
$20.61¢10 304
1
#003
17962-MR1-000
ADAPTER
$20.61¢10 304
1
#004
22870-MFE-671
CABLE, CLUTCH
$34.76¢17 382
1
#4
22870-MFE-671
CABLE, CLUTCH
$34.76¢17 382
1
#5
35130-MFE-672
SWITCH Assembly., STARTER STOP
$156.99¢78 493
1
#005
35130-MFE-672
SWITCH Assembly., STARTER STOP
$156.99¢78 493
1
#6
35200-MFE-671
SWITCH Assembly., TURN SIGNAL
$145.26¢72 628
1
#006
35200-MFE-671
SWITCH Assembly., TURN SIGNAL
$145.26¢72 628
1
#7
35330-413-003
SWITCH, FR. LEVER (TOYO DENSO)
$23.40¢11 701
1
#007
35330-413-003
SWITCH, FR. LEVER (TOYO DENSO)
$23.40¢11 701
1
#010
45517-MEG-006
HOLDER, MASTER CYLINDER (NISSIN)
$12.30¢6 152
1
#10
45517-MEG-006
HOLDER, MASTER CYLINDER (NISSIN)
$12.30¢6 152
1
#11
53145-MFR-305
GRIP, Right. (COO)
$46.84¢23 420
1
#011
53145-MFR-305
GRIP, Right. (COO)
$46.84¢23 420
1
#011
53145-MM8-000
GRIP, Right.
$46.84¢23 420
1
#012
53166-KCR-000
GRIP, L HANDLE
$39.43¢19 717
1
#12
53166-MFR-305
GRIP, L HANDLE (COO)
$46.39¢23 196
1
#012
53166-MFR-305
GRIP, L HANDLE (COO)
$46.39¢23 196
1
#14
53167-MM8-000
CAP, GRIP END
$10.07¢5 037
1
#014
53167-MM8-000
CAP, GRIP END
$10.07¢5 037
1
#17
53172-MEG-000
BRACKET, HANDLE LEVER
$33.90¢16 951
1
#017
53172-MEG-000
BRACKET, HANDLE LEVER
$33.90¢16 951
1
#018
53178-MAH-000
LEVER, L HANDLE
$20.84¢10 419
1
#18
53178-MFR-305
LEVER, L. HANDLEBAR (COO)
$20.84¢10 419
1
#018
53178-MFR-305
LEVER, L. HANDLEBAR (COO)
$20.84¢10 419
1
#19
53192-268-000
BOLT, WIRE ADJUSTING
$7.29¢3 645
1
#019
53192-268-000
BOLT, WIRE ADJUSTING
$7.29¢3 645
1
#020
88210-MEA-670
MIRROR, Right.
No Disponible
1
#20
88210-MFY-305
MIRROR ASSY., R. BACK (COO)
No Disponible
1
#020
88210-MFY-305
MIRROR ASSY., R. BACK (COO)
No Disponible
1
#022
88220-MEA-670
MIRROR, Left
No Disponible
1
#022
88220-MFY-305
MIRROR ASSY., L. BACK (COO)
No Disponible
1
#22
88220-MFY-305
MIRROR ASSY., L. BACK (COO)
No Disponible
1
#023
90101-MCL-000
BOLT, SOCKET (6X22)
$1.71¢857
1
#23
90101-MCL-000
BOLT, SOCKET (6X22)
$1.71¢857
1
#024
90113-438-000
BOLT, L HANDLEBAR LEVER PIVOT
$8.46¢4 232
1
#24
90113-438-000
BOLT, L HANDLEBAR LEVER PIVOT
$8.46¢4 232
1
#025
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#25
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#028
90314-375-000
NUT, LOCK
$13.40¢6 699
1
#28
90314-375-000
NUT, LOCK
$13.40¢6 699
1
#29
90321-MA6-750
NUT, FIXING
$11.15¢5 577
1
#029
90321-MA6-750
NUT, FIXING
$11.15¢5 577
1
#30
90620-SB2-003
BAND, WIRE HARNESS
$29.19¢14 593
1
#030
90620-SB2-003
BAND, WIRE HARNESS
$29.19¢14 593
1
#31
93500-05020-0A
SCREW, PAN (5X20)
$0.93¢466
1
#031
93500-05020-0A
SCREW, PAN (5X20)
$0.93¢466
1
#032
93500-05022-0A
SCREW, PAN (5X22)
$0.79¢397
1
#32
93500-05022-0A
SCREW, PAN (5X22)
$0.79¢397
1
#033
93500-05025-0A
SCREW, PAN (5X25)
$1.12¢558
1
#33
93500-05025-0A
SCREW, PAN (5X25)
$1.12¢558
1
#34
93500-05032-0A
SCREW, PAN (5X32)
$1.30¢650
1
#034
93500-05032-0A
SCREW, PAN (5X32)
$1.30¢650
1
#35
94002-08070-0S
NUT, HEX. (8MM)
$1.54¢771
1
#035
94002-08070-0S
NUT, HEX. (8MM)
$1.54¢771
1
#36
94030-08070
NUT, HEX. (8MM)
$0.56¢282
1
#036
94030-08070
NUT, HEX. (8MM)
$0.56¢282
1
