STARTING MOTOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

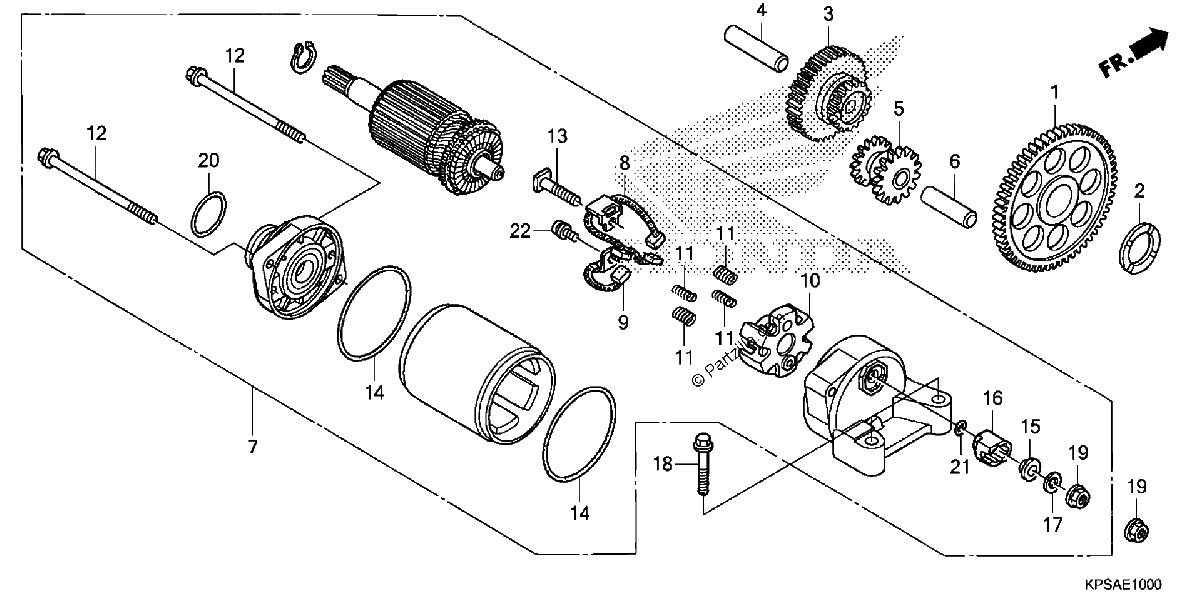

Diagrama de STARTING MOTOR

Repuestos

#1
28110-KBB-900
GEAR, STARTER DRIVEN (56T)
$119.16¢59 581
1
#2
28114-KN6-930
COLLAR, STARTING DRIVEN GEAR
$32.25¢16 125
1
#3
28130-KFB-000
GEAR, REDUCTION (16T/61T)
$83.59¢41 794
1
#4
28132-KN6-930
SHAFT, REDUCTION GEAR
$14.06¢7 031
1
#5
28140-KPS-900
GEAR, IDLE (16T/16T)
$90.25¢45 125
1
#6
28142-KW1-900
SHAFT, IDLE GEAR
$100.55¢50 275
1
#7
31200-KPS-A11
STARTER MOTOR ASSY. (MITSUBA)
$481.90¢240 950
1
#8
31201-MEW-921
BRUSH SET A, CARBON
$9.44¢4 719
1
#9
31202-MEW-921
BRUSH SET B, CARBON
$15.20¢7 600
1
#10
31203-MEW-921
HOLDER, BRUSH
$9.07¢4 538
1
#11
31204-MEW-921
SPRING, CARBON BRUSH
$14.76¢7 381
1
#12
31205-HP5-601
BOLT, SETTING
$3.55¢1 775
1
#13
31206-MEW-921
BOLT, TERMINAL
$3.65¢1 825
1
#14
31207-HP5-601
RING
$2.76¢1 381
1
#15
31208-MEW-921
INSULATOR
$9.86¢4 931
1
#16
31209-MEW-921
STOPPER, TERMINAL
$14.63¢7 313
1
#17
31210-MEW-921
WASHER
$2.34¢1 169
1
#18
90036-GHR-730
BOLT, FLANGE (6X32)
$1.25¢625
1
#19
90071-MB0-000
NUT-WASHER (6MM)
$2.66¢1 331
1
#20
91309-425-003
O-RING (24.4X3.1) (ARAI)
$7.56¢3 781
1
#20
91312-MG7-003
O-RING (24.4X3.1)
$7.56¢3 781
1
#21
91320-MB0-000
O-RING (4X2)
$3.11¢1 556
1
#22
93892-05012-08
SCREW-WASHER (5X12)
$1.47¢737
1
