RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

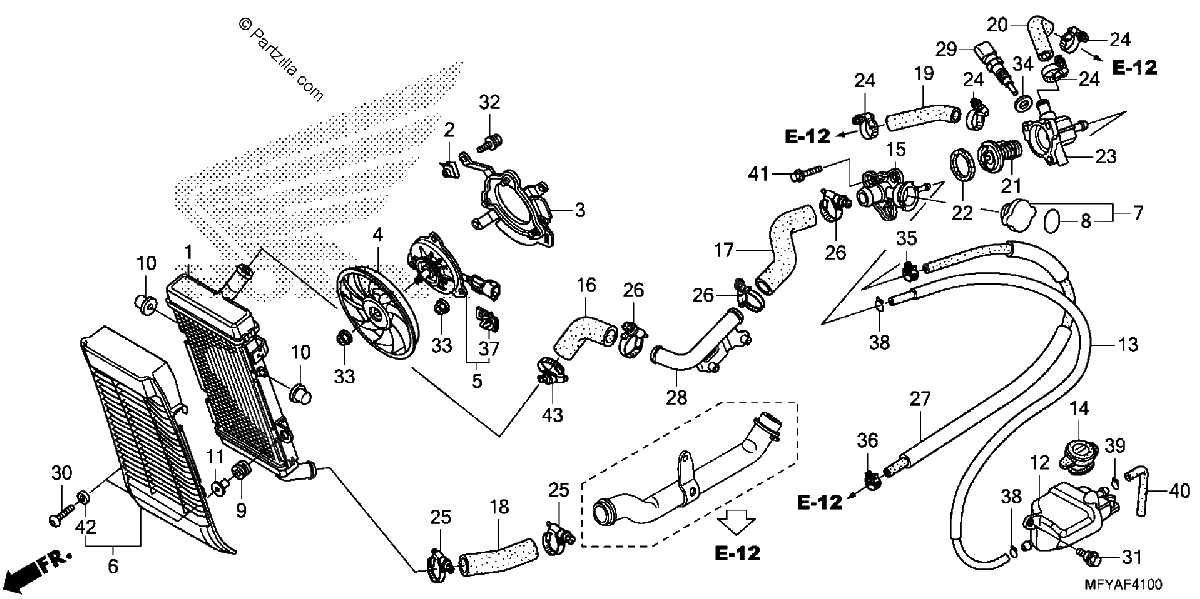

Diagrama de RADIATOR

Repuestos

#1
19010-MFY-305
RADIATOR (COO)
$895.96¢447 981
1
#2
19014-KEA-003
NUT, SETTING (6MM)
$3.75¢1 875
1
#3
19015-MFY-305
SHROUD (COO)
$105.47¢52 738
1
#4
19020-MCH-A11
FAN, COOLING
$22.52¢11 263
1
#5
19030-MFR-671
MOTOR ASSY., FAN
$365.26¢182 631
1
#6
19032-MFY-A00
GRILLE, RADIATOR
$90.09¢45 044
1
#7
19037-GEE-710
CAP, RADIATOR
$35.16¢17 581
1
#8
19046-PAA-A00
LABEL, RADIATOR CAP
$3.65¢1 825
1
#9
19051-KA3-830
RUBBER, RADIATOR MOUNTING
$4.01¢2 006
1
#10
19051-MB2-000
RUBBER, RADIATOR MOUNTING
$5.47¢2 738
1
#11
19052-MN8-000
COLLAR, RADIATOR MOUNTING
$3.20¢1 600
1
#11
19052-MGH-640
COLLAR, RADIATOR MOUNTING
$3.20¢1 600
1
#12
19101-MFR-670
TANK, RADIATOR RESERVE
$52.98¢26 488
1
#12
19101-MFY-305
TANK, RADIATOR RESERVE (COO)
$52.98¢26 488
1
#13
19102-MFR-670
TUBE, RADIATOR RESERVE TANK
$24.20¢12 100
1
#14
19104-MB0-700
CAP, RESERVE TANK
$14.13¢7 063
1
#15
19106-MFR-671
NECK ASSY., FILLER
$92.89¢46 444
1
#16
19115-MFY-A00
HOSE A, RADIATOR (UPPER)
$22.30¢11 150
1
#17
19116-MFR-670
HOSE B, RADIATOR (UPPER)
$28.61¢14 306
1
#18
19117-MFY-A00
HOSE, RADIATOR (LOWER)
$15.41¢7 706
1
#19
19118-MFR-670
HOSE, FR. OUTLET WATER
$10.82¢5 413
1
#20
19119-MFR-670
HOSE, RR. OUTLET WATER
$10.82¢5 413
1
#21
19300-MCH-A00
THERMOSTAT ASSY.
$55.46¢27 731
1
#22
19305-KV3-010
RUBBER, THERMOSTAT
$7.35¢3 675
1
#23
19311-MFR-670
CASE, THERMOSTAT
$115.96¢57 981
1
#24
19506-KS6-700
CLAMP B, WATER HOSE
$9.10¢4 550
1
#25
19509-MM5-003
CLAMP, RADIATOR HOSE
$15.88¢7 938
1
#26
19516-GAG-003
CLAMP, HOSE (30-37MM)
$16.15¢8 075
1
#27
19531-MFR-A00
HOSE, BYPASS
$31.05¢15 525
1
#28
19570-MFR-670
PIPE D, WATER
$39.84¢19 919
1
#29
37870-KRJ-901
SENSOR ASSY., WATER TEMPERATURE
$35.96¢17 981
1
#30
90105-MFY-A00
SCREW, PAN (6X28) (G)
$4.61¢2 306
1
#31
90113-GF0-000
BOLT, FLANGE (6MM)
$5.13¢2 563
1
#32
90120-GHB-611
BOLT-WASHER (6X14)
$3.44¢1 719
1
#33
90315-MK3-003
NUT, SERRATE (5MM)
$2.99¢1 494
1
#34
90454-MC7-000
WASHER, SPECIAL (12MM)
$3.36¢1 681
1
#35
90652-MBB-D41
CLAMP, TUBE (17.5)
$2.60¢1 300
1
#36
91405-PD1-004
CLAMP, TUBE (D12)
$10.50¢5 250
1
#37
91565-SEL-003
CLIP, CONNECTOR (BLACK)
$4.45¢2 225
1
#38
95002-02120
CLIP, TUBE (B12)
$2.39¢1 194
1
#39
95002-70000
CLIP, TUBE (C11)
$2.11¢1 056
1
#40
95005-70003-30M
BULK HOSE, VACUUM (7X3000) OEM CUT SIZE: (7X200)
$27.41¢13 706
1
#41
95701-06018-08
BOLT, FLANGE (6X18)
$2.09¢1 044
1
#42
50605-GZ4-670
COLLAR, STEP RUBBER SETTING
$4.41¢2 206
1
#43
19516-MER-D10
CLAMP, HOSE
$9.86¢4 931
1
