TRANSMISSION VFR1200F

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

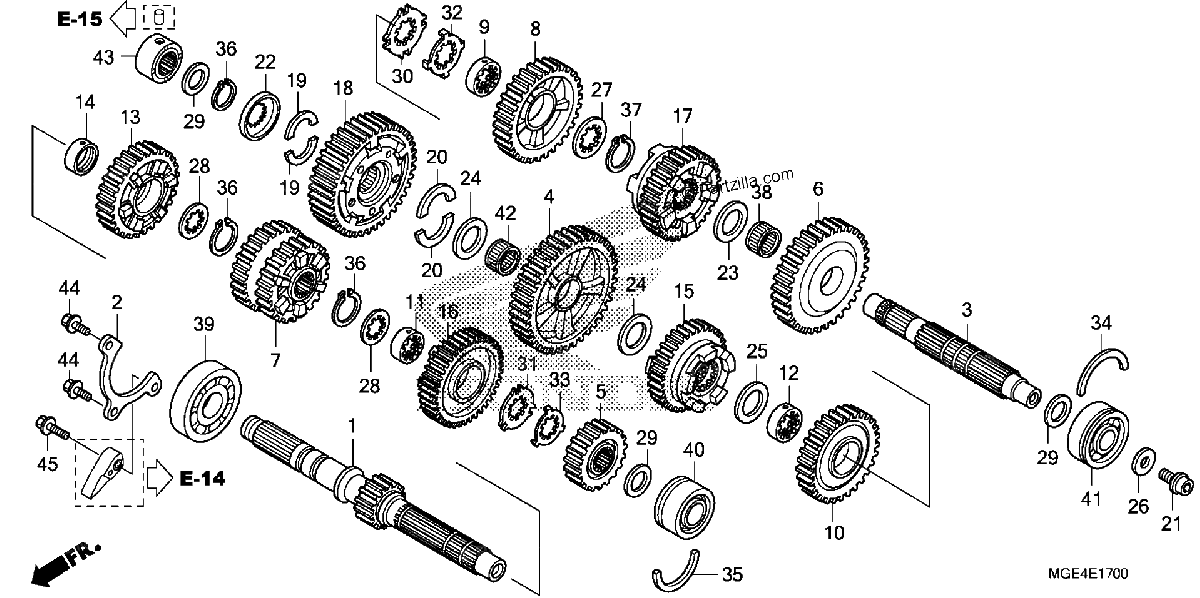

Diagrama de TRANSMISSION VFR1200F

Repuestos

#1
23210-MGE-010
MAINSHAFT (15T)
$236.00¢118 000
1
#2
23213-MGE-000
PLATE, BEARING SETTING
$6.60¢3 300
1
#3
23221-MGE-010
COUNTERSHAFT
$221.31¢110 656
1
#4
23421-MGE-010
GEAR, COUNTERSHAFT FIRST (39T)
$165.67¢82 837
1
#5
23431-MGE-000
GEAR, MAINSHAFT SECOND (19T)
$80.78¢40 388
1
#6
23441-MGE-010
GEAR, COUNTERSHAFT SECOND (33T)
$160.29¢80 144
1
#7
23451-MGE-010
GEAR, MAINSHAFT THIRD & FOURTH(22T/25T)
$193.08¢96 538
1
#8
23461-MGE-000
GEAR, COUNTERSHAFT THIRD (30T)
$160.29¢80 144
1
#9
23462-MGE-000
COLLAR, SPLINE (30X12)
$17.11¢8 556
1
#10
23481-MGE-000
GEAR, COUNTERSHAFT FOURTH (29T)
$160.29¢80 144
1
#11
23482-MCJ-000
COLLAR, SPLINE (28X16)
$25.88¢12 938
1
#12
23482-MGE-000
COLLAR (30X33X12)
$13.61¢6 806
1
#13
23491-MGE-000
GEAR, MAINSHAFT FIFTH (31T)
$162.89¢81 444
1
#14
23495-MM5-000
COLLAR (28X13)
$29.61¢14 806
1
#15
23501-MGE-010
GEAR, COUNTERSHAFT FIFTH (32T)
$179.39¢89 694
1
#16
23511-MGE-010
GEAR, MAINSHAFT SIXTH (33T)
$162.89¢81 444
1
#17
23521-MGE-010
GEAR, COUNTERSHAFT SIXTH (31T)
$179.39¢89 694
1
#18
23530-MGH-640
GEAR, FINAL DRIVE (39T)
$417.25¢208 625
1
#19
23545-MGE-000
COTTER, COUNTERSHAFT
$7.21¢3 606
1
#20
23546-MGE-010
COTTER B, COUNTERSHAFT
$7.21¢3 606
1
#21
90037-ME9-000
BOLT, SPECIAL (10MM)
$9.32¢4 663
1
#22
90402-MGE-010
RETAINER, COUNTERSHAFT
$9.78¢4 888
1
#23
90407-415-000
WASHER, THRUST (26MM)
$7.25¢3 625
1
#24
90409-MGE-000
WASHER (30.6X40X1)
$3.79¢1 894
1
#25
90410-MGE-000
WASHER (30.2X36X1.5)
$4.24¢2 119
1
#26
90412-MGE-000
WASHER (10.5X31.8X3.2)
$4.65¢2 325
1
#27
90452-MAT-000
WASHER, SPLINE (30X36X1.5)
$4.24¢2 119
1
#28
90452-MR7-000
WASHER, SPLINE (28X34X1.5)
$8.15¢4 075
1
#29
90455-ML7-000
WASHER B, THRUST (22MM) (BLUE)
$5.90¢2 950
1
#30
90463-MAT-000
WASHER, SPLINE (30MM)
$5.88¢2 938
1
#31
90463-MR7-000
WASHER, SPLINE (28MM)
$13.61¢6 806
1
#32
90464-MAT-000
WASHER, LOCK (30MM)
$8.65¢4 325
1
#33
90464-MR7-000
WASHER, LOCK (28MM)
$13.61¢6 806
1
#34
90601-MA6-000
RING, BEARING SETTING (56MM)
$3.65¢1 825
1
#35
90602-MGE-000
SET-RING (48MM)
$7.08¢3 538
1
#36
90602-MM5-000
CIRCLIP (28MM)
$4.54¢2 269
1
#36
90603-MN4-000
CIRCLIP (28MM)
$4.54¢2 269
1
#37
90604-MM5-000
CIRCLIP (30MM)
$5.42¢2 713
1
#38
91001-MCH-003
BEARING, NEEDLE (26X30X13)
$14.24¢7 119
1
#39
91001-MGE-003
BEARING, SPECIAL BALL (28X76X18)
$38.40¢19 200
1
#40
91002-MGE-003
BEARING, SPECIAL BALL (5204S)
$30.02¢15 013
1
#41
91003-MGE-003
BEARING, SPECIAL BALL (22X56X21.5)
$39.14¢19 569
1
#42
91006-MGE-003
BEARING, NEEDLE (30X35X13)
$16.31¢8 156
1
#43
91025-MBT-F21
BEARING, NEEDLE (22X38X19.3)
$37.95¢18 975
1
#44
95701-06020-00
BOLT, FLANGE (6X20)
$2.27¢1 138
1
#45
95801-06028-00
BOLT, FLANGE (6X28)
$2.34¢1 169
1
