CLUTCH MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

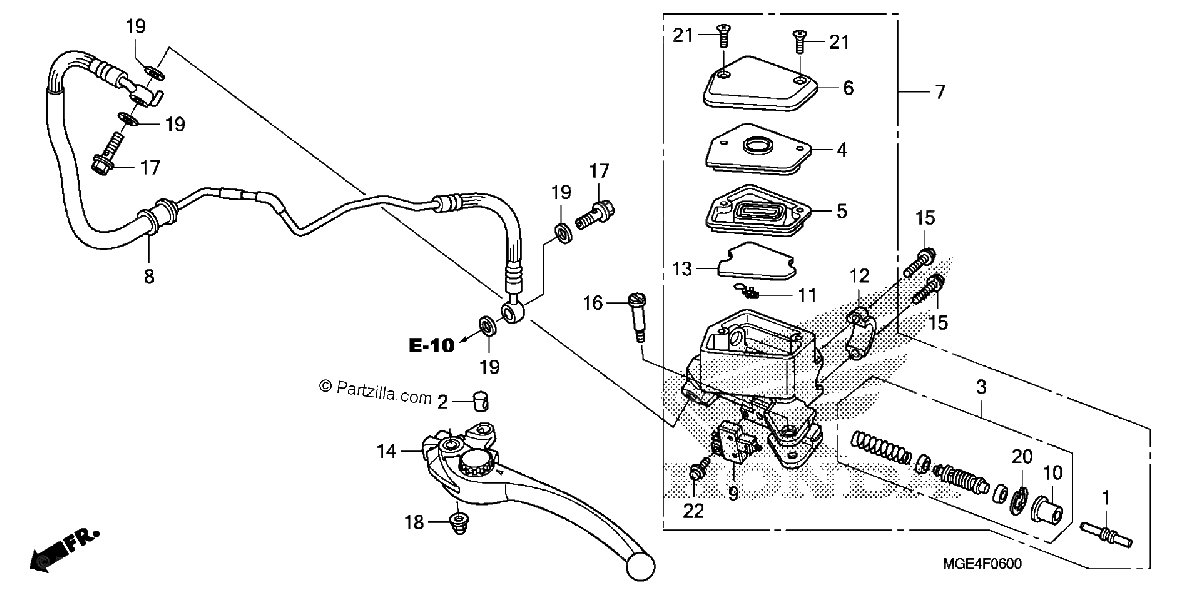

Diagrama de CLUTCH MASTER CYLINDER

Repuestos

#1
22884-MAT-E01
ROD, PUSH
$20.85¢10 425
1
#2
22885-MB0-006
BUSH
$13.94¢6 969
1
#3
22886-MAT-E01
PISTON SET, MASTER CYLINDER
$60.93¢30 463
1
#4
22887-MGE-006
PLATE, DIAPHRAGM
$9.35¢4 675
1
#5
22888-MGE-006
DIAPHRAGM
$15.59¢7 797
1
#6
22889-MGE-006
CAP, MASTER CYLINDER
$40.43¢20 217
1
#7
22890-MGE-305
MASTER CYLINDER SUB-Assembly., CLUTCH (COO)
$453.57¢226 786
1
#8
22900-MGE-003
PIPE, CLUTCH
$250.58¢125 292
1
#9
35330-MB0-003
SWITCH ASSY., CLUTCH
$19.45¢9 723
1
#10
45504-MAT-E01
BOOT
$11.37¢5 687
1
#11
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#12
45517-166-006
HOLDER, MASTER CYLINDER
$14.48¢7 239
1
#13
45523-MGE-006
FLOAT, Front MASTER CYLINDER
$6.90¢3 450
1
#14
53180-MEJ-305
LEVER ASSY., L. HANDLE (COO)
$54.33¢27 163
1
#15
90010-GHB-660
BOLT, FLANGE (6X22)
$1.47¢736
1
#15
96001-06022-00
BOLT, FLANGE (6X22)
$1.47¢736
1
#16
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
1
#17
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#18
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#19
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#20
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#21
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#21
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#22
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#22
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
