FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

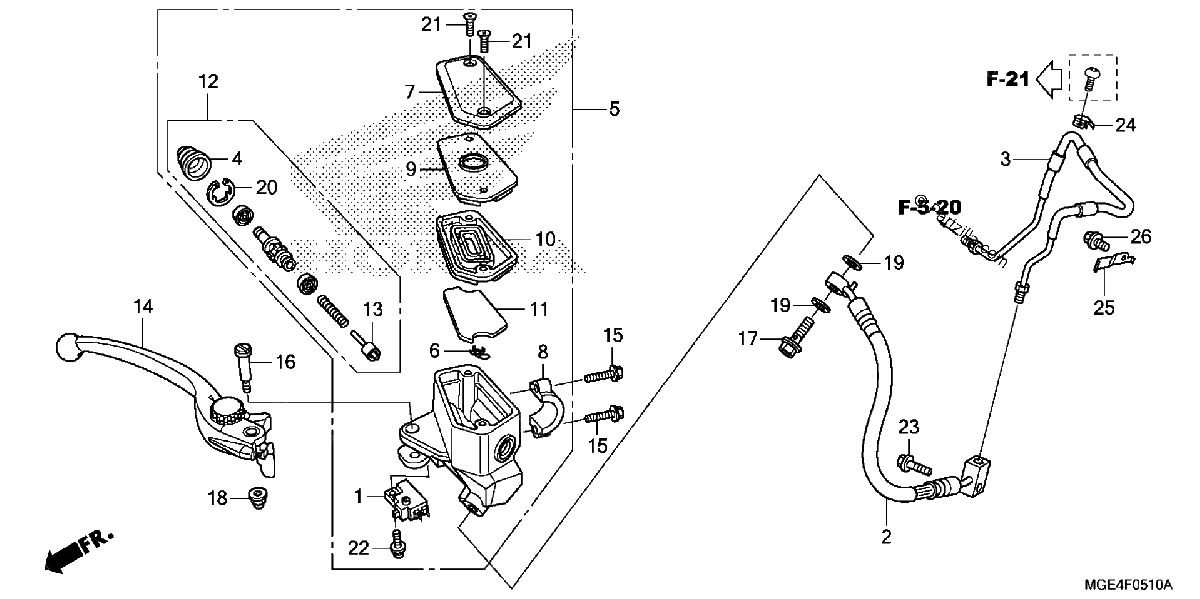

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#1
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
1
#2
45123-MGE-003
HOSE A, Front BRAKE
$53.01¢26 506
1
#3
45125-MGE-D40
PIPE A, FR. BRAKE
$27.09¢13 544
1
#4
45504-MCF-006
BOOT
$15.29¢7 644
1
#5
45510-MGE-305
MASTER CYLINDER SUB-Assembly., Front.(COO)
$515.23¢257 613
1
#6
45512-MA6-006
PROTECTOR
$5.20¢2 600
1
#7
45513-MGE-006
CAP, MASTER CYLINDER
$45.09¢22 544
1
#8
45517-166-006
HOLDER, MASTER CYLINDER
$15.74¢7 869
1
#9
45518-MGE-006
PLATE, DIAPHRAGM
$10.38¢5 188
1
#10
45520-MGE-006
DIAPHRAGM
$19.51¢9 756
1
#11
45523-MGE-006
FLOAT, Front MASTER CYLINDER
$7.50¢3 750
1
#12
45530-MGE-006
MASTER CYLINDER SET
$55.26¢27 631
1
#13
46140-MGE-006
GUIDE, SPRING
$6.19¢3 094
1
#14
53170-MGE-305
LEVER SET, Right HANDLE (COO)
$78.88¢39 438
1
#15
90010-GHB-660
BOLT, FLANGE (6X22)
$1.60¢800
1
#15
96001-06022-00
BOLT, FLANGE (6X22)
$1.60¢800
1
#16
90114-MCF-006
BOLT, HANDLE LEVER
$7.05¢3 525
1
#17
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#18
90201-415-000
NUT, CAP (6MM)
$2.76¢1 381
1
#19
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#20
90651-MCF-006
CIRCLIP
$2.91¢1 456
1
#21
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#21
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#22
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#22
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#23
96001-06025-07
BOLT, FLANGE (6X25)
$1.72¢862
1
#24
45166-MGE-D40
CLAMP, FR. BRAKE PIPE
$9.80¢4 900
1
#25
45167-MGE-D40
CLAMP B, FR. BRAKE PIPE
$7.88¢3 938
1
#26
96001-06010-07
BOLT, FLANGE (6X10)
$2.09¢1 044
1
