CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

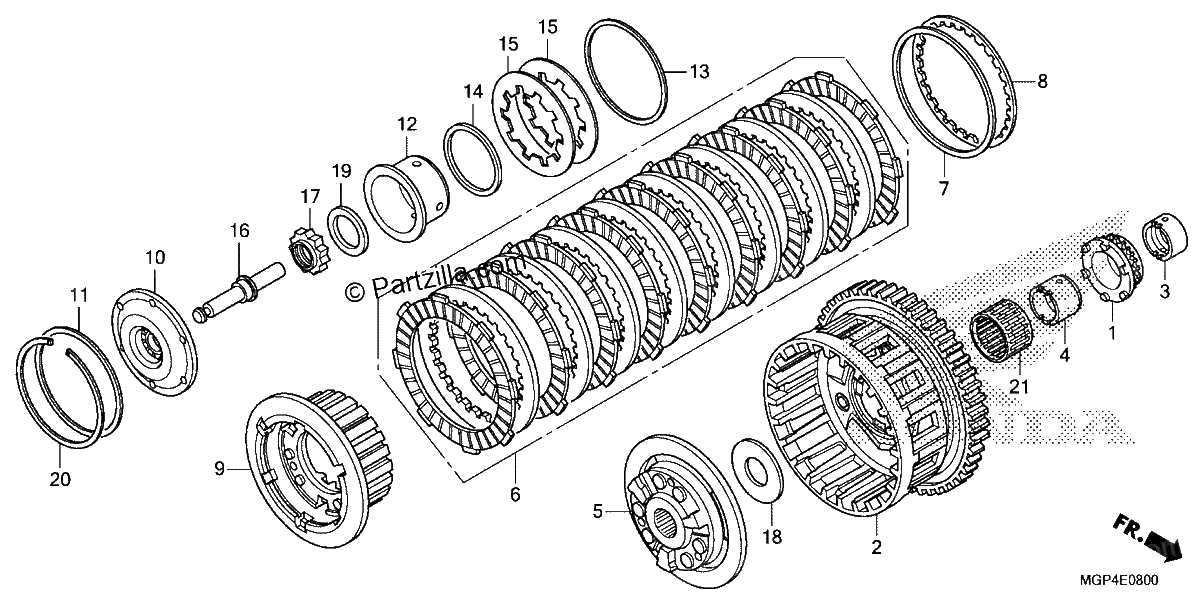

Diagrama de CLUTCH

Repuestos

#001
15131-MEL-003
SPROCKET, OIL PUMP DRIVE (26T)
$72.89¢36 444
1
#002
22100-MFL-880
CLUTCH OUTER A (BLUE)
$384.61¢192 303
1
#002
22110-MFL-880
CLUTCH OUTER B (YELLOW)
$384.61¢192 303
1
#002
22115-MFL-880
CLUTCH OUTER C (GREEN)
$408.01¢204 004
1
#003
22116-MEL-000
COLLAR, OIL PUMP SPROCKET
$19.57¢9 786
1
#004
22117-MFL-880
GUIDE A, CLUTCH (OUTER) (2MM HOLE X2)
$22.11¢11 057
1
#004
22118-MFL-880
GUIDE B, CLUTCH (OUTER) (2MM HOLE X3)
$23.11¢11 558
1
#004
22119-MFL-880
GUIDE C, CLUTCH (OUTER) (2MM HOLE X4)
$22.11¢11 057
1
#005
22120-MFL-880
CENTER, CLUTCH
$266.89¢133 446
1
#006
22210-MFL-880
DISK SET, CLUTCH
$206.93¢103 465
1
#007
22325-MFL-950
SPRING, CLUTCH PLATE
$12.06¢6 032
1
#008
22326-MFL-950
SEAT, JUDDER SPRING
$11.99¢5 997
1
#009
22350-MFL-880
PLATE, CLUTCH PRESSURE
$292.87¢146 435
1
#010
22354-MFL-000
LIFTER, CLUTCH
$65.25¢32 625
1
#011
22356-MFL-000
SEAT, CLUTCH LIFTER
$15.65¢7 826
1
#012
22365-MFL-000
HOLDER, CLUTCH SPRING
$46.86¢23 431
1
#013
22366-MFL-000
SEAT, CLUTCH SPRING
$14.70¢7 348
1
#014
22368-MFL-000
SEAT B, CLUTCH SPRING
$10.71¢5 353
1
#015
22401-MFL-950
SPRING, CLUTCH
$10.97¢5 485
1
#016
22847-MFL-000
PIN, CLUTCH LIFTER
$28.57¢14 283
1
#017
90231-MS2-610
NUT, LOCK (25MM)
$20.06¢10 028
1
#018
90401-MS2-610
WASHER, THRUST (28.2X56X2)
$18.79¢9 395
1
#019
90407-MFL-000
WASHER (25.1X37X3.2)
$4.62¢2 311
1
#020
90601-MFL-000
CIRCLIP (INNER) (102)
$6.72¢3 358
1
#021
91101-MFL-881
BEARING A, NEEDLE (35X41X27.8) (RED)
$10.74¢5 371
1
#021
91102-MFL-881
BEARING B, NEEDLE (35X41X27.8) (WHITE)
$9.20¢4 600
1
#021
91103-MFL-881
BEARING C, NEEDLE (35X41X27.8) (GREEN)
$10.27¢5 135
1
