FRONT FORK 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

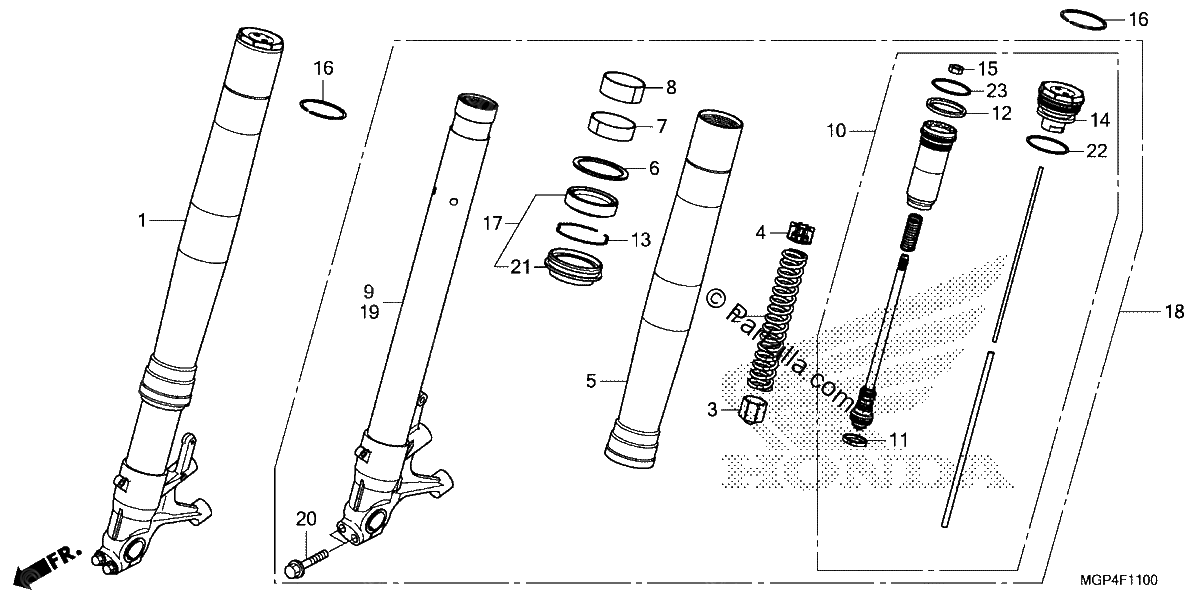

Diagrama de FRONT FORK 1

Repuestos

#001
51400-MGP-306
FORK Assembly., Right Front. (COO) (SHOWA)
$1798.69¢899 344
1
#002
51401-MGP-D01
SPRING, FR. FORK
$120.55¢60 275
1
#003
51403-MGP-D01
COLLAR, SPRING
$15.45¢7 725
1
#004
51404-MGP-D01
COLLAR B, SPRING
$11.83¢5 913
1
#005
51410-MGP-305
TUBE (OUTER) (COO)
$694.88¢347 438
1
#005
51410-MGP-D01
TUBE (OUTER)
$694.88¢347 438
1
#006
51412-MEL-003
RING, BACK-UP
$6.79¢3 394
1
#007
51414-MFN-D01
BUSH, GUIDE
$8.58¢4 288
1
#008
51415-MGP-D01
BUSH, SLIDER
$17.22¢8 612
1
#009
51425-MGP-D11
PIPE, Right SLIDE
$573.40¢286 700
1
#010
51430-MGP-D01
ROD, PISTON
$970.86¢485 431
1
#011
51437-MGP-D01
RING, PISTON
$9.91¢4 956
1
#012
51438-MGP-D01
RING B, PISTON
$7.40¢3 700
1
#013
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#014
51450-MGP-D01
BOLT, Front FORK
$140.76¢70 381
1
#015
51451-MGP-D01
NUT, HEX.
$2.46¢1 231
1
#016
51455-MW4-003
RING, STOPPER
$14.26¢7 131
1
#017
51490-MFL-003
SEAL SET, FR. FORK
$23.21¢11 606
1
#018
51500-MGP-305
FORK Assembly., L Front. (COO) (SHOWA)
No Disponible
1
#018
51500-MGP-D01
FORK Assembly., L Front. (SHOWA)
No Disponible
1
#019
51525-MGP-D01
PIPE, L SLIDE
$573.40¢286 700
1
#020
90109-MR7-000
BOLT, FLANGE (8X45)
$5.99¢2 994
1
#021
91254-MEJ-003
DUST SEAL
$15.00¢7 500
1
#021
91254-MEJ-013
DUST SEAL
$15.00¢7 500
1
#022
91258-GF4-003
O-RING (42.2X2.4)
$7.16¢3 581
1
#023
91258-MGP-D01
O-RING (39.5X1.8)
$4.86¢2 431
1
