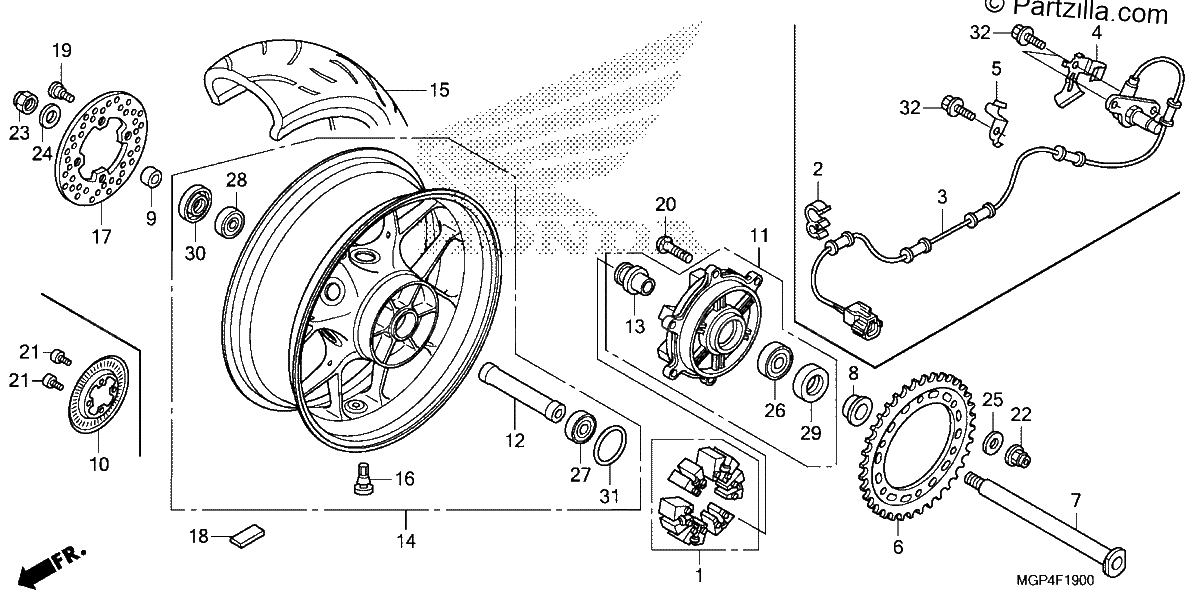

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$64.04¢32 019
#002
CLAMP, PIPE
$8.64¢4 319
#003
SENSOR, RR. WHEEL SPEED
$249.86¢124 931
#004
GUIDE, SENSOR WIRE
$15.19¢7 594
#005
GUIDE, SENSOR WIRE
$11.06¢5 531
#006
SPROCKET, FINAL DRIVEN (42T)
$142.54¢71 269
#007
AXLE, RR. WHEEL
$92.41¢46 206
#008
COLLAR, RR. WHEEL SIDE
$28.98¢14 488
#009
COLLAR, RR. BRAKE SIDE
$15.43¢7 713
#010
RING, RR. PULSER
$68.27¢34 137
#011
FLANGE SUB-ASSY., RR. DRIVEN
$246.79¢123 394
#012
COLLAR, RR. AXLE DISTANCE
$50.60¢25 300
#013
COLLAR B, RR. WHEEL DISTANCE
$35.70¢17 850
#014
WHEEL SUB-Assembly., Rear. NH1 (COO)(BLACK)
$1465.67¢732 838
#015
TIRE, RR. (190/50ZR17) (M/C 73W) (BS)
No Disponible
#015
TIRE, Rear. (190/50ZR17) (M/C 73W) (DUNLOP) (NOT AVAILABLE)
No Disponible
#015
TIRE, Rear. (190/50ZR17) (M/C 73W) (BS)
$285.38¢142 688
#016
VALVE, RIM (BS)
$14.79¢7 394
#016
VALVE, RIM (DUNLOP)
$14.79¢7 394
#017
DISK, RR. BRAKE
$266.96¢133 481
#018
WEIGHT, BALANCE (10G)
$5.67¢2 838
#018
WEIGHT, BALANCE (15G)
$6.76¢3 381
#018
WEIGHT, BALANCE (20G)
$6.76¢3 381
#019
BOLT, BRAKE DISK (8X24)
$4.86¢2 431
#020
BOLT (10X30)
$3.65¢1 825
#021
BOLT, TORX (5X10)
$3.65¢1 825
#022
NUT, U (10MM)
$5.25¢2 625
#023
NUT, U (22MM)
$9.32¢4 663
#023
NUT, U (22MM)
$9.32¢4 663
#024
WASHER (23X37X2.5)
$6.13¢3 063
#025
WASHER (10MM)
$3.61¢1 806
#026
BEARING, ANGULAR BALL (28X56X15)
$46.56¢23 281
#027
BEARING, RADIAL BALL (6005)
$17.43¢8 713
#028
BEARING, RADIAL BALL (6205X2)
$20.06¢10 031
#029
DUST SEAL (35X56X7.5)
$9.61¢4 806
#030
DUST SEAL (35X57X7.5)
$8.73¢4 363
#031
O-RING (51X2)
$4.58¢2 288
#032
BOLT, FLANGE (6X14)
$1.54¢769
