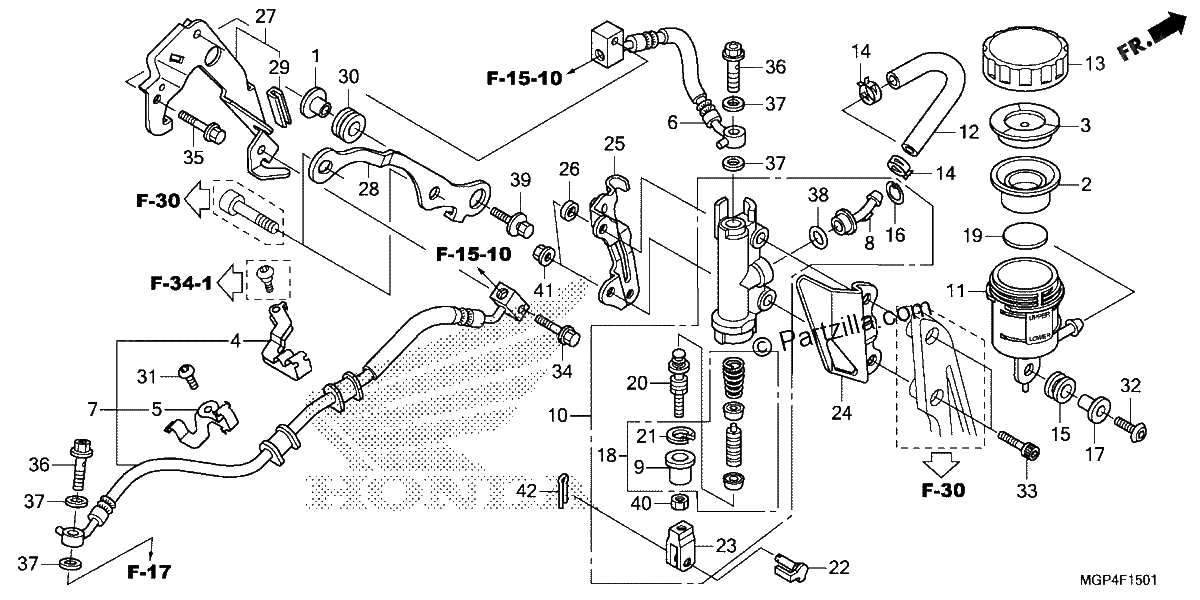

REAR BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COLLAR, FUEL TANK SETTING
$7.49¢3 743
#002
DIAPHRAGM
$16.21¢8 108
#003
PLATE, DIAPHRAGM
$12.54¢6 268
#004
CLAMP, RR. BRAKE HOSE
$10.46¢5 232
#005
CLAMP B, RR. BRAKE HOSE
$4.58¢2 289
#006
HOSE A, RR. BRAKE
$46.60¢23 299
#007
HOSE B, RR. BRAKE
$72.32¢36 162
#008
CONNECTOR, MASTER CYLINDER
$4.96¢2 478
#009
BOOT
$10.80¢5 399
#010
MASTER CYLINDER SUB-ASSY., RR. (COO) (NISSIN)
$219.21¢109 607
#010
MASTER CYLINDER SUB-ASSY., RR. (NISSIN)
$219.21¢109 607
#011
CUP, OIL
$24.77¢12 385
#012
HOSE, RR. MASTER CYLINDER
$13.12¢6 561
#013
CAP, OIL CUP
$47.13¢23 563
#014
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
#015
RUBBER, OIL CUP MOUNTING
$4.99¢2 496
#016
CIRCLIP, Rear MASTER CYLINDER
$4.25¢2 128
#017
COLLAR (6.3X14)
$4.36¢2 179
#018
PISTON SET, MASTER CYLINDER (NISSIN)
$49.67¢24 834
#019
FLOAT
$3.71¢1 857
#020
ROD, PUSH
$32.80¢16 399
#021
CIRCLIP
$2.30¢1 150
#022
PIN, BRAKE ROD
$15.71¢7 855
#023
JOINT, BRAKE ROD
$15.55¢7 774
#024
GUARD, R. STEP
$35.27¢17 635
#025
STAY, STEP HEAT GUARD
$13.63¢6 814
#026
COLLAR (6.5X11X3)
$3.36¢1 679
#027
STAY A, RR. BRAKE PIPE
$17.43¢8 717
#028
STAY B, RR. BRAKE PIPE
$5.54¢2 772
#029
RUBBER, PROTECTOR
$2.06¢1 029
#030
RUBBER, RR. FENDER CUSHION
$2.42¢1 208
#031
SCREW, PAN (5X15)
$2.64¢1 322
#032
BOLT, SPECIAL (6X25)
$2.64¢1 322
#033
BOLT, SOCKET (6X32)
$2.51¢1 254
#034
BOLT, FLANGE (6X25)
$2.96¢1 478
#035
BOLT, FLANGE (6X20)
$2.75¢1 374
#036
BOLT, OIL (10X22)
$8.18¢4 088
#037
WASHER, OIL BOLT
$4.46¢2 231
#038
O-RING (14.8X2.4)
$3.04¢1 518
#039
BOLT-WASHER (6X20)
$1.92¢960
#040
NUT, HEX. (8MM)
$1.47¢736
#041
NUT, FLANGE (6MM)
$0.74¢368
#042
PIN, SPLIT (2.0X15)
$1.23¢615
